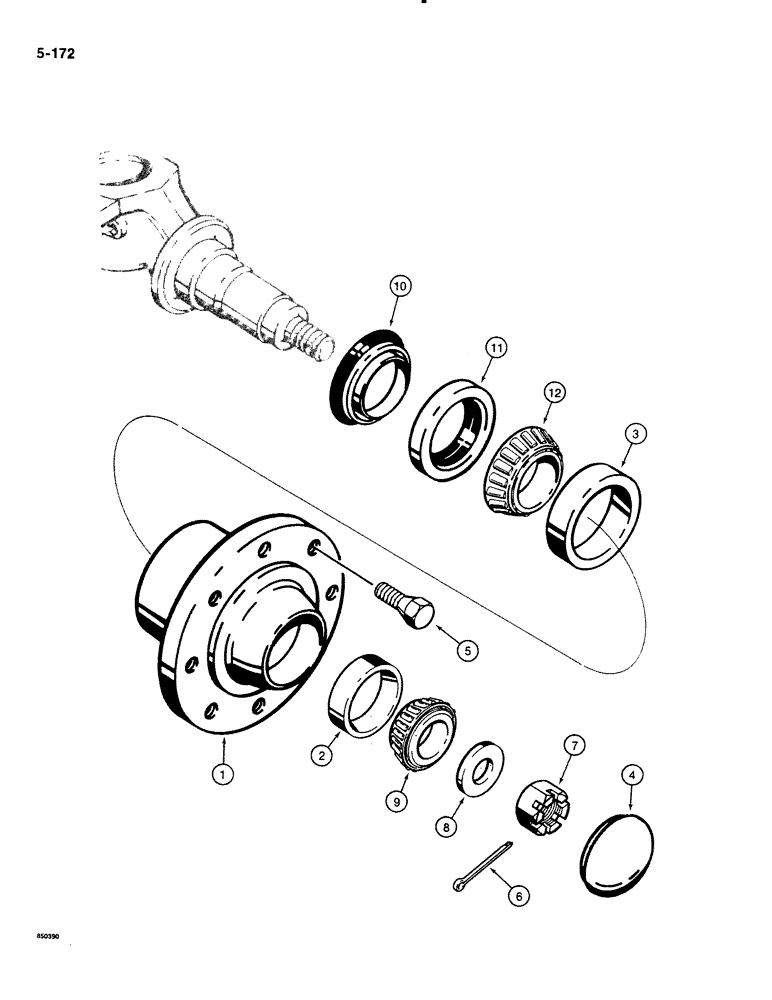

Запчасти Case 580K (05-172) - FRONT WHEEL HUB AND BEARINGS (05) - STEERING

A66759

HUB

ASSEMBLY front wheel, Includes: Ref. 1 thru 3

2шт.

1

NSS

NOT SOLD SEPARAT

HUB front wheel

1шт.

2

619387R1

BEARING CUP

CUP outer, tapered roller bearing

1шт.

Part of Wheel Bearing Kit P/N D103157

1шт.

3

625743C1

BEARING CUP,90mm OD x 18.5mm W

CUP inner, tapered roller bearing

1шт.

Part of Wheel Bearing Kit P/N D103157

1шт.

4

A61450

BEARING CAP,3.155" ID x 3.41" OD x 1.38"

CAP hub

2шт.

5

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

Retaining, See Figure 05-174 for bolt or nut options

16шт.

6

132-317

COTTER PIN,3/16" x 2"

PIN, SPLIT (COTTER), 3/16" x 2"

2шт.

7

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT hex, slotted, thick, 1-1/8"-12 NF

2шт.

8

D74949

WASHER,28.96mm ID x 60.45mm OD x 4.88mm Thk

flat, 1-1/8"

2шт.

9

G15215

ROLLER BEARING

BEARING tapered roller, outer

2шт.

Part of Wheel Bearing Kit P/N D103157

1шт.

10

A61449

SEAL,64.97mm ID x 94.67mm OD x 12.45mm Thk

spindle

2шт.

Part of Wheel Bearing Kit P/N D103157

1шт.

11

A61448

OIL SEAL,67.26mm ID x 97.16mm OD x 12.7mm Thk

hub

2шт.

Part of Wheel Bearing Kit P/N D103157

1шт.

12

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

BEARING tapered roller, inner

2шт.

Part of Wheel Bearing Kit P/N D103157

1шт.

D103157

WHEEL BEARING KIT

KIT wheel bearing, Includes: Ref. 2, 3, 9, 10, 11 and 12, two kits required per tractor

1шт.
