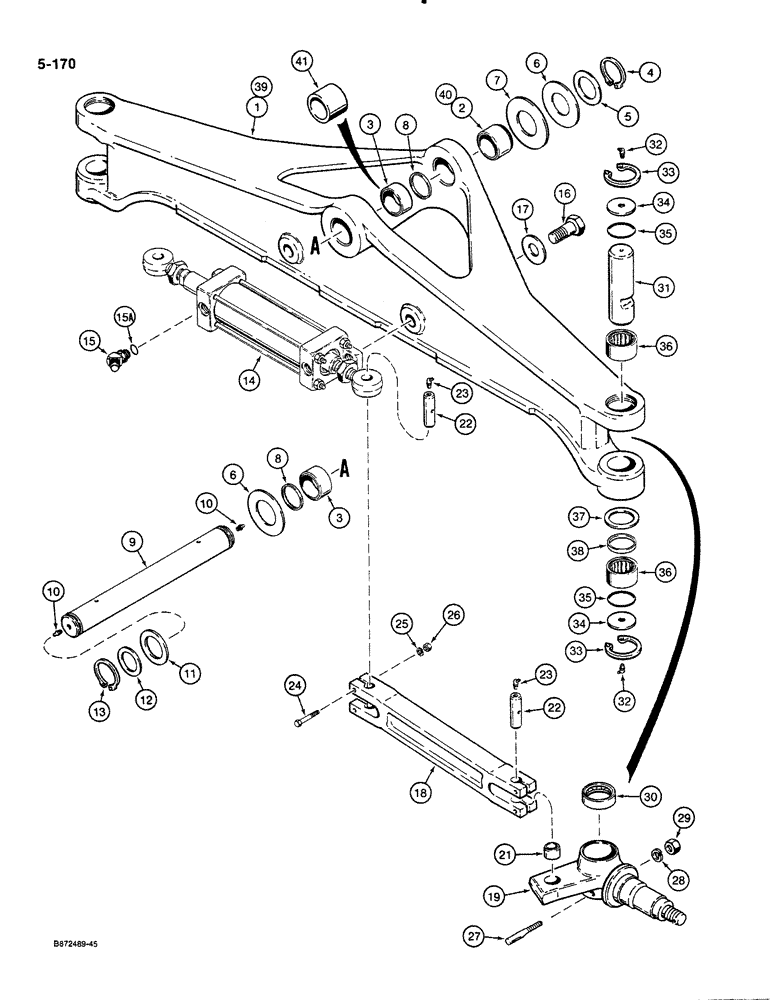

Запчасти Case 580K (05-170) - FRONT AXLE AND SPINDLES (05) - STEERING
№
Артикул
Название
Примечание
Количество
1
D127464
AXLE, FRONT
AXLE ASSEMBLY front, with double rear bushing, no longer used, for service order P/N D138954 axle, Ref. 39, Includes: Ref. 2 and 3
1шт.
D138954R
REMAN-FRT AXLE wo DL
580K, Reman for New P/N D127464
1шт.
D138954C
CORE-FRONT AXLE
Return Number
1шт.
2
D135074
BUSHING
axle, front
1шт.
3
D135075
BUSHING,50.19mm ID x 70mm OD x 30mm L
axle, rear
2шт.
4
800-50050
SNAP RING,M50, Ext, Hvy
RING snap, axle pivot pin retaining, front
1шт.
5
195-2155
WASHER,2 1/16" x 3" x .109"
flat, 2" bolt size, 2-1/16" ID x 3" OD x 1/8" thick
1шт.
6
D37449
SHIM,.0747" Thk
Washer, flat (2-1/32" ID x 4" OD), Spacer .0747" Thk
1шт.
7
D123684
WASHER,52.3mm ID x 114mm OD x 4.78mm Thk
thrust, 2-1/16" ID x 4-1/2" OD x 3/16" thick, front
1шт.
9
D127445
PIVOT PIN,50mm OD x 444mm L
PIN axle pivot
1шт.
10
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING grease, straight, 1/8" NPT
2шт.
11
S49415
WASHER
special
1шт.
12
195-2152
WASHER,1 13/16" x 2 1/2" x .109"
flat, 1-3/4" bolt size, 1-13/16" ID x 2-1/2" OD x 1/8" thick
1шт.
13
D25280
SNAP RING,#175, Ext
Ring, Snap, , axle pivot pin, rear #175, Ext
1шт.
14
G107720
CYLINDER,Double Acting, 38.1mm Rod, 85.1mm Stroke
steering, two wheel drive front axle, see Figure 05-168
1шт.
14
G107720R
REMAN-HYD CYLINDER
580K 2wd
1шт.
14
G107720C
CORE-HYD CYLINDER
Return Number
1шт.
15
218-5136
ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
45 degree, adjustable, Incl. Ref 15A
2шт.
15a
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk, Elbow
1шт.
16
113-923
BOLT,Hex, 1" - 8 x 2-1/4", Gr 5, Full Thd
2шт.
17
D36505
WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk
flat, 1" hardened
2шт.
18
D123806
LINK, CONNECTING
LINK steering
2шт.
19
D125340
SPINDLE
ASSEMBLY right-hand
1шт.
20
D125341
SPINDLE
ASSEMBLY left-hand, not shown, Includes: Ref. 21
1шт.
21
D127507
BUSHING,22.33mm ID x 32.25mm OD x 25mm L
P/N D125340 or P/N D125341 spindle
1шт.
22
D123682
PIN
steering link
4шт.
23
LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF
FITTING - grease, 45º, 1/8" pipe, self-tapping
4шт.
24
113-219
BOLT,Hex, 3/8" - 16 x 2", Gr 5
8шт.
25
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
8шт.
26
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
8шт.
27
D57486
PIN
- kingpin lock
2шт.
Part of King Pin Kit P/N D103626
1шт.
28
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
29
129-125
NUT,1/2"-20, G5
2шт.
30
A27602
THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"
BEARING roller, spindle
2шт.
Part of King Pin Kit P/N D103626
1шт.
31
D123865
PIVOT PIN,50.8mm OD x 168.91mm L
PIN king, front axle
2шт.
Part of King Pin Kit P/N D103626
1шт.
32
LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF
FITTING - grease, 45º, 1/8" pipe, self-tapping
4шт.
Part of King Pin Kit P/N D103626
1шт.
33
A27463
SNAP RING,2.375", Int, #237
Brg 2.375", Int, #237
4шт.
Part of King Pin Kit P/N D103626
1шт.
34
D72371
WASHER,3.17mm ID x 60.2mm OD x 4.57mm Thk
SPACER king pin
4шт.
Part of King Pin Kit P/N D103626
1шт.
35
A23904
O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro
-139, 90 Duro, 2.175" ID x .103" Thk, King pin seal
4шт.
Part of King Pin Kit P/N D103626
1шт.
36
A28230
NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W
BEARING needle, king pin
4шт.
Part of King Pin Kit P/N D103626
1шт.
Part of King Pin Kit P/N D103626
1шт.
38
D61297
SEAL,50.8mm ID x 60.22mm OD x 6.4mm Thk
oil
2шт.
Part of King Pin Kit P/N D103626
1шт.
39
D138954
AXLE, FRONT
AXLE ASSEMBLY front, with single rear bushing, Includes: Ref. 40 and 41
1шт.
D138954R
REMAN-FRT AXLE wo DL
580K
1шт.
D138954C
CORE-FRONT AXLE
Return Number
1шт.
40
D137345
BUSHING,50.19mm ID x 60mm OD x 36mm L
axle, front
1шт.
D103626
PACKAGE
KIT king pin, Includes: Ref. 27 and 30 thru 38, quantity in kit services one side of axle
1шт.
Выбрано товаров: 59
