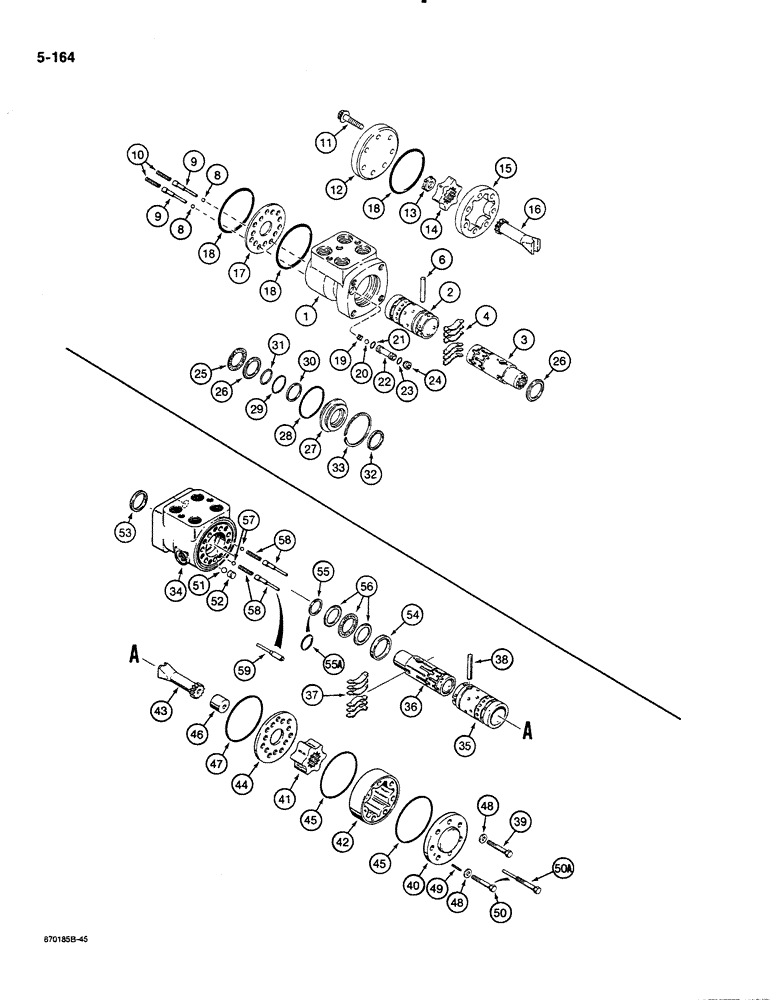

Запчасти Case 580K (05-164) - STEERING CONTROL VALVE (05) - STEERING

D135338

PUMP, HYDRAULIC

VALVE ASSEMBLY control, may receive either Eaton or Danfoss complete control valve assembly, see below for service of internal parts, Includes: Eaton control valve assembly and Ref. 1 thru 33 or Danfoss control valve assembly and Ref. 34 thru 59

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY control, steering, Eaton No. 263-1061-004, if used, Replaces: Eaton No. 263-1061-001 valve, Includes: Ref. 1 thru 33

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE control valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL control valve

1шт.

N14250

KIT

centering spring, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING centering

6шт.

5

NSS

NOT SOLD SEPARAT

SPACER spring, if used, not shown

2шт.

6

L30888

PIN

centering

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE check, control valve, not shown

1шт.

8

211-204

BALL

3/16", anticavitation

2шт.

9

N14764

PLUG

RETAINER spring, anticavitation

2шт.

10

N14763

SPRING

anticavitation

2шт.

11

H189555

BOLT,M6 x 20mm, Cl 8.8

Ferry head, 5/16"-24 NF x 1-5/8"

7шт.

12

D82809

COVER

end

1шт.

13

K964246

SPACER

drive shaft

1шт.

N14154

ROTOR

SET gerotor, control valve, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

ROTOR control valve

1шт.

15

NSS

NOT SOLD SEPARAT

STATOR control valve

1шт.

16

L30878

DRIVE SHAFT

SHAFT drive, steering control valve

1шт.

17

S113037

PLATE

spacer

1шт.

18

N6392

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

cover and housing

3шт.

19

L35368

RETAINER

ball

1шт.

20

211-208

BALL,5/16" Dia

check, steel

1шт.

21

L30893

O-RING,1/16" Thk x 5/16" ID

seat, inner

1шт.

22

D82806

VALVE SEAT

SEAT check ball

1шт.

23

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

seat, outer

1шт.

24

D82805

SET SCREW

special, hex socket head

1шт.

25

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Needle, Spool

1шт.

26

D82804

RACE

WASHER thrust, bearing

2шт.

27

N13312

CYLINDER END CAP

RETAINER spool seal

1шт.

28

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

seal retainer

1шт.

29

N13313

SEAL,25.1mm ID x 26.7mm OD x 2.6mm Thk

spool, inner

1шт.

30

N13314

RING

backup, seal

1шт.

31

L15402

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

spool, inner

1шт.

32

A28211

OIL SEAL

spool, outer

1шт.

33

S110169

WASHER

RING retaining, seal retainer

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY control, steering, Danfoss Type No. OSPC125LS, Code No. 150-0122, if used, Includes: Ref. 34 thru 59

1шт.

34

NSS

NOT SOLD SEPARAT

HOUSING control valve

1шт.

35

NSS

NOT SOLD SEPARAT

SLEEVE control valve

1шт.

36

NSS

NOT SOLD SEPARAT

SPOOL control valve

1шт.

37

N14219

SET OF PARTS

SPRING centering, set of six

1шт.

38

3112269R1

PIN

centering

1шт.

39

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

6шт.

40

3112273R1

COVER

end

1шт.

N14221

ROTOR

SET gerotor, control valve, Includes: Ref. 41 and 42

1шт.

41

NSS

NOT SOLD SEPARAT

ROTOR control valve

1шт.

42

NSS

NOT SOLD SEPARAT

STATOR control valve

1шт.

43

538915R1

DRIVE SHAFT

SHAFT drive, steering control valve

1шт.

44

3112276R1

PLATE

spacer

1шт.

45

V35605

O-RING

O-RING cover and housing

2шт.

46

N14220

SPACER

shaft

1шт.

47

V35603

O-RING,1.5mm Thk x 80.5mm ID

O-RING plate

1шт.

48

538920R1

WASHER

end cover

7шт.

49

3112271R1

PIN, ROLL

PIN roll, locating, used with Ref. 50 bolt

1шт.

50

K964166

BOLT,M10 x 1.25 x 35mm, Cl 8.8

special, no longer available, order P/N D145254 bolt with pin

1шт.

50a

D145254

BOLT special, with pin

SCREW

1шт.

51

3112270R1

BALL

plate

1шт.

52

3112272R1

BUSHING

plate

1шт.

53

V35600

SEAL

spool, outer

1шт.

54

3112264R1

RING

retaining

1шт.

55

N14217

SEAL

spool, inner, no longer available, order P/N D145253 O-ring

1шт.

55a

D145253

O-RING

special

1шт.

56

N14218

BEARING ASSY

BEARING spool, includes roller bearing and two thrust washers

1шт.

57

N14222

BALL

housing

2шт.

58

N14223

PLUG

PIN with bushing and spring, housing, no longer available, order P/N D145278 pin with bushing

2шт.

59

D145278

PIN, SPLIT (COTTER)

PIN with bushing

2шт.
