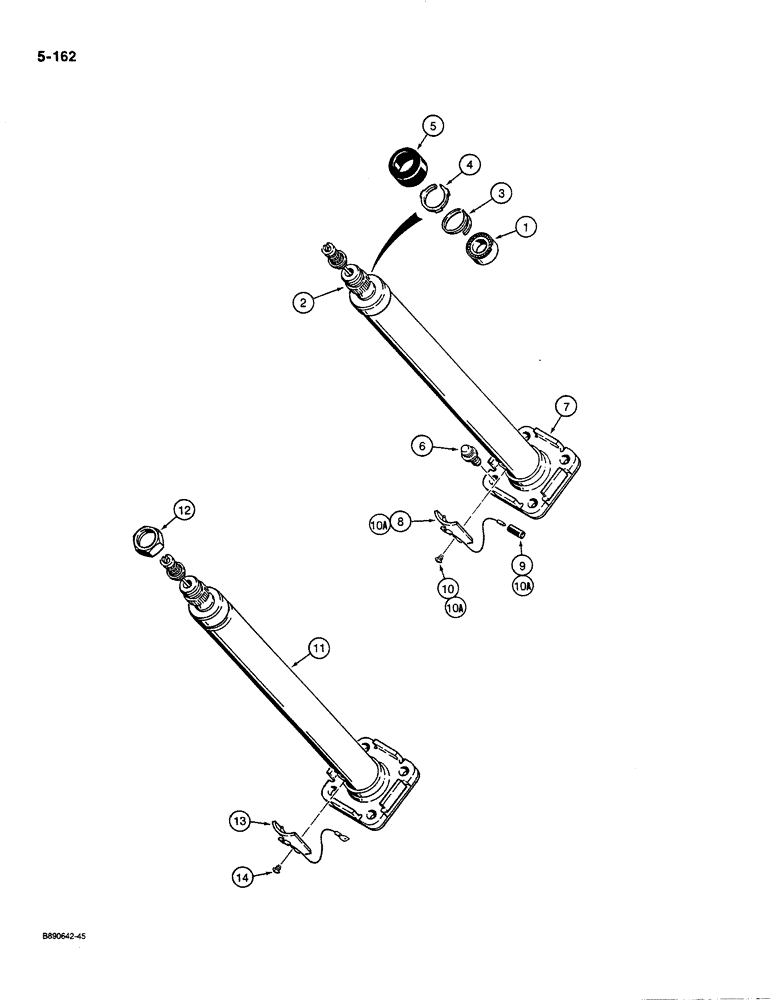

Запчасти Case 580K (05-162) - STEERING COLUMNS, MODELS WITH HORN (05) - STEERING

D133510

STEERING COLUMN

COLUMN ASSEMBLY steering, may receive either Eaton or Danfoss complete steering column assembly, see below for service of internal parts, Includes: steering column assembly and Ref. 1 thru 14

1шт.

NSS

NOT SOLD SEPARAT

COLUMN ASSEMBLY steering, Eaton No. 204-1067-007, 18-1/8" (460 mm) long, Replaces: Eaton No. 204-1067-005, if used, Includes: Ref. 1 thru 10A

1шт.

1

NSS

NOT SOLD SEPARAT

BEARING roller, steering shaft

1шт.

2

NSS

NOT SOLD SEPARAT

COLUMN with wire, steering shaft

1шт.

3

NSS

NOT SOLD SEPARAT

RING retaining, bearing

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINER bearing

1шт.

5

S115351

CAP

shaft

1шт.

7

NSS

NOT SOLD SEPARAT

FLANGE tube

1шт.

S109356

BRUSH, COMMUTATOR

BRUSH ASSEMBLY horn, Eaton No. 204-1067-005 column, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

BRUSH horn

1шт.

9

S63473

CONNECTOR, ELEC

CONNECTOR horn, attaches to front console harness

1шт.

10

187-1116

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/4"

SCREW pan, Phillips head, self-tapping, No. 10-24 NC x 1/4", plated, brush retaining, Eaton No. 204-1067-005 column

2шт.

10a

D145713

KIT

brush, includes (2) screws and (1) brush which are not serviced separately, Eaton 204-1067-007 column

1шт.

NSS

NOT SOLD SEPARAT

COLUMN ASSEMBLY steering, Danfoss Type No. OTPB400, Code No. 150 x 1315, 17-15/16" (456 mm) long, if used, Includes: Ref. 11 thru 14

1шт.

11

NSS

NOT SOLD SEPARAT

COLUMN with wire, steering shaft

1шт.

12

N14118

SPECIAL NUT

special

1шт.

N14216

BRUSH, COMMUTATOR

BRUSH ASSEMBLY horn, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

BRUSH horn

1шт.

14

983-4005

SCREW,Pan Slotted, M4 x 5mm, Cl 4.8

slotted pan head, 4 mm x 5 mm, plated

2шт.
