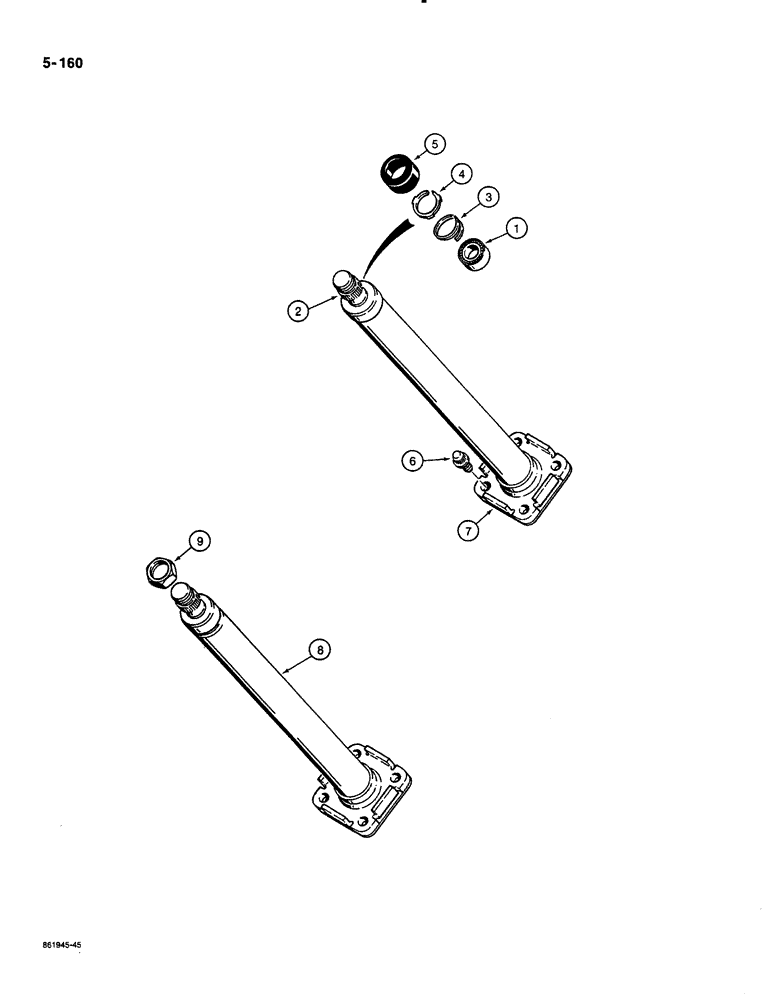

Запчасти Case 580K (05-160) - STEERING COLUMNS, MODELS WITHOUT HORN (05) - STEERING

D135411

STEERING COLUMN

COLUMN ASSEMBLY steering, may receive either Eaton or Danfoss complete steering column assembly, see below for service of internal parts, Includes: steering column assembly and Ref. 1 thru 9

1шт.

NSS

NOT SOLD SEPARAT

COLUMN ASSEMBLY steering, Eaton No. 204-1031-005, 18-3/32" (460 mm) long, if used, Includes: Ref. 1 thru 7

1шт.

1

L30881

BALL BEARING,22.4mm ID x 35.8mm OD x 9.6mm W

roller, steering shaft

1шт.

2

NSS

NOT SOLD SEPARAT

COLUMN steering shaft

1шт.

3

F53335

RING, SNAP

RING retaining, bearing

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINER bearing

1шт.

5

S115351

CAP

shaft

1шт.

6

166-43

12 PT SCREW,Flg, 3/8" - 16 x 3/4", Gr 8

BOLT, Ferry head, 3/8"-16 NC x 3/4", grade 8, not required, see Figure 05-150

2шт.

7

NSS

NOT SOLD SEPARAT

FLANGE tube

1шт.

NSS

NOT SOLD SEPARAT

COLUMN ASSEMBLY steering, Danfoss Type No. OTPB400, Code No. 150X0058, 17-7/8" (454 mm) long, if used, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

COLUMN steering shaft

1шт.

9

N14118

SPECIAL NUT

special, used on Danfoss steering columns

1шт.
