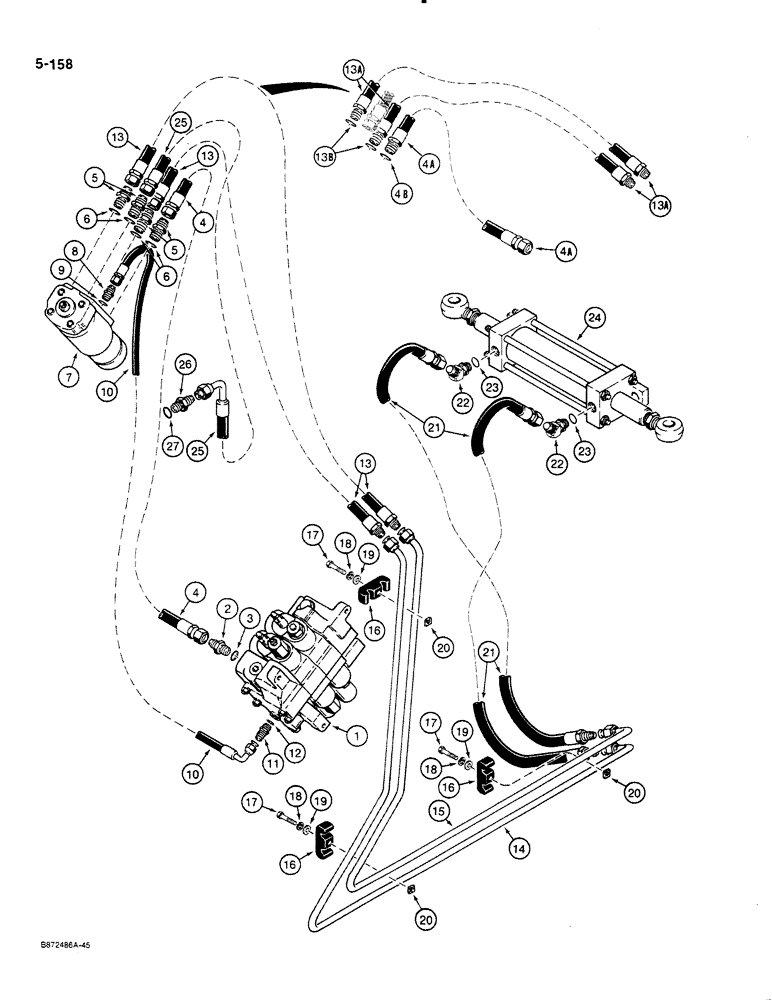

Запчасти Case 580K (05-158) - STEERING HYDRAULIC CIRCUIT (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY control, loader, for correct assembly and components, see Figure 08-354 or 08-356

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR straight, male, Incl. Ref 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Connector

1шт.

4

D140106

HOSE

23-5/8" (600 mm) long, steering pressure, loader control valve to steering control valve lower right-hand port, replaces 19-11/16" hose used on some models, used with Ref. 5 connector, if used, may be replaced by Ref. 4A hose on some models

1шт.

4a

D143189

HOSE

24-5/8" (625 mm) long, steering pressure, loader control valve to steering control valve lower right-hand port, does not require Ref. 5 connector at steering valve, Includes: Ref. 4B

1шт.

4b

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Hose

1шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR straight, male, Incl. Ref 6

1-4шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Connector

1шт.

7

REF

INSTRUCTION

VALVE ASSEMBLY control, steering, see Figure 05-164

1шт.

8

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER straight, male, Incl. Ref. 9

1шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Adapter

1шт.

10

D135246

HOSE

25-5/8" (650 mm) long, steering pilot, steering control valve small center port to loader control valve

1шт.

11

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR straight, male, Incl. Ref. 12

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Connector

1шт.

13

R34076

HOSE

21-1/2" (546 mm) long, steering control valve upper and lower left-hand ports to tubes, used with Ref. 5 connector, if used, may be replaced by Ref. 13A hose on some models

2шт.

13a

D143188

HOSE ASSY.

HOSE, 22-7/16" (570 mm) long, steering control valve upper and lower left-hand ports to tubes, does not require Ref. 5 connector at steering valve, Includes: Ref. 13B

2шт.

13b

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Hose

1шт.

14

D143207

TUBE

lower, to steering cylinder right-hand port hose

1шт.

Tube lines are a different configuration than those shown in parts book 8-6952. There are no serial breaks, so be sure the parts being ordered, are similar looking to the ones required.

1шт.

15

D143205

TUBE

upper, to steering cylinder left-hand port hose

1шт.

Tube lines are a different configuration than those shown in parts book 8-6952. There are no serial breaks, so be sure the parts being ordered, are similar looking to the ones required.

1шт.

16

D120679

CLAMP,Tube, 1/2"

tube

3шт.

17

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

19

195-525

WASHER,3/8", SAE

flat, 3/8", plated

3шт.

20

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8"-16 NC

3шт.

21

D124648

HOSE

19-11/16" (500 mm) long, at steering cylinder

2шт.

22

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

45 degree, adjustable, Incl. Ref 23

2шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

24

REF

INSTRUCTION

CYLINDER ASSEMBLY steering, see Figure 05-168

1шт.

25

D133857

HOSE

24-5/8" (625 mm) long, steering return, steering control valve upper right-hand port to hydraulic oil filter

1шт.

26

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR straight, male, Incl. Ref. 27

1шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Connector

1шт.
