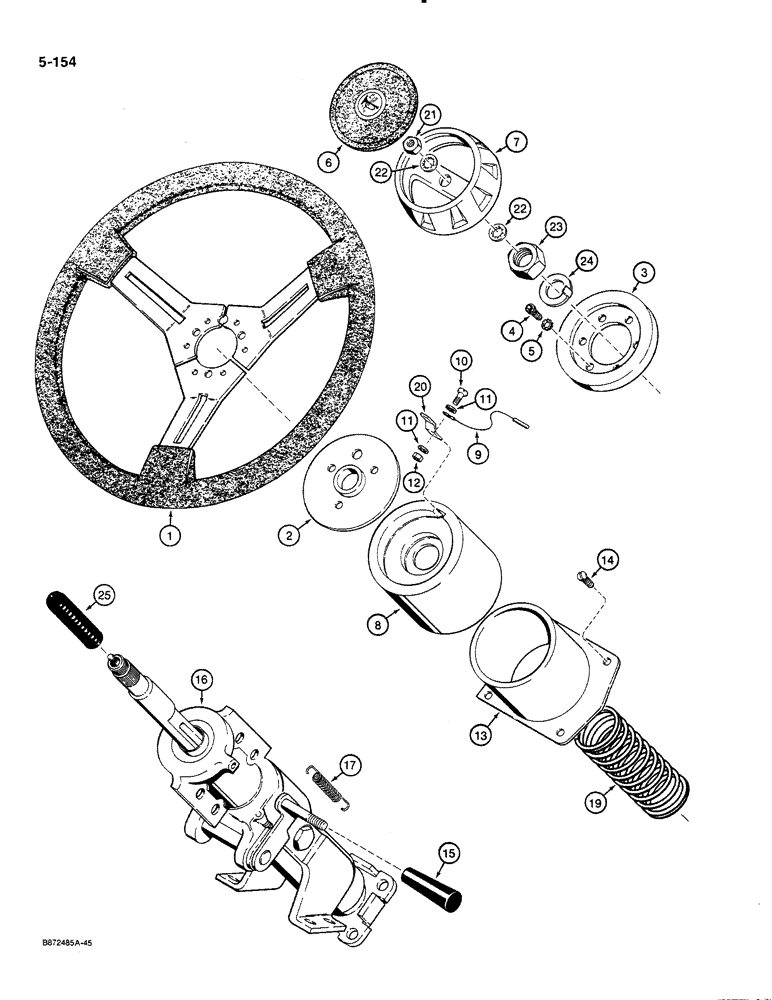

Запчасти Case 580K (05-154) - STEERING WHEEL AND COLUMN, SPECIAL PARTS USED ON MODELS WITH TILT/TELESCOPING STEERING COLUMN (05) - STEERING

D139645

WHEEL

ASSEMBLY steering, Includes: Ref. 1 thru 5

1шт.

1

D147465

STEERING WHEEL

WHEEL steering

1шт.

P/N D147465 subs to P/N D148204

1шт.

2

D147466

HUB

lower

1шт.

3

D147464

SPACER

ring, upper

1шт.

4

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

hex socket, 8-1.25 x 20 mm, 8.8, plated

3шт.

5

193-67

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

3шт.

6

D141979

BUTTON

horn actuating

1шт.

7

D141980

OIL SEAL

RING lock

1шт.

8

D139780

COVER

column, outer

1шт.

9

D141182

ELECTRICAL WIRE

WIRE ground, horn, attaches to horn button

1шт.

10

182-5

SCREW,Sl Pan Hd, #4 - 40 x 3/8"

machine, pan head, slotted, No. 4-20 NC x 3/8"

1шт.

11

193-22

LOCK WASHER,Int Tooth, #4

WASHER, LOCK, Int Tooth, #4

2шт.

12

129-13

NUT,#4-40

1шт.

13

D139781

COVER

column, inner

1шт.

14

182-550

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, pan Phillips head, slotted, No. 10-24 NC x 1/2", plated

4шт.

15

D136995

KNOB

tilt/telescoping control lever

1шт.

D138501

COLUMN JACKET

COLUMN ASSEMBLY tilt/telescoping, steering, internal component parts not serviced separately, Includes: Ref. 16 thru 24

1шт.

16

NSS

NOT SOLD SEPARAT

COLUMN tilt/telescoping, steering

1шт.

Brush assy. for horn, P/N D147341 and plate assy., P/N D147554, fit here.

1шт.

17

D147552

SPRING

small, lower column

3шт.

18

D147553

SPRING

small, side, not shown

2шт.

19

D147550

SPRING

large, upper column

1шт.

20

D141183

CONTACT

SPRING wire ground

1шт.

21

131-497

LOCK NUT,3/8"-16, GC

NUT hex, self-locking, 3/8"-16 NC, plated

1шт.

22

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

23

N14864

NUT

hex, special

1шт.

24

D147549

BRACKET

RETAINER lock

1шт.

25

D143637

GUARD

steering column

1шт.
