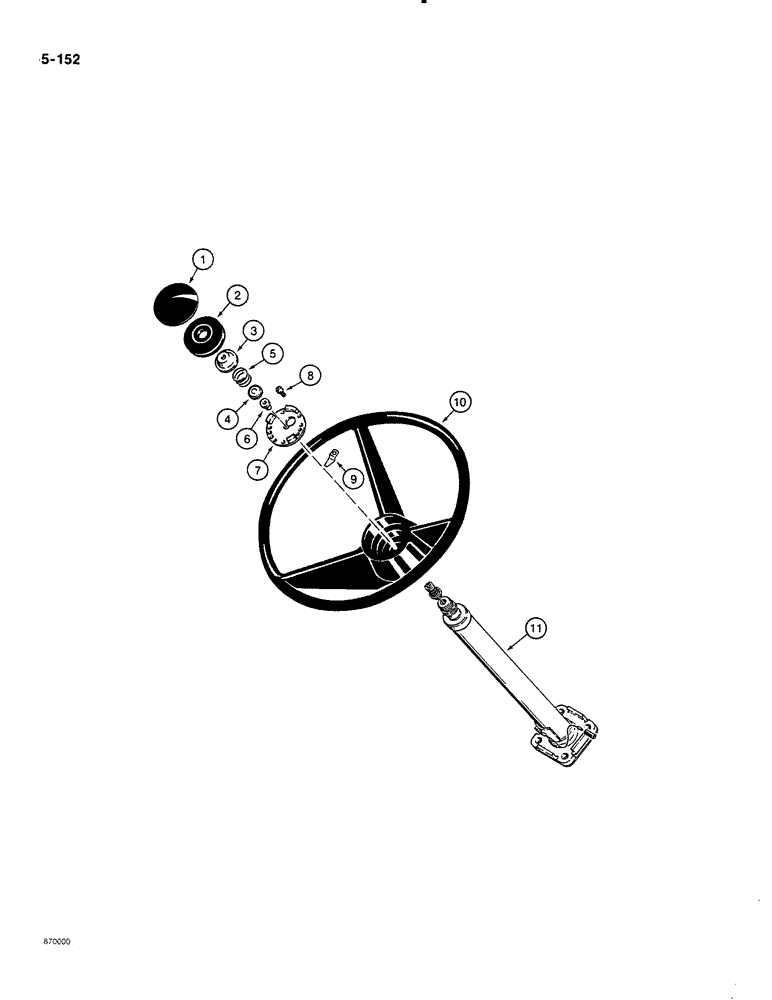

Запчасти Case 580K (05-152) - STEERING WHEEL & COLUMN, SPECIAL PARTS USED ON MODELS W/HORN W/O TILT/TELESCOPING STEERING COLUMN (05) - STEERING

D131790

BUTTON

ASSEMBLY horn, Includes: Ref. 1 thru 9

1шт.

1

N14234

BUTTON

COVER button

1шт.

2

A13089

BUTTON

horn actuating

1шт.

3

A13092

CAP

CUP contact

1шт.

4

A13090

CAP

contact

1шт.

5

A13091

SPRING

return, horn button

1шт.

6

A13058

FERRULE

CONTACT horn, insulator, included in button assembly, not required

1шт.

7

N9013

PLATE

base

1шт.

8

168-25

DRIVE SCREW,Type U, Rnd Hd, #10 x 5/8"

drive, round head, No. 10 x 5/8", base plate retaining

3шт.

9

NSS

NOT SOLD SEPARAT

SPRING ground

1шт.

10

D128532

WHEEL (STEERING)

WHEEL steering, tractor

1шт.

11

REF

INSTRUCTION

COLUMN ASSEMBLY steering, with horn wire, see Figure 05-162

1шт.
