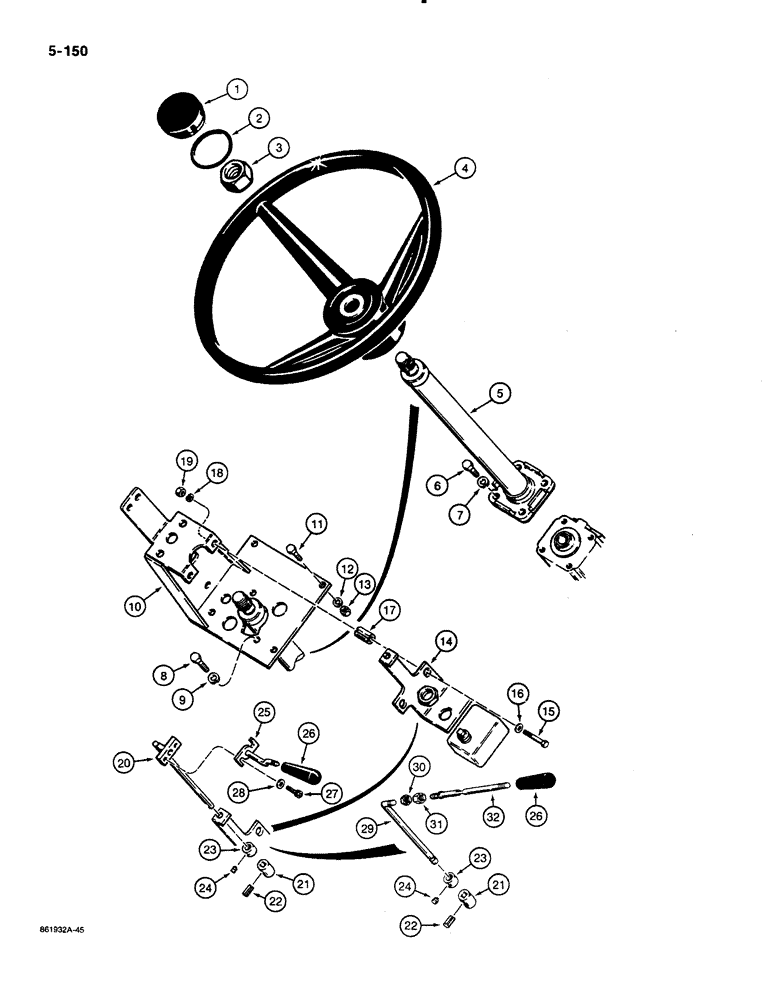

Запчасти Case 580K (05-150) - STEERING WHEEL, COLUMN, AND TURN SIGNAL, USED ON MODELS WITHOUT TILT/TELESCOPING STEERING COLUMN (05) - STEERING

1

A62210

PLUG

CAP steering wheel

1шт.

For use on models without a horn. For models with a horn, see Figure 05-152 for steering wheel, column, and horn button. Other parts listed in this figure are common to models with or without a horn.

1шт.

2

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

cap

1шт.

For use on models without a horn. For models with a horn, see Figure 05-152 for steering wheel, column, and horn button. Other parts listed in this figure are common to models with or without a horn.

1шт.

3

F19646

LOCK NUT,13/16"-20, Thin

NUT special, steering wheel retaining

1шт.

4

A65544

STEERING WHEEL

- Tractor

1шт.

For use on models without a horn. For models with a horn, see Figure 05-152 for steering wheel, column, and horn button. Other parts listed in this figure are common to models with or without a horn.

1шт.

5

REF

INSTRUCTION

COLUMN ASSEMBLY steering, without horn wire, see Figure 05-160

1шт.

For use on models without a horn. For models with a horn, see Figure 05-152 for steering wheel, column, and horn button. Other parts listed in this figure are common to models with or without a horn.

1шт.

6

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

D134527

BRACKET

steering column

1шт.

11

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

13

9635082

NUT,5/16" - 18, Gr 5

4шт.

14

D133224

BRACKET

turn signal

1шт.

Electrial switch for turn signal lever bracket is P/N A77184

1шт.

15

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

16

195-521

WASHER,5/16", SAE

flat, 5/16", plated

2шт.

17

D121476

BUSHING

SPACER bracket

2шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

19

9635082

NUT,5/16" - 18, Gr 5

2шт.

20

D137790

ROD ASSY.

ROD turn signal, if used

1шт.

Make up older style turn signal rod and lever.

1шт.

21

D126446

COUPLING

COUPLER rod to turn signal switch

1шт.

22

138-56

LOCK PIN,1/8" x 11/16", Slotted

PIN, 1/8" x 11/16", Slotted

1шт.

23

D126453

COLLAR

turn signal rod, Includes: Ref. 24

1шт.

24

83-43

SCREW set, hex socket headless, 1/4"-20 NC x 3/16", cup point, use P/N 83-3254 if required

1шт.

25

D137830

LEVER

turn signal, if used

1шт.

Make up older style turn signal rod and lever.

1шт.

26

D136995

KNOB

turn signal lever

1шт.

27

28053R1

HEX SOC SCREW,#6 - 32 x 3/4"

BOLT hex socket head, No. 6-32 NC x 3/4", if used

2шт.

Make up older style turn signal rod and lever.

1шт.

28

195-507

WASHER,#6

flat, No. 6, plated, if used

2шт.

Make up older style turn signal rod and lever.

1шт.

29

D140239

ROD

turn signal, if used

1шт.

Make up later style turn signal rod and lever.

1шт.

30

9635082

NUT,5/16" - 18, Gr 5

If used 5/16"-18, G5

1шт.

Make up later style turn signal rod and lever.

1шт.

31

D140966

NUT

special, if used

1шт.

Make up later style turn signal rod and lever.

1шт.

32

D140513

LEVER

turn signal, if used

1шт.

Make up later style turn signal rod and lever.

1шт.
