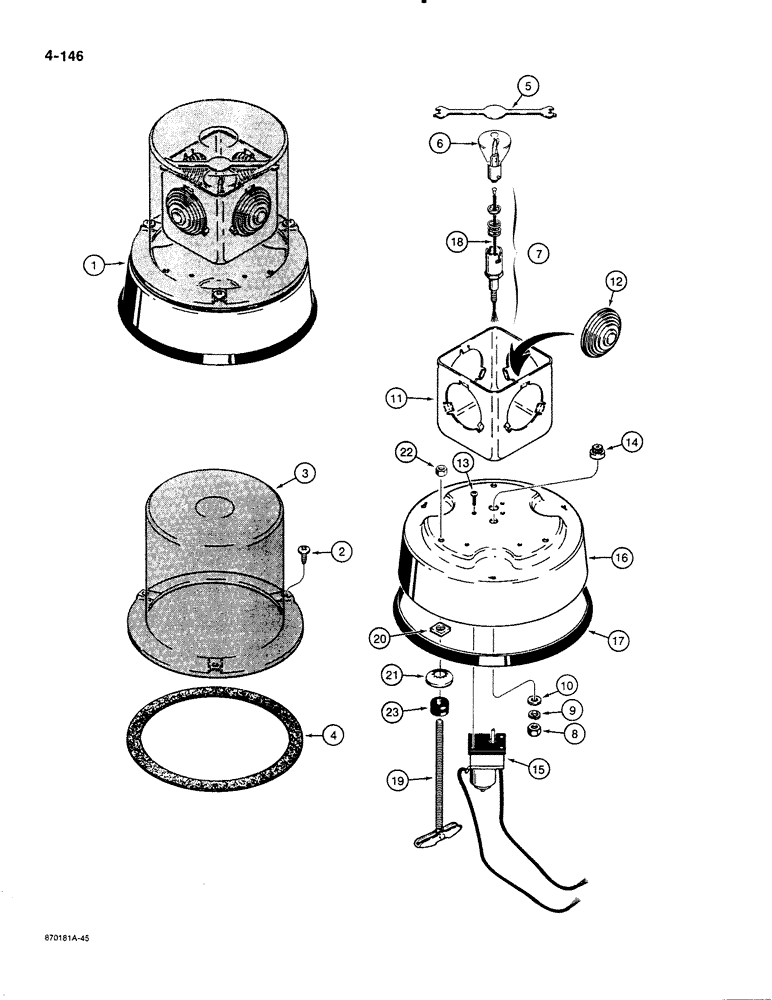

Запчасти Case 580K (04-146) - ROTATING BEACON, USED ON CAB OR CANOPY MODELS (04) - ELECTRICAL SYSTEMS

1

D137275

LIGHT, WARNING

BEACON ASSEMBLY rotating, cab or canopy models, 360 degree, 12 volt, amber lens, Signal Stat No. 378Y109, Includes: Ref. 2 thru 26

1шт.

Title indicates for use on cab or canopy models - should indicate for use on canopy models only

1шт.

2

187-39

SELF-TAP SCREW,Rd Hd, #12 x 5/8"

SCREW round head, self-tapping, No. 12 x 5/8"

3шт.

3

N8426

LENS

DOME rotating beacon

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET dome

1шт.

5

NSS

NOT SOLD SEPARAT

STRAP basket

1шт.

6

NLS

NO LONGER SERVICED

BULB, 12 volt, No. 1195

1шт.

7

N8430

SOCKET

ASSEMBLY beacon

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

1шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

10

195-103

WASHER,5/16"

flat, , plated 5/16"

1шт.

11

NSS

NOT SOLD SEPARAT

BASKET less lenses

1шт.

12

N8423

GASKET

LENS beacon

4шт.

13

182-47

SCREW,Sl Pan Hd, #6 - 32 x 5/8"

machine, pan head slotted, No. 6-32 NC x 5/8"

3шт.

14

NSS

NOT SOLD SEPARAT

GEAR beacon

1шт.

15

N14442

MOTOR

beacon, 12 volt, includes connector which is not serviced separately

1шт.

16

NSS

NOT SOLD SEPARAT

BASE beacon

1шт.

17

N8422

GASKET

base

1шт.

18

N14209

ELECTRICAL WIRE

WIRE jumper, Serial Range: bulb-motor

1шт.

L35092

KIT

mounting, includes instruction sheet, Includes: Ref. 19 thru 26

1шт.

19

L35148

BOLT

toggle, No. 10-24 NC x 4"

3шт.

20

129-47

NUT

square, No. 10-24 NC, if used

3шт.

21

L35146

LOCK WASHER

WASHER lock, No. 10

3шт.

22

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

3шт.

23

F13115

GROMMET

rubber, mounting

3шт.

24

T29401

NUT

twist-on, wire, not shown, not required

1шт.

25

A43211

GROMMET

rubber, wire, if used, not shown

1шт.

26

L35145

HARNESS

WIRE, 8 foot block, not shown

1шт.
