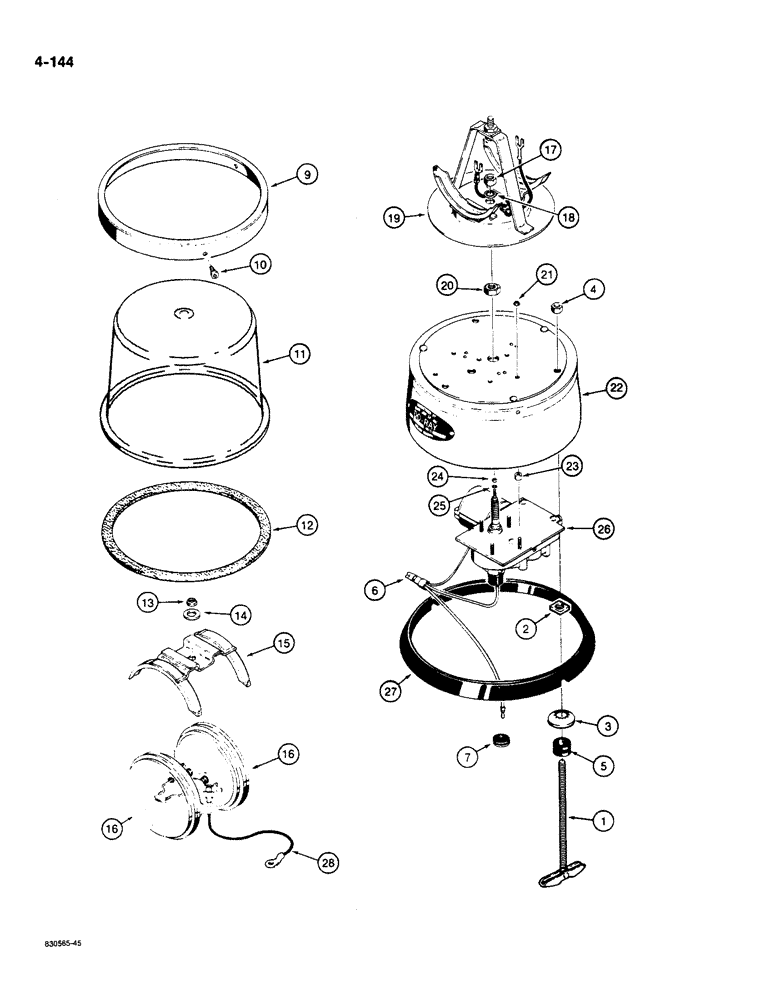

Запчасти Case 580K (04-144) - ROTATING BEACON, USED ON CANOPY MODELS (04) - ELECTRICAL SYSTEMS

F93158

LAMP

BEACON ASSEMBLY rotating, 360°, amber, includes a switch and wire not used on model 580K, no longer available, for service order P/N D140447 adapting wire in Figure 04-142 and P/N D137275 beacon in Figure 04-146, Includes: P/N L35092 and Ref. 1 thru 28

1шт.

Title indicates for use on canopy models - should indicate for use on cab models only

1шт.

L35092

KIT

mounting, includes an instruction sheet, Includes: Ref. 1 thru 8

1шт.

1

L35148

BOLT

toggle, No. 10-24 NC x 4"

3шт.

2

129-47

NUT

square, No. 10-24 NC

3шт.

3

L35146

LOCK WASHER

WASHER lock, No. 10

3шт.

4

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

3шт.

5

F13115

GROMMET

rubber, mounting

3шт.

6

T29401

NUT

twist-on, wire

1шт.

7

A43211

GROMMET

rubber, wire, Replace: with P/N A23870 grommet in Figure 04-142

1шт.

8

L35145

HARNESS

WIRE, 8 foot block, not shown

1шт.

9

L32219

RING clamp, lens

1шт.

10

168-70

DRIVE SCREW,Type U, Rnd Hd, #8 x 3/8"

drive, No. 8 x 3/8", plated

3шт.

11

L32221

LENS

amber

1шт.

12

L32220

GASKET lens

1шт.

13

131-204

NUT,1/4"-20

NUT hex, self-locking, NC, plated 1/4"-20

1шт.

14

195-102

WASHER,1/4"

flat, , plated 1/4"

1шт.

15

L32222

BRACKET retainer, sealed beam lamp

1шт.

16

D66204

LAMP

sealed beam, No. 4416

2шт.

17

129-175

NUT,3/8"-16, G5, LH

hex, 3/8"-16 NC, plated, left-hand thread

1шт.

18

193-94

WASHER lock, internal tooth, 3/8", left-hand twist

1шт.

19

L32224

PLATE mounting, lamp

1шт.

20

L32225

NUT

special, brass

1шт.

21

131-29

LOCK NUT,#8-32, GB

NUT hex, self-locking, No. 8-32 NC, plated

4шт.

22

L32226

BASE

motor and lens

1шт.

23

L32228

SPACER

, Serial Range: motor-base

4шт.

24

129-13

NUT,#4-40

1шт.

25

192-13

WASHER,#4

Lock, #4

1шт.

26

D65187

MOTOR

electric, 12 volt

1шт.

27

L32227

GASKET

base

1шт.

28

L35144

WIRE ground

1шт.
