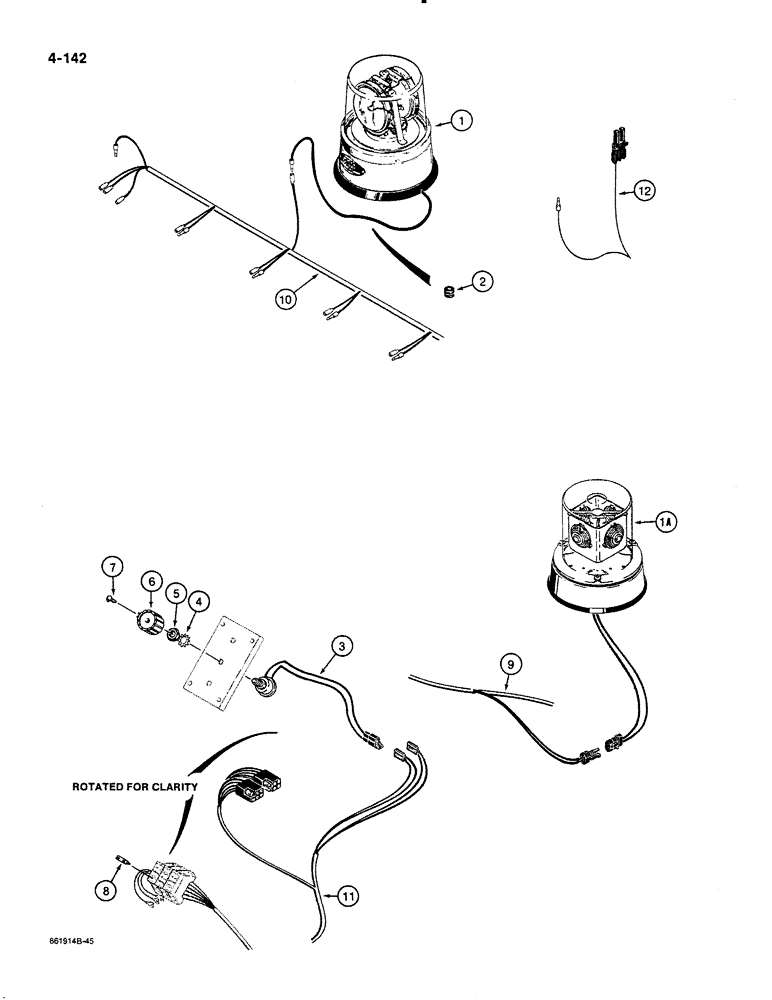

Запчасти Case 580K (04-142) - ROTATING BEACON AND CIRCUIT (04) - ELECTRICAL SYSTEMS

1

F93158

LAMP

BEACON ASSEMBLY rotating, used on canopy models, see Figure 04-144, no longer available, for service order P/N D137275 beacon and P/N D140477 adapting wire , Ref. 1A and 12

1шт.

1a

D137275

LIGHT, WARNING

BEACON ASSEMBLY rotating, used on cab or canopy models, see Figure 04-146

1шт.

2

A23870

GROMMET

wire, canopy only, use in place of Ref. 7 on Figure 04-144

1шт.

D138377

SWITCH

ASSEMBLY rotating beacon, Includes: Ref. 3 thru 5

1шт.

3

NSS

NOT SOLD SEPARAT

SWITCH rotating beacon

1шт.

4

193-58

LOCK WASHER,Ext Tooth, 1/2"

WASHER lock, external tooth, 1/2", plated

1шт.

5

129-125

NUT,1/2"-20, G5

1шт.

6

A141735

KNOB

rotating beacon switch, see Figure 09-638 for rotating beacon symbol decal

1шт.

7

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

machine, pan head slotted, No. 8-32 NC x 1/2", plated

1шт.

8

A149801

FUSE,Lt Blue, 15 Amp

15 amperes, mounts in fuse holder in side instrument console harness

1шт.

9

REF

INSTRUCTION

HARNESS cab models, see Figure 04-126 for cab harness options

1шт.

10

REF

INSTRUCTION

HARNESS, ROPS canopy models, see Figure 04-124 for canopy harness options

1шт.

11

REF

INSTRUCTION

HARNESS side console, right-hand, see Figure 04-112 for side console harness options

1шт.

12

D140447

ELECTRICAL WIRE

WIRE adapting, used on canopy models

1шт.
