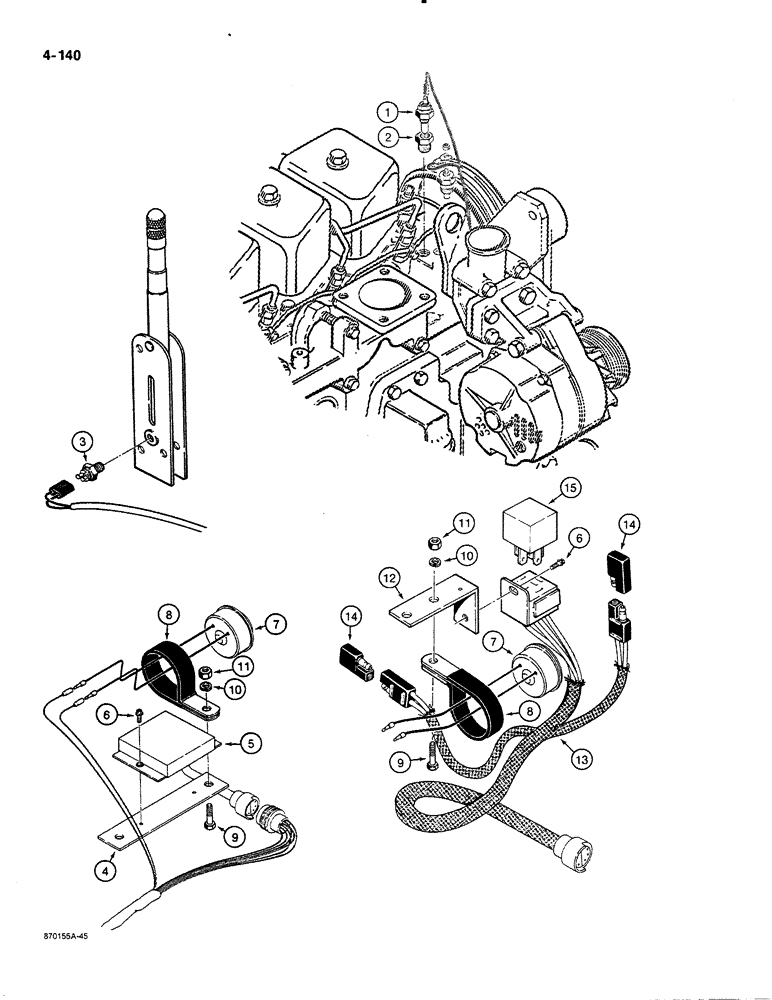

Запчасти Case 580K (04-140) - SPECIAL PARTS USED ON MODELS W/AUDIBLE WARNING ALARM FOR WATER TEMP, ENGINE OIL PRESS. & PARK. BRAKE (04) - ELECTRICAL SYSTEMS

1

D70163

SWITCH,1/4" - 18 NPT, 230 Degrees F

engine coolant temperature, replaces existing engine block plug

1шт.

2

221-1088

REDUCER,Hex, 1/2" x 1/4" NPT

1/2" x 1/4" NPT

1шт.

3

D136514

SWITCH

parking brake, mounts in parking brake lever on Figure 07-268, and attaches to side instrument panel harness

1шт.

4

D136682

BRACKET

alarm mounting, uses existing mounting bolt, mounts under side console, if used

1шт.

5

D139000

RELAY

alarm module, attaches to side instrument console harness, no longer available, order P/N D103387 kit

1шт.

6

187-1090

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW hex washer head, self-tapping, No. 10-24 NC x 5/8", blunt point, plated, relay mounting

1-2шт.

7

D137468

BUZZER

ALARM warning, for engine water temperature, engine oil pressure, and parking brake

1шт.

8

D120561

CLAMP

warning alarm, Serial Range: mounting-bracket

1шт.

9

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Alarm clamp to bracket Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

D103387

KIT

service, audible warning alarm, includes instructions, Includes: Ref. 12 thru 15

1шт.

12

D143873

SUPPORT

BRACKET alarm mounting, uses existing mounting bolt, mounts under side console

1шт.

13

D143962

HARNESS

WIRE alarm, attaches to side instrument console harness

1шт.

14

L71879

DIODE ELEMENT,400V, 3A

DIODE isolation

2шт.

15

D128310

RELAY

alarm

1шт.

40 amperes is marked on the relay. This is the resistance rating. The inductive rating is 30 amperes. We use this inductive rating in our literature.

1шт.
