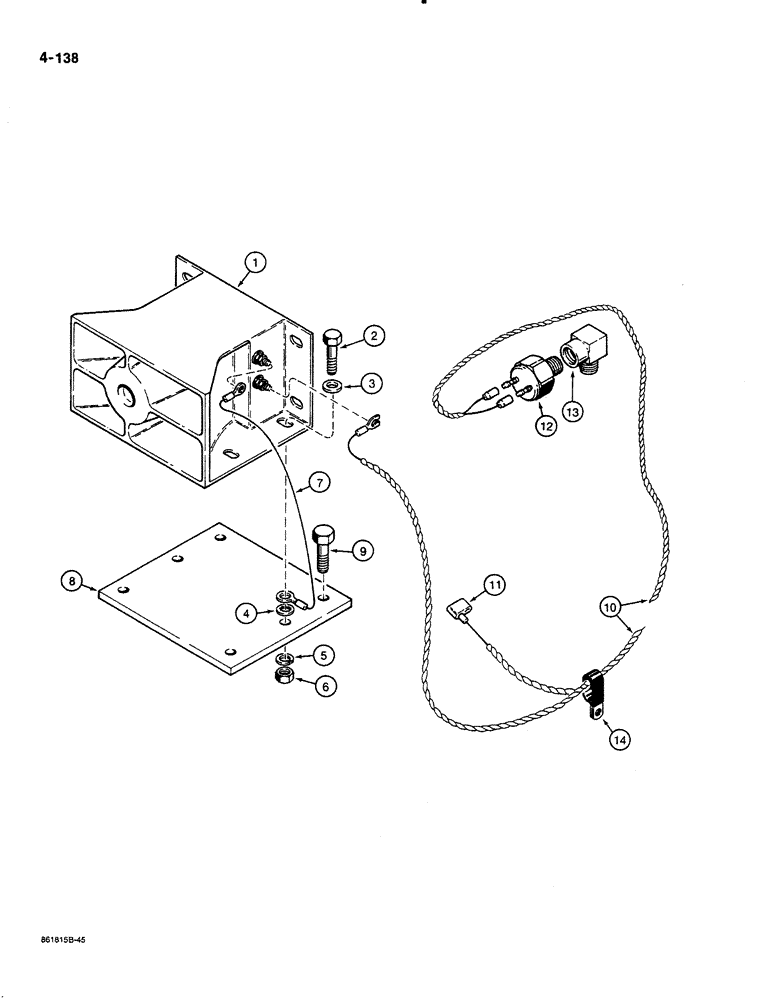

Запчасти Case 580K (04-138) - BACKUP ALARM (04) - ELECTRICAL SYSTEMS

1

D121972

ALARM

backup, electric

1шт.

2

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

3

195-521

WASHER,5/16", SAE

flat, 5/16", plated

4шт.

4

193-82

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

1шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

6

9635082

NUT,5/16" - 18, Gr 5

4шт.

7

D70125

ELECTRICAL WIRE

WIRE ground

1шт.

8

D133397

BRACKET

PLATE backup alarm mounting

1шт.

9

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

hex head, 3/8"-16 NC x 1", grade 8

2шт.

10

D133370

HARNESS

backup alarm

1шт.

11

A149798

FUSE

5 amperes

1шт.

12

D139904

SWITCH

pressure, backup alarm

1шт.

13

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

at power shuttle 90º, 1/8"-27 Female x 1/8"-27 Male

1шт.

14

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

double, Serial Range: mounts-chassis

1шт.
