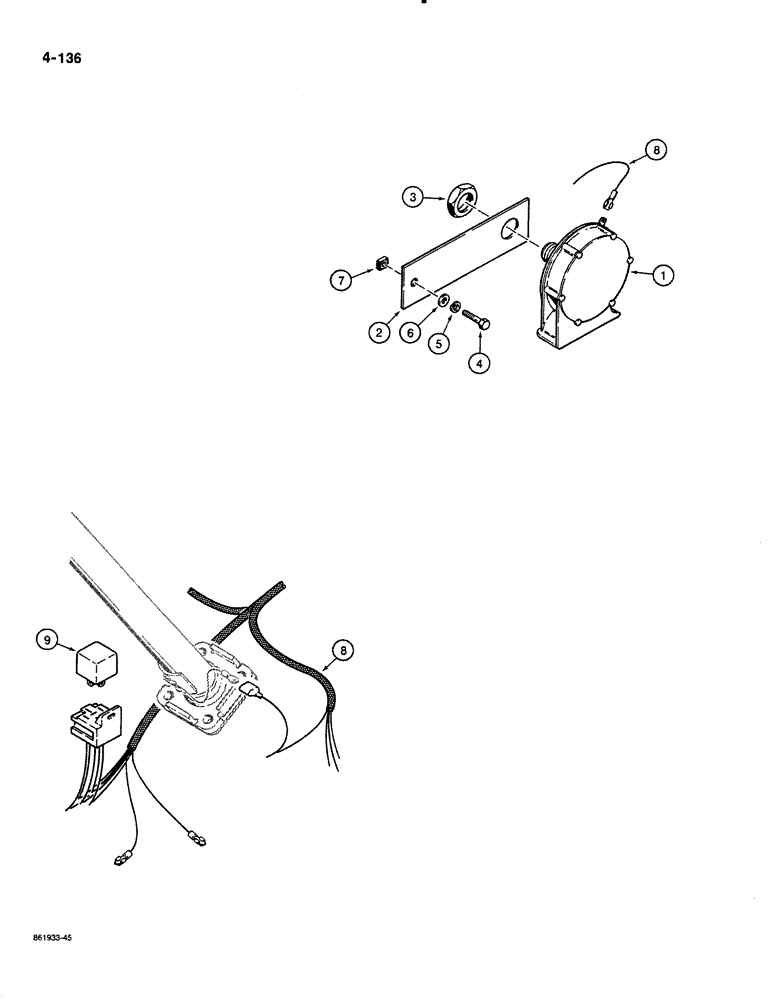

Запчасти Case 580K (04-136) - HORN, MODELS WITH OR WITHOUT TILT/TELESCOPING STEERING COLUMN (04) - ELECTRICAL SYSTEMS

1

D123205

HORN

12 volt

1шт.

2

D137007

BRACKET

horn mounting

1шт.

3

L30866

LOCK NUT

special, horn mounting

1шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

6

195-103

WASHER,5/16"

flat, , plated 5/16"

1шт.

7

25-225

SQUARE NUT,Sq, 5/16"-24

square, 5/16"-18 NC

1шт.

8

REF

INSTRUCTION

HARNESS instrument, front console, see Figure 04-110 for front console instrument harness options

1шт.

9

D128310

RELAY

horn, attaches to front console instrument harness

1шт.

40 amperes is marked on the relay. This is the resistance rating. The inductive rating is 30 amperes. We use this inductive rating in our literature.

1шт.
