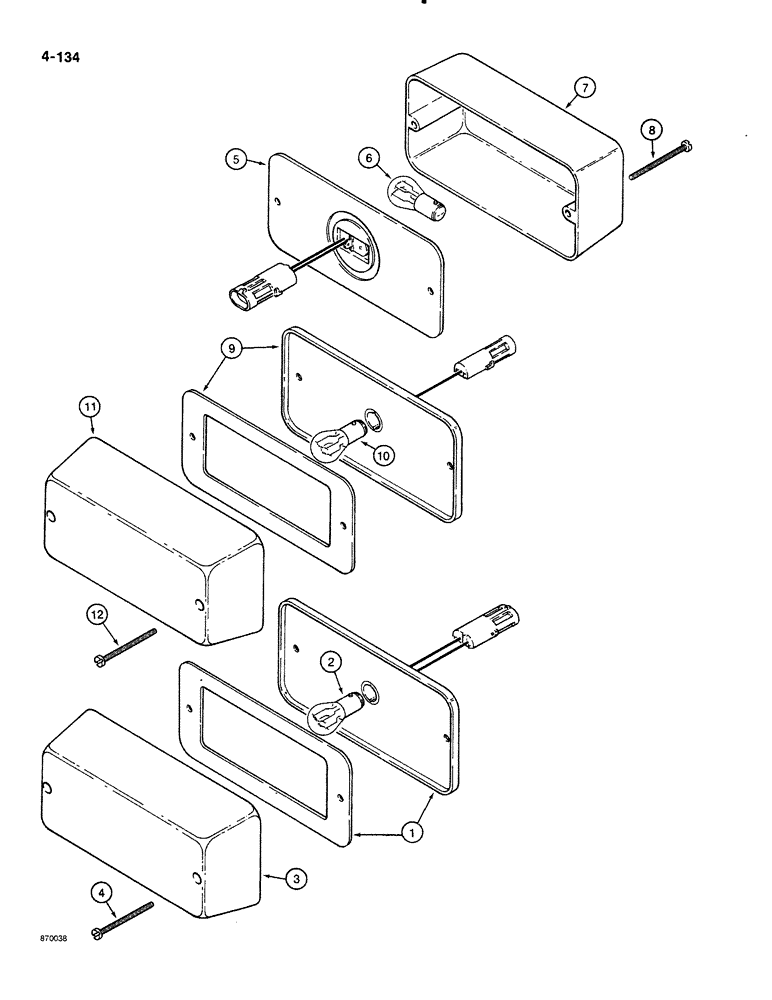

Запчасти Case 580K (04-134) - CAB TRACTOR LAMPS, STOP AND TAIL LAMPS AND TURN SIGNAL AND FLASHER LAMPS (04) - ELECTRICAL SYSTEMS

92260C1

LAMP,12V, 27W, Red

ASSEMBLY stop and tail, with red lens, Includes: Ref. 1 thru 4

2шт.

1

NSS

NOT SOLD SEPARAT

BODY lamp, complete

1шт.

2

9417867

BULB,C6, #1157, 12.8V

No. 1157, stop and tail

1шт.

3

216045C1

LENS

red, lamp

1шт.

4

86982775

SCREW,Slotted Fil Hd, #10-24 x 2"

machine, fillister head, No. 10-24 NC x 2", plated, lens retaining

2шт.

92259C1

LIGHT, WARNING

LAMP ASSEMBLY turn signal and flasher, front, with amber lens, Includes: Ref. 5 thru 8

2шт.

5

NSS

NOT SOLD SEPARAT

BODY AND SOCKET lamp, complete

1шт.

6

9417867

BULB,C6, #1157, 12.8V

No. 1157, turn signal and flasher, front

1шт.

7

130883C1

LENS

amber, lamp

1шт.

8

86982775

SCREW,Slotted Fil Hd, #10-24 x 2"

machine, fillister head, No. 10-24 NC x 2", plated, lens retaining

2шт.

92258C1

LIGHT, WARNING

LAMP ASSEMBLY turn signal and flasher, rear, with amber lens, Includes: Ref. 9 thru 12

2шт.

9

NSS

NOT SOLD SEPARAT

BODY AND SOCKET lamp, complete

1шт.

10

9417866

BULB,C6, #1156, 12.8V

No. 1156, turn signal and flasher, rear

1шт.

11

130883C1

LENS

amber, lamp

1шт.

12

86982775

SCREW,Slotted Fil Hd, #10-24 x 2"

machine, fillister head, No. 10-24 NC x 2", plated, lens retaining

2шт.
