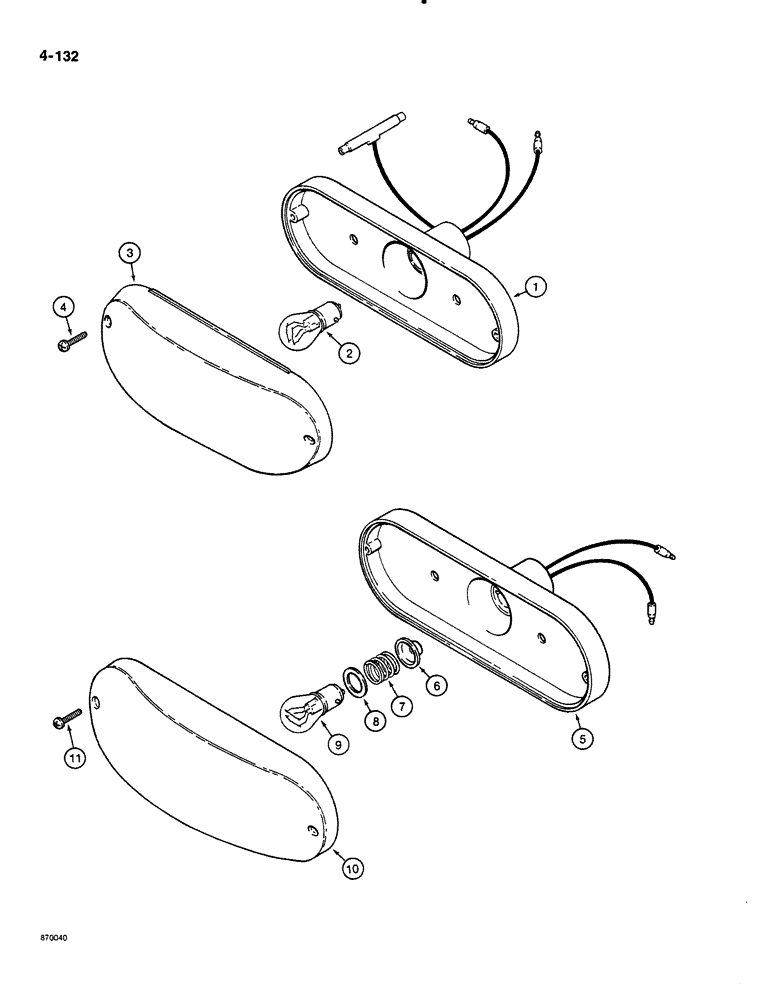

Запчасти Case 580K (04-132) - CANOPY TRACTOR LAMPS, STOP AND TAIL LAMPS AND TURN SIGNAL AND FLASHER LAMPS (04) - ELECTRICAL SYSTEMS

D121152

LAMP,12V

ASSEMBLY stop and tail, with red lens, Includes: Ref. 1 thru 4

2шт.

1

NSS

NOT SOLD SEPARAT

BODY lamp, complete

1шт.

2

T34857

BULB,C6, #1157, 12.8V

No. 1157, stop and tail

1шт.

3

N6836

LENS

red, lamp

1шт.

4

187-1005

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

SCREW round head, self-tapping, No. 6-32 NC x 5/8", plated

2шт.

D135384

LAMP,12V

ASSEMBLY turn signal and flasher, with amber lens, Includes: Ref. 5 thru 11

4шт.

5

NSS

NOT SOLD SEPARAT

BODY AND SOCKET lamp

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL rubber, spring retaining

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING lamp

1шт.

8

NSS

NOT SOLD SEPARAT

INSULATOR lamp

1шт.

9

A41264

BULB,#1156, 12V

Turn signal and flasher #1156, 12V

1шт.

10

N14283

LENS

amber, lamp

1шт.

11

187-1005

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

SCREW round head, self-tapping, No. 6-32 NC x 5/8", plated

2шт.
