Запчасти Case 580K (04-130) - CAB TRACTOR LAMPS, FRONT DRIVING, REAR FLOOD AND OPTIONAL FRONT AND REAR WORK LAMPS (04) - ELECTRICAL SYSTEMS

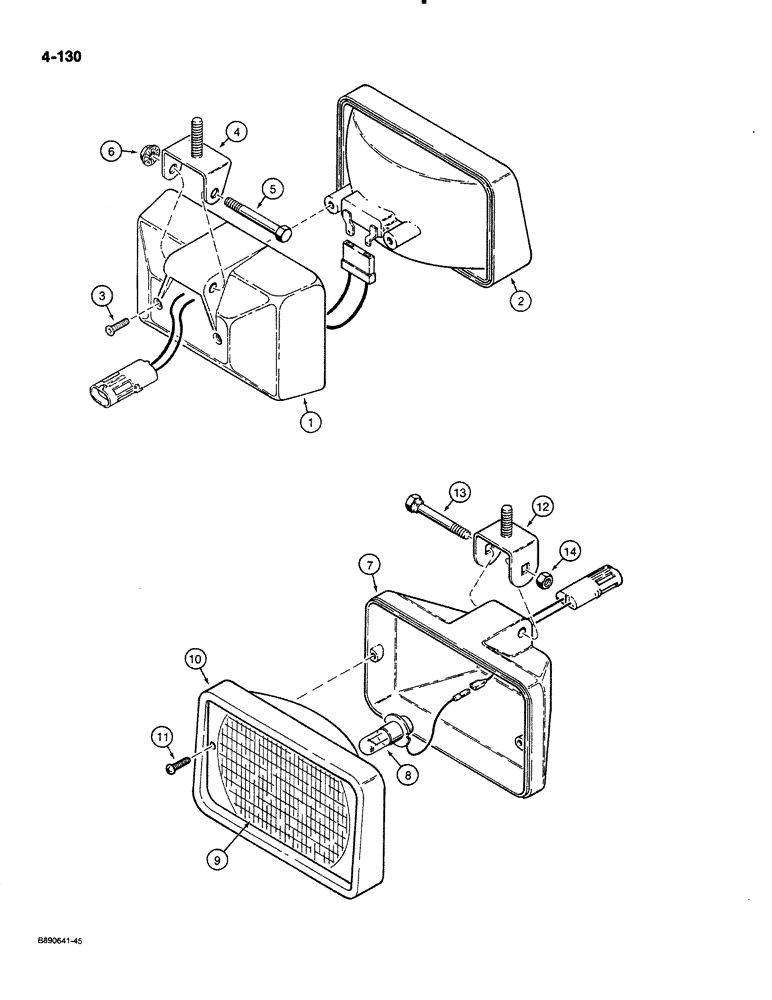

Схема запчастей Case 580K - (04-130) - CAB TRACTOR LAMPS, FRONT DRIVING, REAR FLOOD AND OPTIONAL FRONT AND REAR WORK LAMPS (04) - ELECTRICAL SYSTEMS
12
13
8
11
2
3
5
7
14
9
10
1
4
6

Артикул

Название

Примечание

Количество

R54411

LAMP

ASSEMBLY front driving, may receive either Hobbs or ABL complete lamp assembly, see below for service, Includes: P/N A187666 and Ref. 1 thru 14

2шт.

A187666

LIGHT ASSY.

LAMP ASSEMBLY, Hobbs, with glare guard, with 3/8" mounting stud, Includes: Ref. 1 thru 6

2шт.

Order Lamp Assembly P/N R54411

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING lamp

1шт.

2

A187912

LAMP,12V, 50W

sealed beam, Hobbs, designated on lens as SW

1шт.

3

187-625

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW flat, self-tapping, No. 8 x 1/2", sealed beam to housing

2шт.

4

A187914

BRACKET

mounting, lamp

1шт.

5

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5, Housing to bracket

1шт.

6

131-934

NUT,Flg, USR, 1/4"-20

hex, serrated flange, self-locking, 1/4" NC

1шт.

92264C1

LAMP

ASSEMBLY, ABL, without glare guard, with 10 mm mounting stud, Includes: Ref. 7 thru 14

2шт.

7

NSS

NOT SOLD SEPARAT

HOUSING lamp

1шт.

8

1312210C1

BULB

lamp

1шт.

9

1983290C1

LENS

lamp

1шт.

10

1964806C1

BEZEL

RETAINER lens

1шт.

11

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW pan, self-tapping, No. 8-16 x 3/4", lens to housing

2шт.

12

A187915

BRACKET

mounting, lamp

1шт.

13

931418R1

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

shoulder, hex, 8 mm x 45 mm, housing to bracket

1шт.

14

30382R1

NUT,M8 x 1.25, Cl 10

NUT hex, self-locking, 8 mm, class 10.9

1шт.

R54412

LAMP, WORK

LAMP ASSEMBLY rear flood and optional front and rear work lamps, may receive either Hobbs or ABL complete lamp assembly, see below for service, Includes: P/N A187665 and Ref. 1 thru 14

2-6шт.

A187665

LIGHT ASSY.

LAMP ASSEMBLY, Hobbs, with glare guard, with 3/8" mounting stud, Includes: Ref. 1 thru 6

2-6шт.

Order Lamp Assembly P/N R54412

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING lamp

1шт.

2

A187911

LAMP

sealed beam, Hobbs, designated on lens as SW

1шт.

3

187-625

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW flat, self-tapping, No. 8 x 1/2", sealed beam to housing

2шт.

4

A187914

BRACKET

mounting, lamp

1шт.

5

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5, Housing to bracket

1шт.

6

131-934

NUT,Flg, USR, 1/4"-20

hex, serrated flange, self-locking, 1/4" NC

1шт.

92263C1

LIGHT ASSY.

LAMP ASSEMBLY, ABL, without glare guard, with 10 mm mounting stud, Includes: Ref. 7 thru 14

2-6шт.

7

NSS

NOT SOLD SEPARAT

HOUSING lamp

1шт.

8

1312210C1

BULB

lamp

1шт.

9

1964807C1

LAMP BASE

LENS lamp

1шт.

10

1964806C1

BEZEL

RETAINER lens

1шт.

11

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW pan, self-tapping, No. 8-16 x 3/4", lens to housing

2шт.

12

A187915

BRACKET

mounting, lamp

1шт.

13

931418R1

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

shoulder, hex, 8 mm x 45 mm, housing to bracket

1шт.

14

30382R1

NUT,M8 x 1.25, Cl 10

NUT hex, self-locking, 8 mm, class 10.9

1шт.
