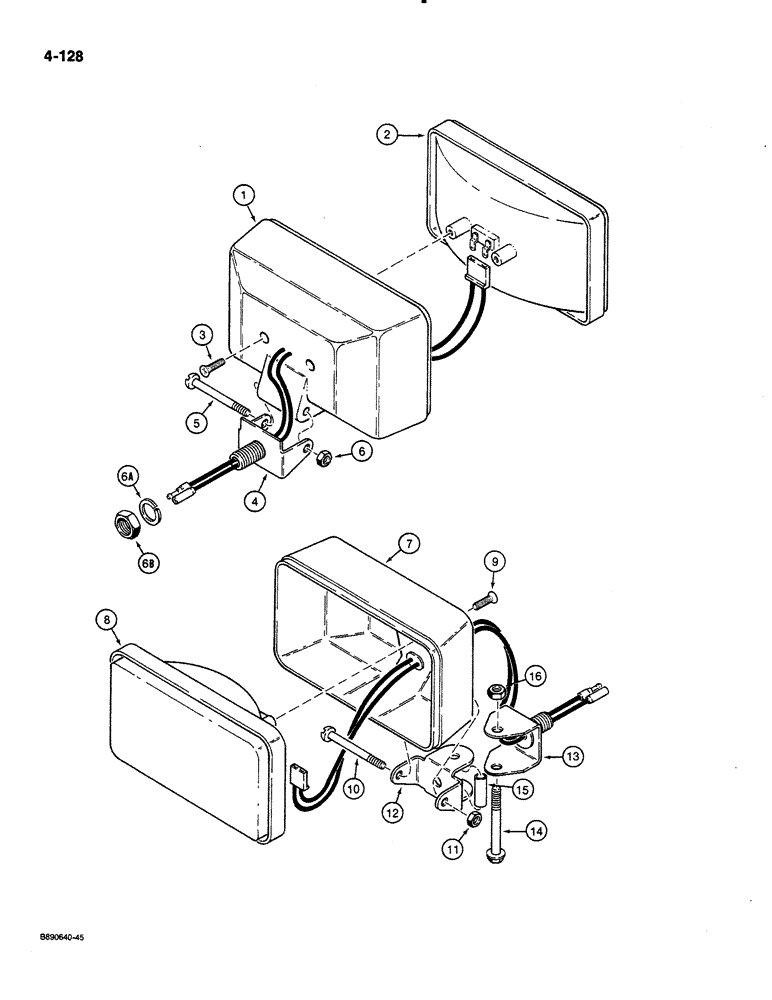

Запчасти Case 580K (04-128) - CANOPY TRACTOR LAMPS, FRONT DRIVING, REAR FLOOD, AND OPTIONAL FRONT AND REAR WORK LAMPS (04) - ELECTRICAL SYSTEMS

D132681

LAMP,Halogen, 12V, 50W, Clear

ASSEMBLY front driving, Includes: Ref. 1 thru 6B

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING lamp

1шт.

2

91946C1

LAMP

BULB sealed beam

1шт.

3

187-130

SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"

SCREW self-tapping, pan head Phillips, No. 10-16 x 5/8"

2шт.

4

N14285

SUPPORT

BRACKET lamp

1шт.

5

182-211

SCREW,Sl Pan Hd, 1/4" - 20 x 2"

machine, pan head slotted, 1/4"-20 NC x 2", housing to bracket

1шт.

6

86625061

NUT,1/4"-20, GB

NUT hex, self-locking, 1/4"-20 NC, plated

1шт.

6a

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

6b

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

6b

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

D132682

HEADLIGHT,Halogen, 12V, 50W, Clear

LAMP ASSEMBLY rear flood and optional front and rear work lamps, Includes: Ref. 7 thru 16

2-6шт.

7

NSS

NOT SOLD SEPARAT

HOUSING lamp

1шт.

8

91947C1

LAMP

BULB sealed beam

1шт.

9

187-130

SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"

SCREW self-tapping, pan head Phillips, No. 10-16 x 5/8"

2шт.

10

182-211

SCREW,Sl Pan Hd, 1/4" - 20 x 2"

machine, pan head slotted, 1/4"-20 NC x 2", housing to bracket

1шт.

11

86625061

NUT,1/4"-20, GB

NUT hex, self-locking, 1/4"-20 NC, plated

1шт.

12

NSS

NOT SOLD SEPARAT

BRACKET housing to lower bracket

1шт.

13

N14284

BRACKET

base, lamp mounting

1шт.

14

121-119

BOLT,Hex Flg, 5/16"-18 x 2 1/4", Serr

1шт.

15

A52219

SPACER

bracket

1шт.

16

231-1445

NUT,5/16"-18, GB

NUT hex, self-locking, 5/16"-18 NC, plated

1шт.
