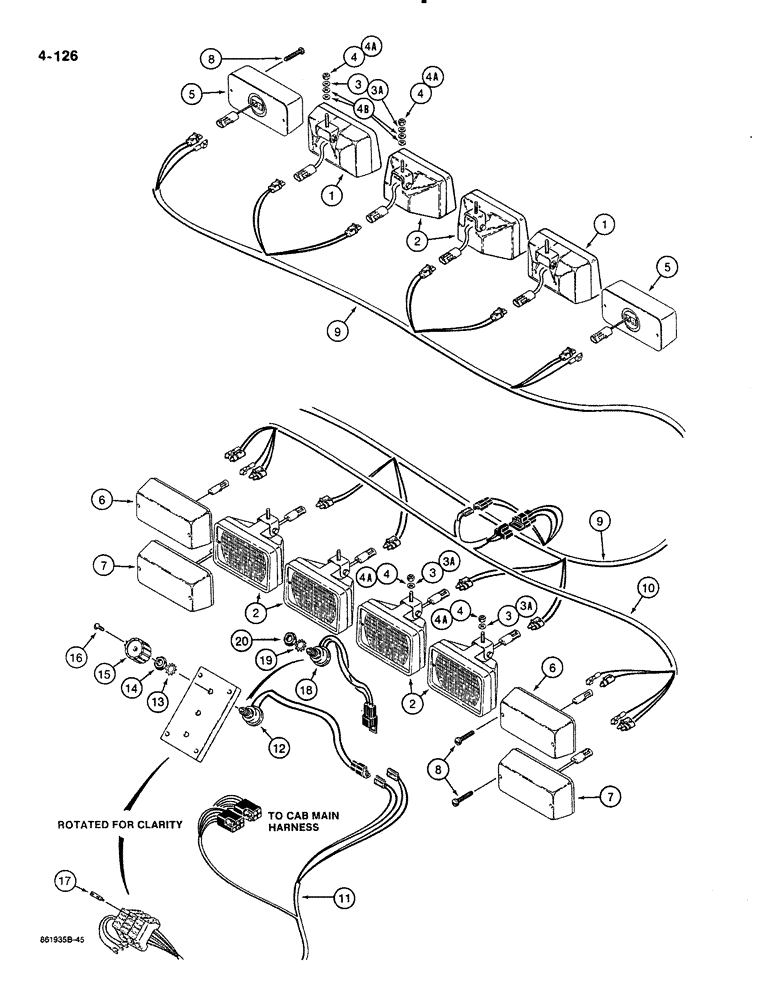

Запчасти Case 580K (04-126) - TRACTOR LAMP ELECTRICAL CIRCUIT, WITH CAB (04) - ELECTRICAL SYSTEMS

1

R54411

LAMP

ASSEMBLY front driving, see Figure 04-130

2шт.

2

R54412

LAMP, WORK

LAMP ASSEMBLY rear flood, outer, and optional front and rear work lamps, center, see Figure 04-130

2-6шт.

3

195-525

WASHER,3/8", SAE

flat, 3/8", plated, used with Hobbs (SW) lamps

4-8шт.

3a

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

Used with ABL lamps M10 x 20 x 2

4-8шт.

4

131-203

LOCK NUT,3/8"-16, GB, LH

NUT hex, self-locking, 3/8"-16 NC, plated, used with Hobbs (SW) lamps

4-8шт.

4a

831-1110

LOCK NUT

hex, self-locking, 10 mm-1.5, used with ABL lamps

4-8шт.

4b

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

Hex, Special, Used in addition to flat washer and nut on some models Push, Bolt Retainer, 3/8" x 25/32"

4-16шт.

5

92259C1

LIGHT, WARNING

LAMP ASSEMBLY flasher and turn signal, front of cab only, see Figure 04-134

2шт.

6

92258C1

LIGHT, WARNING

LAMP ASSEMBLY flasher and turn signal, rear of cab only, see Figure 04-134

2шт.

7

92260C1

LAMP,12V, 27W, Red

ASSEMBLY stop and tail, see Figure 04-134

2шт.

8

132080

CLAMP

machine, fillister head, No. 10-24 NC x 2", plated

12шт.

9

R54147

HARNESS

cab, main, used on models with two-position lamp switch for single control of front and rear lamps, if used, attaches to side console instrument harness

1шт.

9a

A187759

HARNESS

cab, main, used on models with four-position lamp switch for separate switching of front and rear lamps, if used, not shown, attaches to side console instrument harness

1шт.

10

R53636

HARNESS

rear lamp, attaches to main cab harness

1шт.

11

REF

INSTRUCTION

HARNESS instrument, side console, see Figure 04-112 for harness options

1шт.

D138377

SWITCH

ASSEMBLY two position, single control of optional front and rear work lamps, used with P/N R54147 harness, Ref. 9, Includes: Ref. 12 thru 14

1шт.

12

NSS

NOT SOLD SEPARAT

SWITCH optional front and rear work lamps

1шт.

13

193-58

LOCK WASHER,Ext Tooth, 1/2"

WASHER lock, external tooth, 1/2", plated

1шт.

14

129-125

NUT,1/2"-20, G5

1шт.

15

A141735

KNOB

optional work lamp switch, see Figure 09-638 for work lamp symbol decal

1шт.

16

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

machine, pan head slotted, No. 8-32 NC x 1/2", plated

1шт.

17

A149802

FUSE

20 amperes, mounts in fuse holder in side console harness

1шт.

D141394

SWITCH

ASSEMBLY four-position, separate switching of optional front and rear work lamps, used with P/N A187759 harness, Ref. 9A, Includes: Ref. 18 thru 20

1шт.

18

NSS

NOT SOLD SEPARAT

SWITCH optional front and rear work lamps

1шт.

19

193-58

LOCK WASHER,Ext Tooth, 1/2"

WASHER lock, external tooth, 1/2", plated

1шт.

20

129-125

NUT,1/2"-20, G5

1шт.
