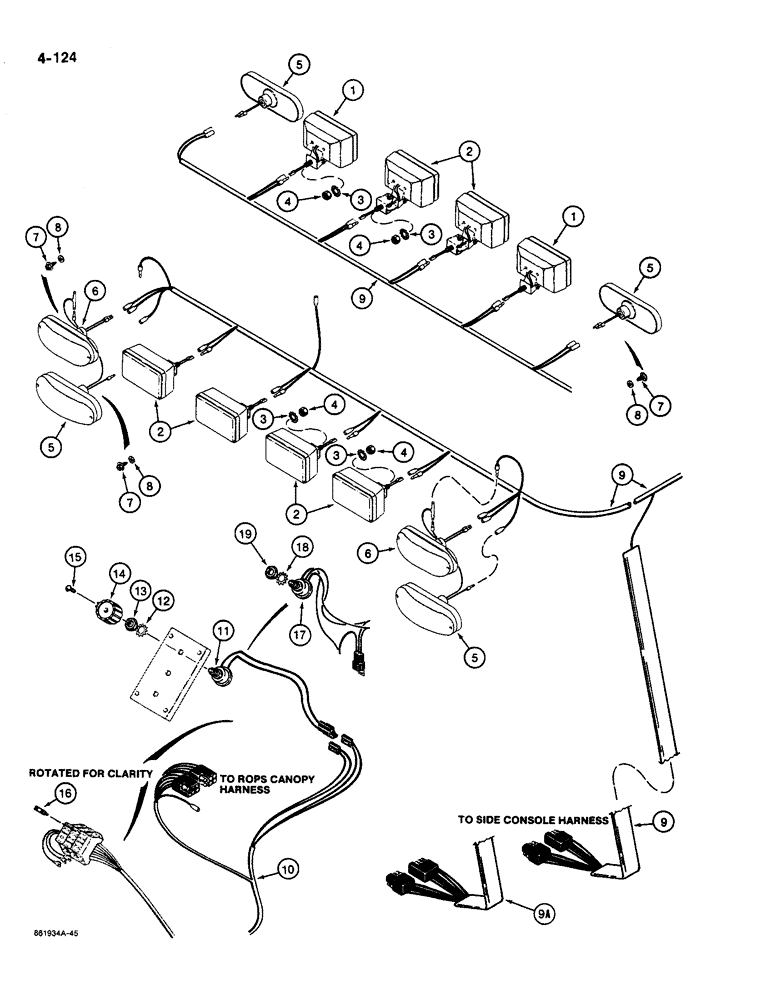

Запчасти Case 580K (04-124) - TRACTOR LAMP ELECTRICAL CIRCUIT, WITH CANOPY (04) - ELECTRICAL SYSTEMS

1

D132681

LAMP,Halogen, 12V, 50W, Clear

ASSEMBLY front driving, outer, see Figure 04-128

2шт.

2

D132682

HEADLIGHT,Halogen, 12V, 50W, Clear

LAMP ASSEMBLY rear flood, outer, and optional front and rear work lamps, center, see Figure 04-128

2-6шт.

3

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

4-8шт.

4

129-145

JAM NUT,Jam, 1/2"-13, G5

4-8шт.

5

D135384

LAMP,12V

ASSEMBLY turn signal and flasher, front and rear, amber, see Figure 04-132

4шт.

6

D121152

LAMP,12V

ASSEMBLY stop and tail, rear, red, see Figure 04-132

2шт.

7

187-576

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW hex washer head, slotted, self-tapping, No. 10-24 x 3/8", plated, lamp base to ROPS canopy frame

12шт.

8

195-513

WASHER,#10

flat, No. 10, plated

12шт.

9

D132221

HARNESS

ROPS canopy, lamps, used on models with a two-position lamp switch for single control of front and rear lamps, if used, attaches to side console instrument harness, see Figure 09-626, for harness cover that mounts to the ROPS canopy

1шт.

9a

D141380

HARNESS

ROPS canopy, lamps, used on models with a four-position lamp switch for separate switching of front and rear lamps, if used, attaches to side console instrument harness, see Figure 09-626 for harness cover that mounts to the ROPS canopy

1шт.

10

REF

INSTRUCTION

HARNESS instrument, side console, see Figure 04-112 for harness options

1шт.

D138377

SWITCH

ASSEMBLY two-position, single control of optional front and rear work lamps, used with P/N D132221 harness, Ref. 9, Includes: Ref. 11 thru 13

1шт.

11

NSS

NOT SOLD SEPARAT

SWITCH optional front and rear work lamps

1шт.

12

193-58

LOCK WASHER,Ext Tooth, 1/2"

WASHER lock, external tooth, 1/2", plated

1шт.

13

129-125

NUT,1/2"-20, G5

1шт.

14

A141735

KNOB

optional work lamp switch, see Figure 09-638 for work lamp symbol decal

1шт.

15

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

machine, pan head slotted, No. 8-32 NC x 1/2", plated

1шт.

16

A149802

FUSE

20 amperes, mounts in fuse holder in side console harness

1шт.

D141394

SWITCH

ASSEMBLY four-position, separate switching of optional front and rear work lamps, used with P/N D141380 harness, Ref. 9A, Includes: Ref. 17 thru 19

1шт.

17

NSS

NOT SOLD SEPARAT

SWITCH optional front and rear work lamps

1шт.

18

193-58

LOCK WASHER,Ext Tooth, 1/2"

WASHER lock, external tooth, 1/2", plated

1шт.

19

129-125

NUT,1/2"-20, G5

1шт.
