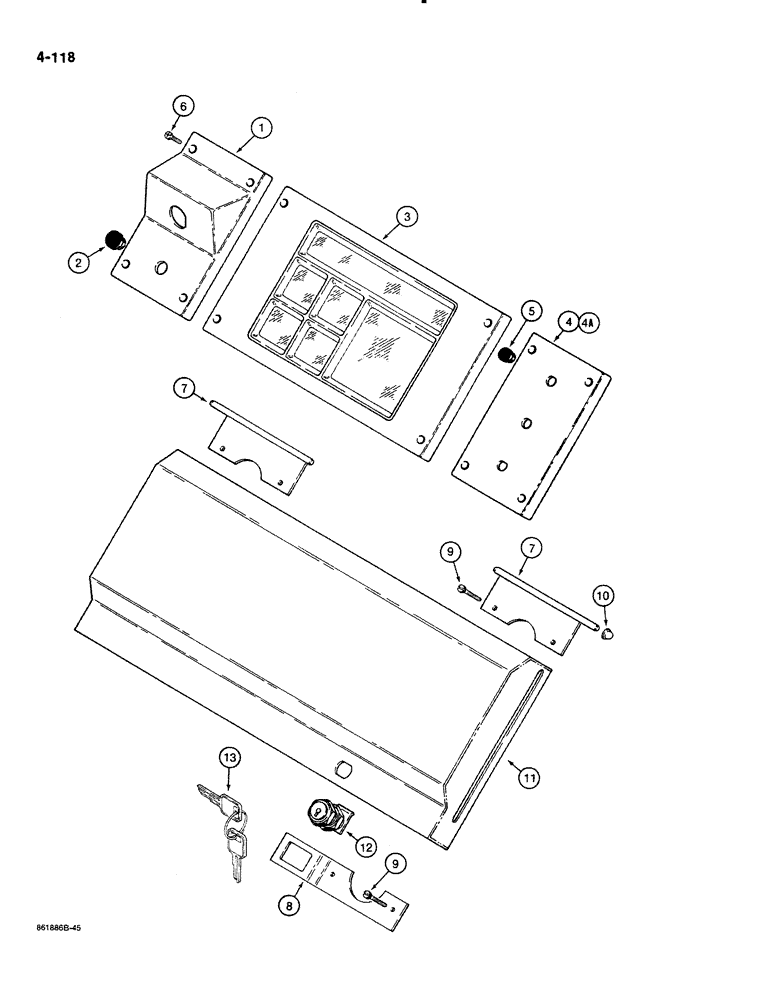

Запчасти Case 580K (04-118) - SIDE INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

1

D135675

PLATE

front, key switch

1шт.

2

353-406

PLUG,Dome, .625" hole, Nylon

nylon, 5/8", not required on models with cold start

1шт.

3

REF

INSTRUCTION

CLUSTER ASSEMBLY instrument, see Figure 04-120

1шт.

See Figure 04-114 for electronic instrument control center.

1шт.

4

D135676

PLATE

rear, accessory switches, used on models with a two position lamp switch for single control of front and rear lamps, if used, see Figure 09-638 for decals

1шт.

4a

D141501

LARGE PLATE

PLATE rear, accessory switches, used on models with a four position lamp switch for separate switching of front and rear lamps, if used, see Figure 09-638 for decals

1шт.

5

353-404

PLUG,Dome, .500" hole, Nylon

If used Dome, .500" hole, Nylon

3шт.

6

182-550

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, pan Phillips head, slotted, No. 10-24 NC x 1/2", plated

6-12шт.

7

D136695

BRACKET

upper, front and rear switch plates, anti-vandalism, if used

2шт.

8

D136692

BRACKET

lower, front switch plate, anti-vandalism, if used

1шт.

9

182-597

SCREW,Cross Pan Hd, #10-24 x 7/8"

machine, pan head slotted, No. 10-24 NC x 7/8", black

6шт.

10

131-868

PUSH-ON NUT,5/16", Sq, Push-on

push-on type with cap, 5/16"

2шт.

11

D136696

COVER

side instrument panel, anti-vandalism, if used

1шт.

12

D136738

LOCK

ASSEMBLY, includes two keys, anti-vandalism cover, if used, Includes: Ref. 13's

1шт.

Does not include keys per print

1шт.

13

N14441

KEY

cover lock, used on tractor P.I.N. 17417801 thru 17417850 only

2шт.

13

N14440

KEY

cover lock

2шт.
