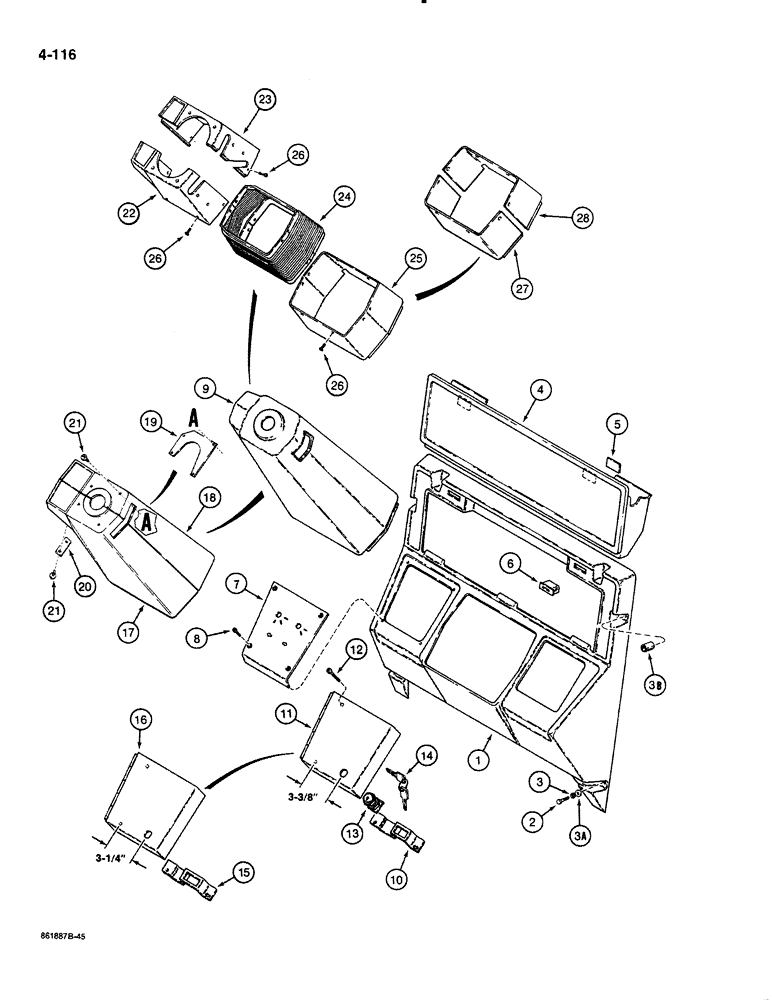

Запчасти Case 580K (04-116) - FRONT INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

1

D134389

BRACKET

PANEL instrument, front

1шт.

2

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

3a

195-521

WASHER,5/16", SAE

flat, 5/16", plated

6шт.

3b

D35217

BUSHING

SPACER bolt, upper panel

2шт.

4

D134256

BOX

COMPARTMENT storage, operators manual, see Figure 09-638 for decal

1шт.

5

D135903

PLATE

steel, striker

2шт.

6

D127335

CATCH

Retainer, Magnetic, Storage compartment

2шт.

7

D134306

PLATE

switch mounting

1шт.

8

182-550

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, pan Phillips head, slotted, No. 10-24 NC x 1/2", plated

4шт.

9

D136376

COVER

one piece, steering column, see Figure 09-638 for arrow decal, no longer available, order P/N D143963 cover, Ref. 17 thru 21

1шт.

10

D138160

BRACKET

lower, switch plate, anti-vandalism, no longer used, order P/N D140938 bracket

1шт.

11

D136737

COVER

front instrument panel, 3-3/8" (86 mm) between holes, anti-vandalism, no longer used, order P/N D140938 bracket and P/N D140937 cover

1шт.

12

182-597

SCREW,Cross Pan Hd, #10-24 x 7/8"

machine, pan head slotted, No. 10-24 NC x 7/8"

3шт.

13

D136738

LOCK

ASSEMBLY, includes two keys, anti-vandalism cover, if used, Includes: Ref. 14's

1шт.

Does not include keys per print

1шт.

14

N14441

KEY

cover lock, used on tractor PIN 17417801 thru 17417850 only

2шт.

14

N14440

KEY

cover lock

2шт.

15

D140938

BRACKET

lower, switch plate, anti-vandalism, if used

1шт.

16

D140937

COVER

front instrument panel, 3-1/4" (83 mm) between holes, anti-vandalism, if used

1шт.

D143963

COVER

ASSEMBLY two piece, steering column, see Figure 09-638 for arrow decal, Includes: Ref. 17 thru 21

1шт.

17

NSS

NOT SOLD SEPARAT

COVER steering column, rear

1шт.

18

NSS

NOT SOLD SEPARAT

COVER steering column, front

1шт.

19

D143710

LARGE PLATE

PLATE retaining, upper

1шт.

20

D143711

LARGE PLATE

PLATE retaining, side

1шт.

21

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW self-tapping, special

6шт.

22

D138633

COVER

plastic, upper, rear, special parts used on models with tilt/telescoping steering column

1шт.

23

D138632

COVER

plastic, upper, front, special parts used on models with tilt/telescoping steering column

1шт.

24

D139219

BOOT

tilt/telescoping steering column, special parts used on models with tilt/telescoping steering column

1шт.

25

D139324

COVER

plastic, lower, one piece, no longer available, order P/N D138634 cover and P/N D138635 cover, Ref. 27 and 28, special parts used on models with tilt/telescoping steering column

1шт.

26

182-550

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, pan Phillips head, slotted, No. 10-24 NC x 1/2", plated, special parts used on models with tilt/telescoping steering column

22шт.

27

D138634

COVER

plastic, lower, rear, special parts used on models with tilt/telescoping steering column

1шт.

28

D138635

COVER

plastic, lower, front, special parts used on models with tilt/telescoping steering column

1шт.
