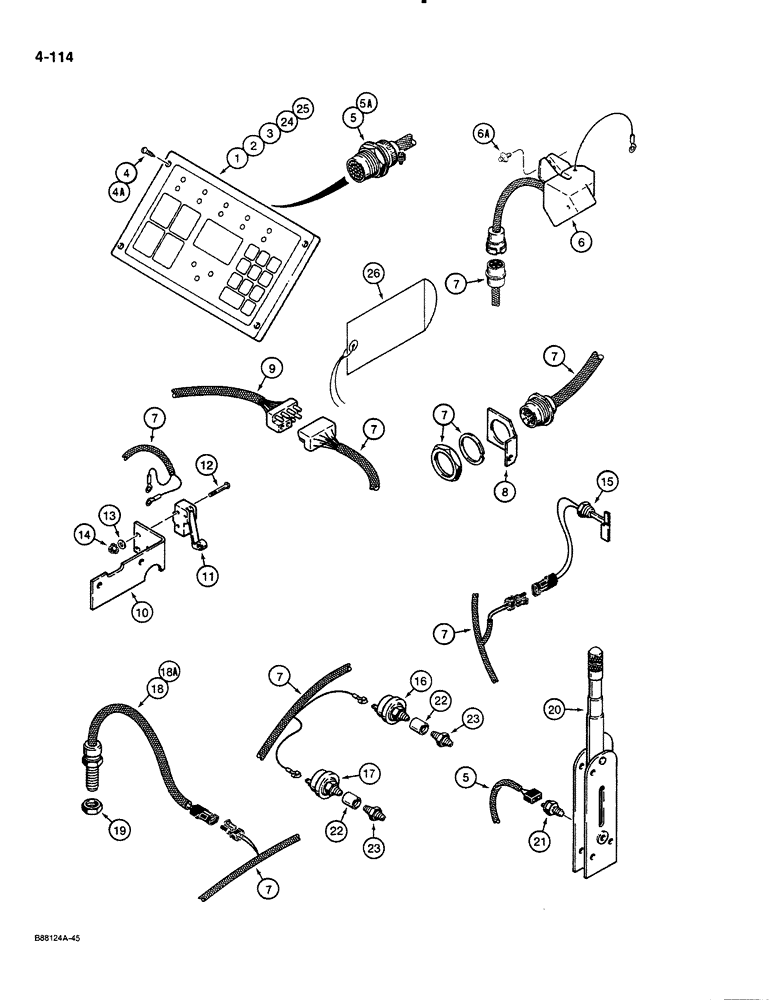

Запчасти Case 580K (04-114) - SPECIAL PARTS USED ON MODELS WITH ELECTRONIC INSTRUMENT CONTROL CENTER (04) - ELECTRICAL SYSTEMS

D125952

CLUSTER

electronic instrument control center, no longer available, order P/N A187897 cluster, Ref. 24, Includes: Ref. 1 thru 4

1шт.

1

NSS

NOT SOLD SEPARAT

CLUSTER electronic

1шт.

2

28628R1

BULB,C2F, #73, 14V

GE trade No. 73

6шт.

3

N14236

SOCKET

lamp

6шт.

4

N14237

SCREW,Spcl

special, replace with P/N 182-559 screw, Ref. 4A

4шт.

4a

182-559

SCREW,Cross Pan Hd, #10-24 x 3/4"

machine, pan Phillips head, No. 10 NC x 3/4"

4шт.

5

D140702

HARNESS

side console, used on models with a two-position lamp switch for single control of front and rear lamps

1шт.

5a

D141654

HARNESS

side console, used on models with a four-position lamp switch for separate switching of front and rear lamps

1шт.

A187819

KIT security module, includes instructions, Includes: Ref. 6 and 6A

1шт.

6

A187664

CONTROL BLOCK

MODULE security, mounts on engine fuel injection pump

1шт.

6a

A187821

BOLT

security, special

2шт.

7

D140703

HARNESS

main, engine, no longer includes nut and washer, not required

1шт.

8

D141158

BRACKET

connector, mounts by side console, if used

1шт.

9

D140701

HARNESS

front console

1шт.

10

D138811

BRACKET

switch mounting

1шт.

11

D137363

SWITCH

four-wheel drive, mounts on four-wheel drive control linkage

1шт.

12

182-530

SCREW,Sl Pan Hd, #6 - 32 x 1 1/4"

machine, pan head slotted, No. 6-32 NC x 1-1/4", plated

2шт.

13

195-507

WASHER,#6

flat, No. 6, plated

2шт.

14

193-1003

NUT,Keps, w/LW,#6-32

AND LOCK WASHER, No. 6-32 NC, plated

2шт.

15

A187668

SWITCH

oil level, mounts to right-hand chassis upright

1шт.

16

92243C1

IGNITION SWITCH

SWITCH oil pressure, 15 psi, replaces standard oil pressure switch on engine block

1шт.

17

92325C1

SWITCH

oil pressure, 40 psi, replaces existing plug in engine block, rear switch on left-hand side of engine

1шт.

18

D141264

SENSOR

SWITCH magnetic pickup, 11-13/16" (300 mm) long, replaces existing plug in upper left-hand flywheel housing on left-hand side of engine and top rear cover plate on transaxle housing, no longer used, order P/N A187584, switch

2шт.

18a

A187584

SENSOR

SWITCH magnetic pickup, 8-9/16" (217 mm) long, replaces existing plug in upper left-hand flywheel housing on left-hand side of engine and top rear cover plate on transaxle housing

2шт.

19

129-168

JAM NUT,Jam, 3/4"-10, G5

hex, jam, 3/4"-16 NF, plated, magnetic pickup

2шт.

20

D139909

LEVER ASSY.

LEVER hand brake, see Figure 07-268, for component parts

1шт.

21

D136514

SWITCH

parking brake

1шт.

22

221-335

COUPLING,Pipe, 1/8" NPT

1/8" NP

2шт.

23

217-1079

HYD CONNECTOR,1/8" - 27 NPTF

CONNECTOR straight, male

2шт.

A187820

KIT

cluster, electronic instrument control center, includes instructions, Includes: Ref. 24 and 25

1шт.

24

A187897

CLUSTER

electronic instrument control center, Includes: Ref. 25

1шт.

25

28628R1

BULB,C2F, #73, 14V

GE trade No. 73

6шт.

26

D143897

ENVELOPE security module ID, see your J I Case Dealer for module ID number

1шт.
