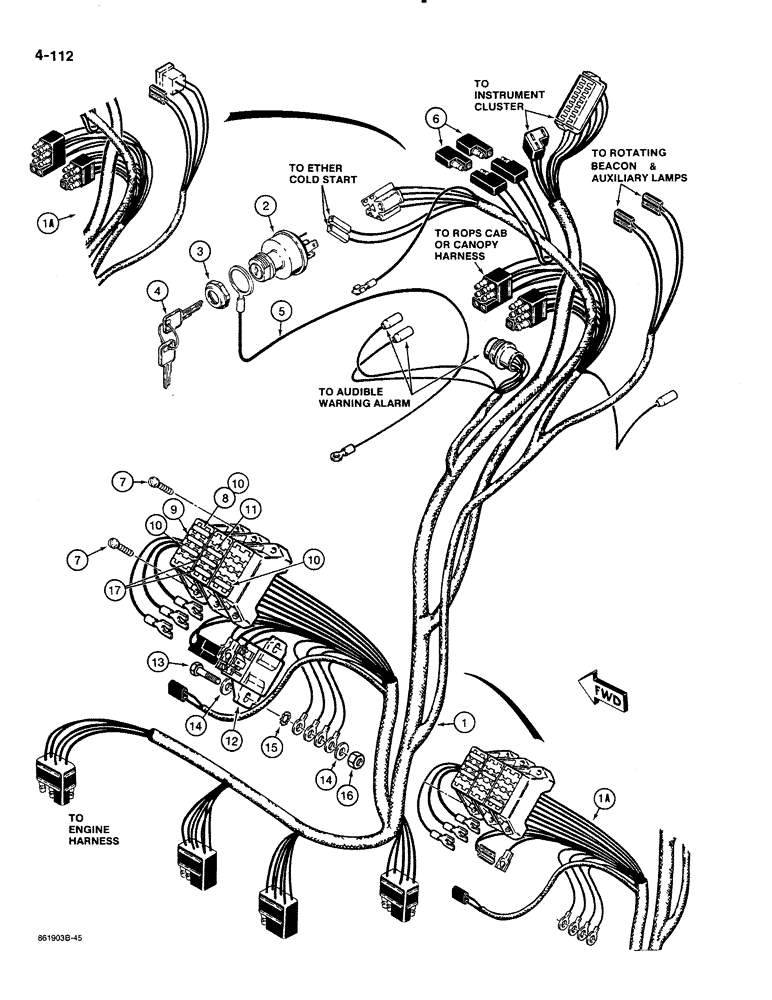

Запчасти Case 580K (04-112) - SIDE CONSOLE WIRING HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

D138665

HARNESS

side console, used on models with a two-position lamp switch for single control of front and rear lamps, used on models without electronic instrument control center, if used

1шт.

See Figure 04-114 for special parts used on models with electronic instrument control center.

1шт.

Harness for a 4 position lamp switch

1шт.

1a

D141274

HARNESS

side console, used on models with a four-position lamp switch for separate switching of front and rear lamps, used on models without electronic instrument control center, if used

1шт.

See Figure 04-114 for special parts used on models with electronic instrument control center.

1шт.

Harness for a 2 positon lamp switch (P.A.)

1шт.

D134737

IGNITION SWITCH

SWITCH ASSEMBLY key, includes keys, Includes: Ref. 2, 3 and 4

1шт.

2

NSS

NOT SOLD SEPARAT

SWITCH key, without keys

1шт.

The connector body which Ref. 2 plugs into, shown in illustration, is P/N L79667, plug only.

1шт.

3

A77314

NUT

key switch mounting

1шт.

4

A77313

SET OF 2 KEYS

Metal Without Padding

1шт.

5

D135851

ELECTRICAL WIRE

WIRE ground, key switch, uses existing hardware

1шт.

6

L71879

DIODE ELEMENT,400V, 3A

DIODE harness

2шт.

7

187-580

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

SCREW hex slotted washer head, self-tapping, No. 10- 32 x 3/4", plated

6шт.

245435C1

FUSE HOLDER

Fuse Holder

3шт.

8

A149798

FUSE

5 amperes, used with P/N D138665 harness

1шт.

The fuse block for Ref. 8, 9, 10 and 11 is P/N 245435C1, qty of 3 req'd. The terminal strips that go inside this fuse block are : 14-16 gauge P/N 506504C1 and 10-12 gauge P/N 506498C1. See service bulletin NHE SB 081 89 for illustration.

1шт.

9

A149803

FUSE,25 Amp

25 amperes

1шт.

The fuse block for Ref. 8, 9, 10 and 11 is P/N 245435C1, qty of 3 req'd. The terminal strips that go inside this fuse block are : 14-16 gauge P/N 506504C1 and 10-12 gauge P/N 506498C1. See service bulletin NHE SB 081 89 for illustration.

1шт.

10

A149800

FUSE,10 Amp

10 amperes, two used with P/N D138665 harness, three used with P/N D141274 harness

2-3шт.

The fuse block for Ref. 8, 9, 10 and 11 is P/N 245435C1, qty of 3 req'd. The terminal strips that go inside this fuse block are : 14-16 gauge P/N 506504C1 and 10-12 gauge P/N 506498C1. See service bulletin NHE SB 081 89 for illustration.

1шт.

11

A149801

FUSE,Lt Blue, 15 Amp

15 amperes

1шт.

The fuse block for Ref. 8, 9, 10 and 11 is P/N 245435C1, qty of 3 req'd. The terminal strips that go inside this fuse block are : 14-16 gauge P/N 506504C1 and 10-12 gauge P/N 506498C1. See service bulletin NHE SB 081 89 for illustration.

1шт.

12

D144471

RELAY

power

1шт.

13

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

15

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER lock, internal/external tooth, 1/4", plated, lower mounting hole only

1шт.

16

193-1006

NUT,Keps, w/LW, 1/4"-20

AND LOCK WASHER, 1/4"- 20 NC, plated

2шт.

17

A149801

FUSE,Lt Blue, 15 Amp

15 ampere

2шт.
