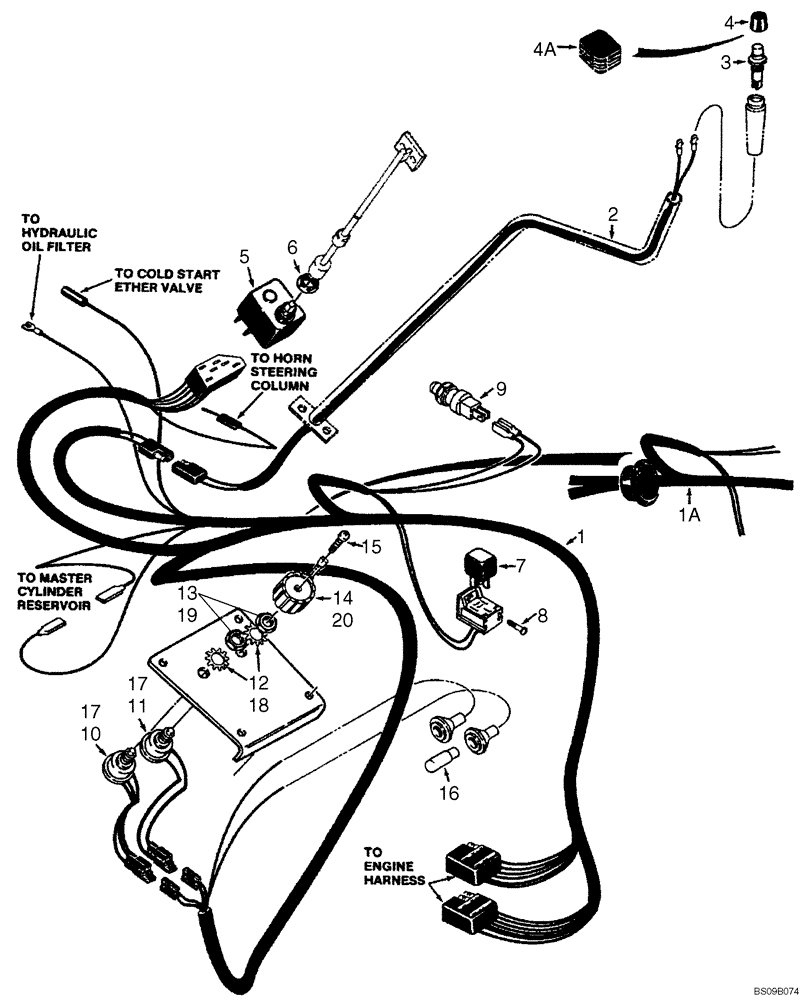

Запчасти Case 580K (04-110) - FRONT CONSOLE WIRING HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

D138664

HARNESS

front console, without molded grommet, used on models with fuse block in engine harness and without electronic instrument control center, if used

1шт.

See Figure 04-114 for special parts used on models with electronic instrument control center.

1шт.

1a

D141273

HARNESS

front console, with molded grommet, used on models without fuse block in engine harness and without electronic instrument control center, if used

1шт.

See Figure 04-114 for special parts used on models with electronic instrument control center.

1шт.

2

D140063

HARNESS

loader control lever, to fast cycle switch

1шт.

3

D141486

SWITCH

fast cycle, loader control lever

1шт.

4

D138252

BOOT

COVER switch, if used

1шт.

4a

D140149

PROTECTOR

COVER switch, if used

1шт.

5

A77184

SWITCH

turn signal, Hobbs, replaces switch labeled as Lucas on some models

1шт.

This switch includes flasher. Refer to service bulletin NLB SB 022 91 for longer life replacement flasher.

1шт.

6

D91352

JAM NUT

hex, 3/4"-20 National Extra Fine, special

1шт.

7

D128310

RELAY

30 amperes, used on models with horn

1шт.

40 amperes is marked on the relay. This is the resistance rating. The inductive rating is 30 amperes. We use this inductive rating in our literature.

1шт.

8

187-576

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW hex washer head, slotted, self-tapping, No. 10-24 x 3/8", plated, harness relay socket mounting

1шт.

9

D128886

SWITCH

brake lamps, includes nut

1шт.

10

D138376

SWITCH

ASSEMBLY front driving and rear flood lamps, three position with octagonal shaft, Includes 11 - 13; No Longer Available, For Service Order 133820A1 Switch and D149932 Knob

1шт.

D138377

SWITCH

ASSEMBLY flasher lamps, two position with octagonal shaft, Includes: Ref. 11 - 13; No longer available, order 133818A1 switchand D149932 knob

1шт.

11

NSS

NOT SOLD SEPARAT

SWITCH, P/N D138376 or D138377

1шт.

12

193-58

LOCK WASHER,Ext Tooth, 1/2"

WASHER lock, external tooth, 1/2", plated, P/N D138376 or D138377 switch

1шт.

13

129-125

NUT,1/2"-20, G5

P/N D138376 or D138377 switch 1/2"-20, G5

1шт.

14

A141735

KNOB

- D138376 work lamp and D138377 flasher switches with octagonal shaft, see Figure 09-638 for lamp and flasher symbol decals

2шт.

15

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

machine, pan head slotted, No. 8-32 NC x 1/2", plated

2шт.

16

D71346

TAIL LAMP,12V

BULB warning, No. 168, indicator lamp

2шт.

133820A1

SWITCH

ASSEMBLY, front driving and rear flood lamps, three position with square shaft, includes Ref. 17 - 19, Replaces D138376 Switch

1шт.

133818A1

SWITCH

ASSEMBLY, flasher lamps, two position with square shaft, includes Ref 17 - 19, Replaces D138377 Switch

1шт.

17

NSS

NOT SOLD SEPARAT

SWITCH, 133820A1 or 133818A1 switch

1шт.

18

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - internal-external tooth lock, 1/2 inch

1шт.

19

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

20

D149932

KNOB

KNOB - 133820A1 and 133818A1 switch with square shaft

2шт.
