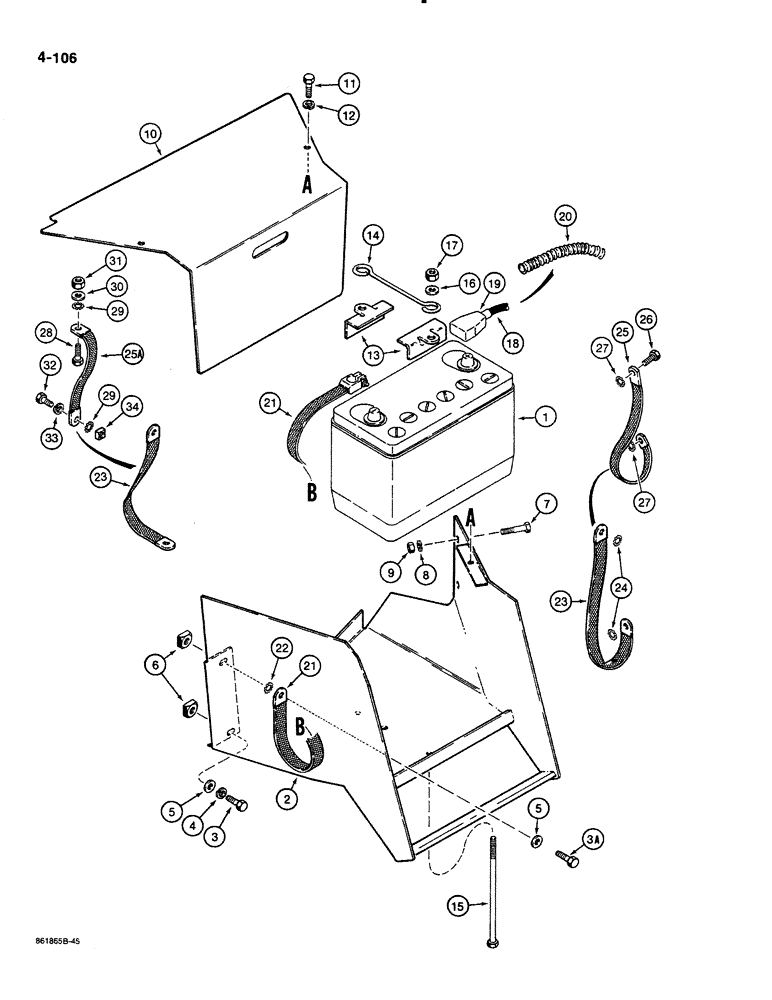

Запчасти Case 580K (04-106) - BATTERY, BOX, AND MOUNTING PARTS (04) - ELECTRICAL SYSTEMS

1

A180406

BATTERY

12 volt, dry, service replacement, order P/N BMF31E

1шт.

For use on models without a dual battery cold start system. For models with a dual battery cold start system, see Figure 04-108.

1шт.

2

D131882

TRANSFER BOX

BOX battery

1шт.

3

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

3a

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

For use on models without a dual battery cold start system. For models with a dual battery cold start system, see Figure 04-108.

1шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

195-525

WASHER,3/8", SAE

flat, 3/8", plated

2шт.

6

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8"-16 NC, plated

2шт.

7

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

10

D131887

COVER

battery box

1шт.

11

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

D125079

BRACKET

battery hold down

2шт.

For use on models without a dual battery cold start system. For models with a dual battery cold start system, see Figure 04-108.

1шт.

14

D55561

RETAINER

battery, hold down

1шт.

For use on models without a dual battery cold start system. For models with a dual battery cold start system, see Figure 04-108.

1шт.

15

115-218

BOLT,Hex, 3/8" - 16 x 10", Gr 2

2шт.

For use on models without a dual battery cold start system. For models with a dual battery cold start system, see Figure 04-108.

1шт.

16

195-525

WASHER,3/8", SAE

flat, 3/8", plated

2шт.

17

131-52

NUT,3/8"-16, GC

NUT hex, self locking, 3/8"-16 NC, plated

2шт.

18

D139095

CABLE

positive, battery, Includes: Ref. 19

1шт.

For use on models without a dual battery cold start system. For models with a dual battery cold start system, see Figure 04-108.

1шт.

19

A27072

COVER

cable, battery end

1шт.

20

D139094

SLEEVE

positive cable, guard, 37-13/32" (950 mm) long, cut from P/N D99461 bulk sleeve, see below

1шт.

21

D83485

CABLE,300mm L

STRAP negative, at battery

1шт.

For use on models without a dual battery cold start system. For models with a dual battery cold start system, see Figure 04-108.

1шт.

22

193-72

LOCK WASHER

lock, internal/external tooth, 3/8", plated

1шт.

23

D127018

STRAP

ground, used on models with engine fuse block in harness

2шт.

24

193-72

LOCK WASHER

lock, internal/external tooth, 3/8", plated, ground strap near starter, chassis ground strap uses existing hardware

2шт.

25

D127018

STRAP

ground, used on models without engine fuse block in harness

1шт.

25a

D140369

GROUND STRAP,260mm L

STRAP ground, pod and chassis, used on models without engine fuse block in harness

1шт.

26

187-573

SELF-TAP SCREW,Hex Hd, 3/8" x 1"

SCREW hex head, self-tapping, 3/8"-16 NC x 1", plated, if used

1шт.

27

193-72

LOCK WASHER

lock, internal/external tooth, 3/8", plated

2шт.

28

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

29

193-72

LOCK WASHER

lock, internal/external tooth, 3/8", plated

2шт.

30

195-525

WASHER,3/8", SAE

flat, 3/8", plated

1шт.

31

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

32

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

34

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8"-16 NC

1шт.

D99461

LOOM

SLEEVE bulk, 80" (2032 mm) long

1шт.
