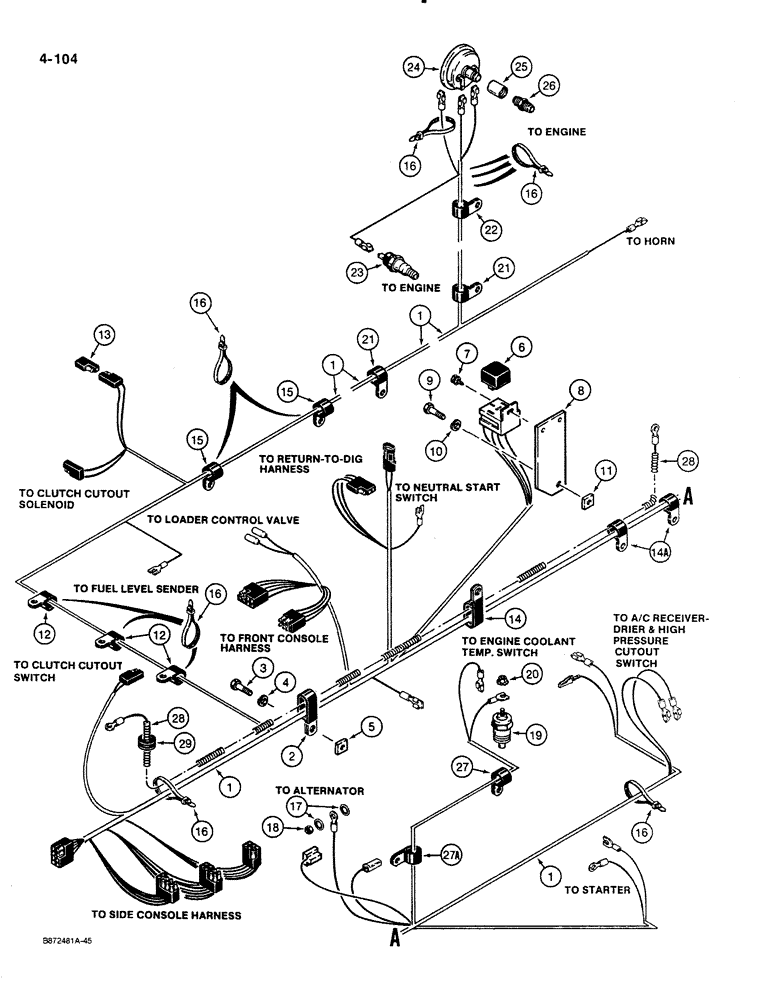

Запчасти Case 580K (04-104) - ENGINE ELECTRICAL CIRCUIT, MODELS WITHOUT FUSE BLOCK IN HARNESS (04) - ELECTRICAL SYSTEMS

1

D141275

HARNESS

engine, main, without fuse block in harness on right hand side of engine, starter relay mounts on chassis upright, used on models without electronic instrument control center

1шт.

See Figure 04-114 for special parts used on models with electronic instrument control center.

1шт.

2

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

double, harness

1шт.

3

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8"-16 NC

2шт.

6

D128310

RELAY

starter, 30 amperes

1шт.

40 amperes is marked on the relay. This is the resistance rating. The inductive rating is 30 amperes. We use this inductive rating in our literature.

1шт.

7

187-576

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW self tapping, No. 10-24 x 3/8"

1шт.

8

D140282

SUPPORT

PLATE relay mounting

1шт.

9

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

11

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8"-16 NC

1шт.

12

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

P-type, harness, uses existing loader hydraulic line hardware, if used, may be replaced by tie straps

3шт.

13

L71879

DIODE ELEMENT,400V, 3A

DIODE harness, at power shuttle

1шт.

14

D47783

CLAMP

double, harness and power wire, uses existing steering hydraulic tube hardware

1шт.

14a

A141013

CLAMP,1 1/8", Insul, 3/8" Bolt

P-type

2шт.

15

49838

CLAMP

P-type, harness, uses existing hardware, may be replaced by tie straps

1-3шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, harness, 15"

5-8шт.

17

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

2шт.

18

825-1106

NUT,Hex, M6, Cl 8

hex, 6 mm-1, plated

1шт.

19

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER engine water coolant temperature

1шт.

20

193-1000

NUT,Keps, w/LW,#10-32

AND LOCK WASHER, No. 10-32 NF, plated

1шт.

21

49838

CLAMP

P-type, harness, left hand side of engine, front clamps use existing hardware

2шт.

22

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, harness, uses existing engine hardware

1шт.

23

A162297

SWITCH

- Oil Pressure Sender, Used on Models Without Electronic Instrument Control Center; See Figure 4-114 for Special Parts Used on Models With Electronic Instrument Control Center

1шт.

24

L103131

INDICATOR

SENDER air filter restriction indicator

1шт.

25

221-1335

COUPLING,Pipe, 1/8" NPT

1шт.

26

D36264

FITTING

ADAPTER special, includes safety filter

1шт.

27

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, harness, uses existing hardware

1шт.

27a

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

P-type, 38467 tube beneath backhoe control valve

1шт.

28

D141119

ELECTRICAL WIRE

WIRE power, starter to side console harness fuse block in floor, used with Ref. 1 harness

1шт.

29

D141118

GROMMET

power wire

1шт.
