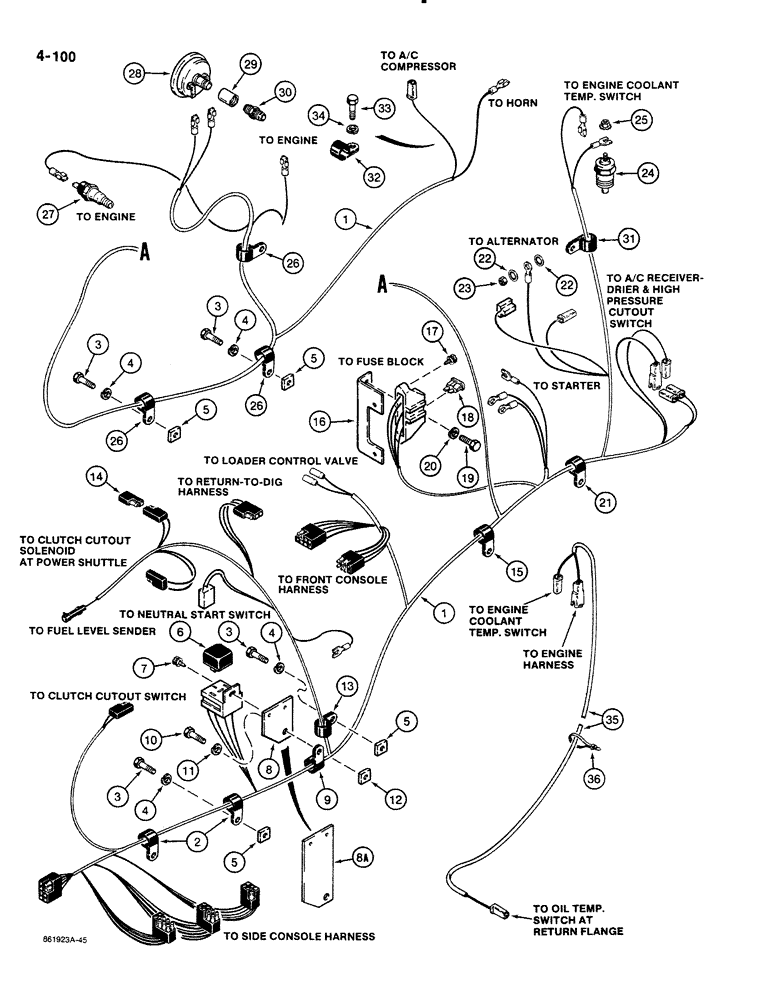

Запчасти Case 580K (04-100) - ENGINE ELECTRICAL CIRCUIT, MODELS WITH FUSE BLOCK IN HARNESS (04) - ELECTRICAL SYSTEMS

1

D138666

HARNESS

engine, main, with fuse block in harness on right hand side of engine and starter relay near battery, used on models without electronic instrument control center

1шт.

Plastic fuse block for this harness is P/N 245435C1

1шт.

See Figure 04-114 for special parts used on models with electronic instrument control center.

1шт.

2

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

P-type, harness, rear clamp uses existing hardware

2шт.

3

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

4шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8"-16 NC

4шт.

6

D128310

RELAY

starter, 30 amperes

1шт.

40 amperes is marked on the relay. This is the resistance rating. The inductive rating is 30 amperes. We use this inductive rating in our literature.

1шт.

7

187-576

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW self tapping, No. 10-24 x 3/8"

1шт.

8

D138306

LARGE PLATE

PLATE relay mounting, no longer used, order P/N D140282 plate

1шт.

8a

D140282

SUPPORT

PLATE relay mounting

1шт.

9

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, harness

1шт.

10

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8"-16 NC

1шт.

13

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, harness

1шт.

14

L71879

DIODE ELEMENT,400V, 3A

DIODE harness, at power shuttle

1шт.

15

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, harness, uses existing steering hydraulic tube hardware

1шт.

16

D138333

BRACKET

fuse block mounting

1шт.

17

187-580

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

SCREW hex slotted washer head, self tapping, No. 10-32 x 3/4", plated

2шт.

18

A149804

FUSE

30 amperes

3шт.

19

814-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

hex head, 12 mm-1.75 x 16 mm, 8.8, plated

1шт.

20

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm, plated

1шт.

21

49838

CLAMP

P-type, harness, uses existing hardware

1шт.

22

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

2шт.

23

825-1106

NUT,Hex, M6, Cl 8

hex, 6 mm-1, plated

1шт.

24

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER engine water coolant temperature

1шт.

25

193-1000

NUT,Keps, w/LW,#10-32

AND LOCK WASHER, No. 10-32 NF, plated

1шт.

26

49838

CLAMP

P-type, harness, left hand side of engine, front clamps use existing hardware

3шт.

27

A162297

SWITCH

- Oil Pressure Sender, Used on Models Without Electronic Instrument Control Center, See Figure 4-114 for Special Parts Used on Models With Electronic Instrument Control Center

1шт.

28

L103131

INDICATOR

SENDER air filter restriction indicator

1шт.

29

221-1335

COUPLING,Pipe, 1/8" NPT

1шт.

30

D36264

FITTING

ADAPTER special, includes safety filter

1шт.

31

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, harness, uses existing hardware

1шт.

32

D43839

CLAMP

P-type, at air conditioner compressor wire

1шт.

33

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

34

892-1110

LOCK WASHER,M10

WASHER lock, 10 mm, plated

1шт.

35

D140301

HARNESS

WIRE used in addition to main engine harness on models with engine fuse block, attaches to engine coolant temperature switch and engine harness to oil temperature switch at return flange, see Figure 08-294 for flange and connecting parts

1шт.

Special parts used on models with auxiliary hydraulics for optional rear hydraulic attachments

1шт.

36

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, attaches harness to hydraulic plumbing on right hand side of chassis

5шт.

Special parts used on models with auxiliary hydraulics for optional rear hydraulic attachments

1шт.
