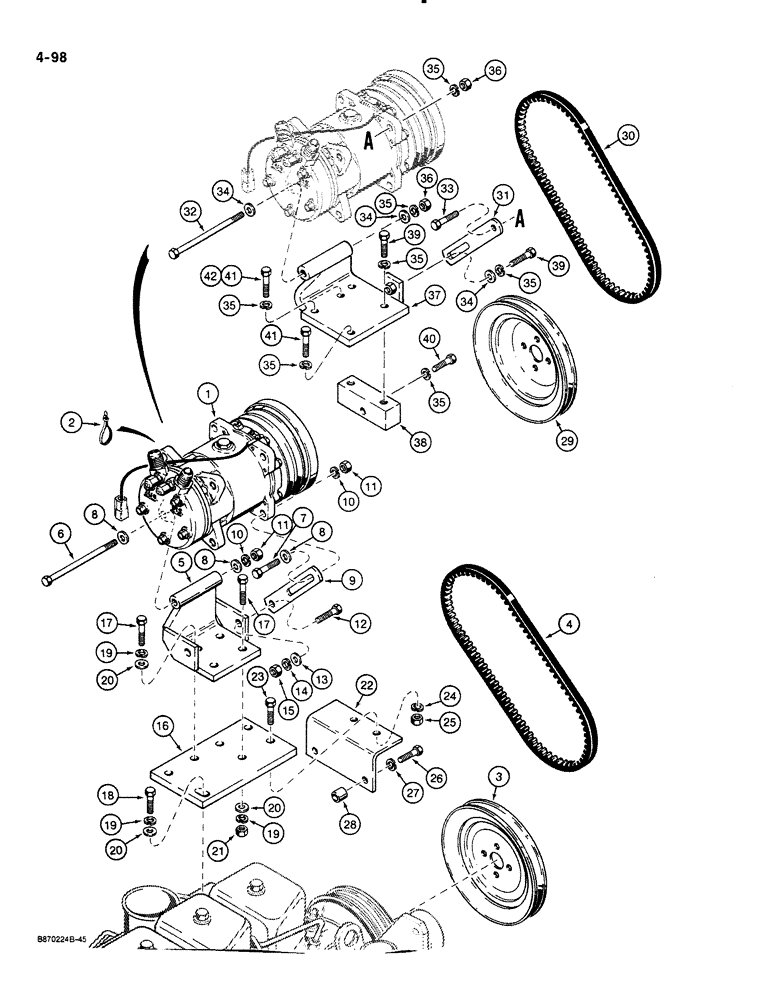

Запчасти Case 580K (04-098) - AIR CONDITIONING COMPRESSOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

A177068

AIRCOND. COMPRESSOR

ASSEMBLY air conditioning, see Figure 04-094, three piece bracket mounting

1шт.

A177068R

REMAN-A/C COMPRESSOR

580K

1шт.

A177068C

CORE-DISTRIB KIT-FUE

Return Number

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, compressor wire, 15", three piece bracket mounting

1шт.

3

L118171

PULLEY

air conditioner compressor drive, three piece bracket mounting

1шт.

4

A169970

BELT,0.50" W x 39.25" L

Drive, Compressor, Three Piece Bracket Mounting 0.50" W x 39.25" L

1шт.

5

A177341

BRACKET

compressor mounting, three piece bracket mounting

1шт.

6

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

hex head, 10 mm-1.5 x 130 mm, 8.8, plated, three piece bracket mounting

1шт.

7

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.5 x 35 mm (8.8), plated, three piece bracket mounting

1шт.

8

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

Three piece bracket mounting M11 x 24 x 2

3шт.

9

K207316

STRAP

compressor adjusting, three piece bracket mounting

1шт.

10

892-1110

LOCK WASHER,M10

WASHER lock, 10 mm, plated, three piece bracket mounting

2шт.

11

825-1110

NUT,M10, Cl 8

hex, 10 mm - 1.5, Cl 8, plated, Three piece bracket mounting

2шт.

12

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3-piece bracket mounting Hex, M10 x 30, 8.8

1шт.

13

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

Three piece bracket mounting M11 x 24 x 2

1шт.

14

892-1110

LOCK WASHER,M10

WASHER lock, 10 mm, plated, three piece bracket mounting

1шт.

15

825-1110

NUT,M10, Cl 8

hex, 10 mm - 1.5, Cl 8, plated, Three piece bracket mounting

1шт.

16

A177345

PLATE

base, three piece bracket mounting

1шт.

17

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.5 x 35 mm (8.8), plated, three piece bracket mounting

3шт.

18

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3-piece bracket mounting Hex, M10 x 30, 8.8

1шт.

19

892-1110

LOCK WASHER,M10

WASHER lock, 10 mm, plated, three piece bracket mounting

4шт.

20

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

Three piece bracket mounting M11 x 24 x 2

4шт.

21

825-1110

NUT,M10, Cl 8

hex, 10 mm - 1.5, Cl 8, plated, Three piece bracket mounting

2шт.

22

NSS

NOT SOLD SEPARAT

BRACKET angle, mounts to engine, three piece bracket mounting

1шт.

23

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Angle bracket to base plate, 3 piece bracket mounting Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 3 piece bracket mounting 3/8"

2шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 3 piece bracket mounting 3/8"-16, G5

2шт.

26

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

Angle bracket to engine, Three piece bracket mounting Hex, M8 x 35, 8.8

2шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , 3 piece bracket mounting 5/16"

2шт.

28

NSS

NOT SOLD SEPARAT

SPACER bracket, three piece bracket mounting

2шт.

29

J908819

PULLEY

air conditioner compressor drive, one piece bracket mounting

1шт.

Sub to P/N J919624.

1шт.

30

S80928

V-BELT,12.70 mm W x 1090.00 mm L

- Drive, Compressor, One piece bracket mounting 12.70 mm W x 1090.00 mm L

1шт.

31

A184932

TENSIONER

STRAP compressor adjusting, one piece bracket mounting

1шт.

32

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

hex head, 10 mm-1.5 x 130 mm, 8.8, plated, one piece bracket mounting

1шт.

33

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.5 x 35 mm (8.8), plated, one piece bracket mounting

1шт.

34

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

One piece bracket mounting M11 x 24 x 2

3шт.

35

892-1110

LOCK WASHER,M10

WASHER lock, 10 mm, plated, one piece bracket mounting

9шт.

36

825-1110

NUT,M10, Cl 8

hex, 10 mm - 1.5, Cl 8, plated, One piece bracket mounting

2шт.

37

A184882

SUPPORT

BRACKET compressor mounting, one piece bracket mounting

1шт.

38

A184614

SUPPORT

BLOCK bracket support, one piece bracket mounting

1шт.

39

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1-piece bracket mounting Hex, M10 x 30, 8.8

3шт.

40

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

hex head, 10 mm-1.5 x 40 mm, plated, one piece bracket mounting

1шт.

41

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Naturally Aspirated Engines, 1-piece bracket mounting Hex, M10 x 30, 8.8

1-3шт.

42

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.5 x 35 mm (8.8), plated, turbocharged engines, one piece bracket mounting

2шт.
