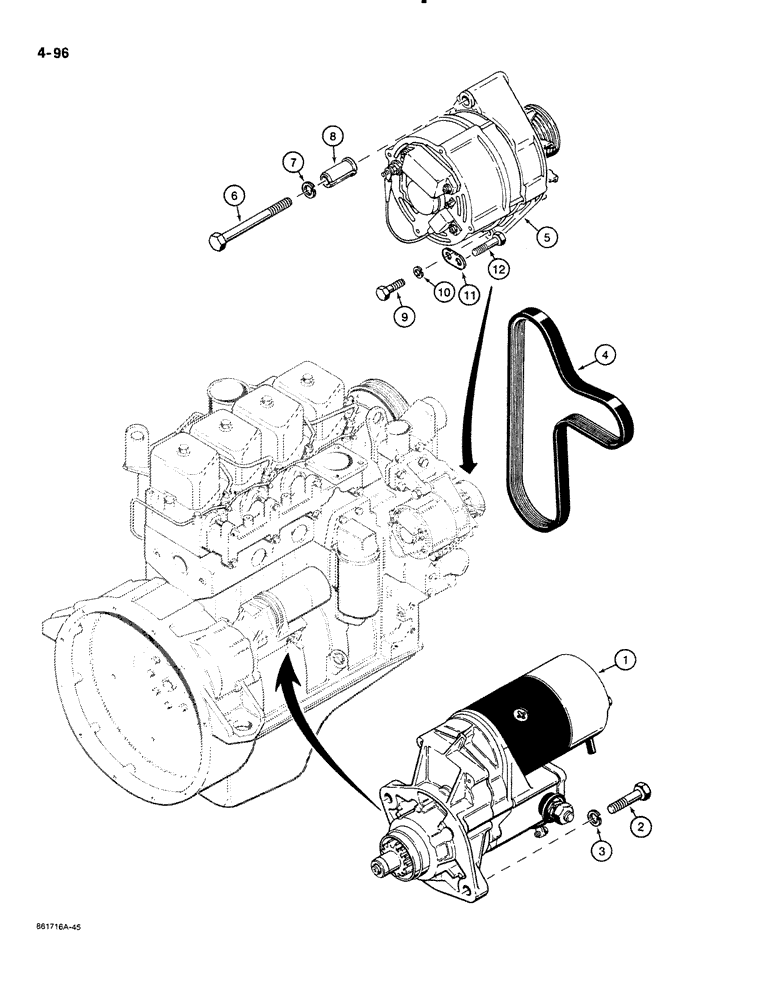

Запчасти Case 580K (04-096) - STARTER AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER engine, see Figures 04-088 and 04-090

1шт.

2

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

hex head, 10 mm-1.5 x 40 mm, 8.8, plated

2шт.

3

892-1110

LOCK WASHER,M10

WASHER lock, 10 mm, plated

2шт.

4

J911559

V-BELT,27.92mm W x 1574.8mm L, 8 Ribs

Fan and Alternator 3.56 mm W x 1574.80 mm L, 8 Ribs

1шт.

5

REF

INSTRUCTION

ALTERNATOR electrical, see Figure 04-092

1шт.

6

813-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

hex head, 10 mm-1.5 x 100 mm, 8.8

1шт.

7

892-1110

LOCK WASHER,M10

WASHER lock, 10 mm, plated

1шт.

8

J902469

SPACER

alternator

1шт.

9

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex head, 8 mm-1.25 x 25 mm, 8.8, plated

1шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

11

J903089

SUPPORT

BRACE alternator mounting, used on models with turbocharged engine

1шт.

12

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

used on models with turbocharged engine Hex, M8 x 20, 8.8

1шт.
