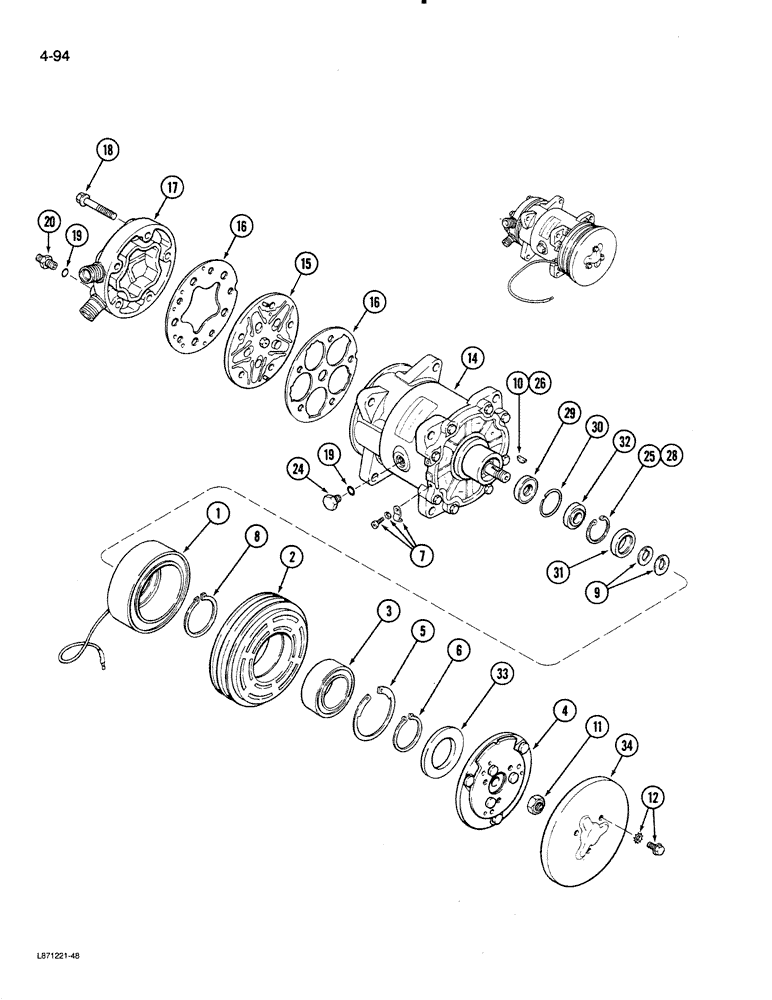

Запчасти Case 580K (04-094) - COMPRESSOR ASSEMBLY (04) - ELECTRICAL SYSTEMS

A177068

AIRCOND. COMPRESSOR

ASSEMBLY air conditioning, complete, Sankyo-Sanden, Includes: P/N A49676 and Ref. 1 thru 12

1шт.

A177068R

REMAN-A/C COMPRESSOR

580K PN A49676

1шт.

A177068C

CORE-DISTRIB KIT-FUE

Return Number

1шт.

A49676

CLUTCH ASSEMBLY

compressor, Includes: Ref. 1 thru 12

1шт.

1

A49659

COIL ASSY.

COIL ASSEMBLY field, 12 volt

1шт.

2

A49660

PULLEY ASSY.

PULLEY ASSEMBLY drive, two groove, Includes: Ref. 3 thru 5

1шт.

3

A49663

BALL BEARING,40 mm ID x 62 mm OD x 24 mm

BEARING pulley

1шт.

4

A49677

PLATE

front

1шт.

5

NSS

NOT SOLD SEPARAT

RING snap

1шт.

A49673

KIT

accessory, clutch, Includes: Ref. 6 thru 12

1шт.

6

NSS

NOT SOLD SEPARAT

RING snap, pulley

1шт.

7

NSS

NOT SOLD SEPARAT

CLAMP ASSEMBLY lead wire

1шт.

8

NSS

NOT SOLD SEPARAT

RING snap clutch

1шт.

9

NSS

NOT SOLD SEPARAT

SHIM clutch

1шт.

10

NSS

NOT SOLD SEPARAT

KEY clutch drive

1шт.

11

NSS

NOT SOLD SEPARAT

NUT retainer

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW retainer

1шт.

A49672

COMPRESSOR

ASSEMBLY field, Includes: Ref. 14 thru 32

1шт.

14

NSS

NOT SOLD SEPARAT

BLOCK ASSEMBLY compressor

1шт.

15

A49662

PLATE

ASSEMBLY valve, Includes: Ref. 16

1шт.

16

A49668

GASKET KIT

KIT gasket, valve plate

1шт.

17

A49661

HEAD (CYLINDER)

HEAD cylinder, Includes: Ref. 16

1шт.

This does not come with gasket kit P/N A49668 as indicated in the model 580K, 8-3462 catalog. Dealer must order separately.

1шт.

18

A49669

SCREW,Cylinder

BOLT hex flanged, head

5шт.

19

A49666

O-RING

rubber

3шт.

20

A49670

PORT

service

2шт.

24

A49667

PLUG

oil filler

1шт.

25

A49664

CIRCLIP

RING snap, seal seat

1шт.

26

A49671

KEY

shaft, compressor

1шт.

A49665

SEAL KIT

KIT seal, compressor, Includes: Ref. 28 thru 31

1шт.

28

A49664

CIRCLIP

RING snap

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL shaft

1шт.

30

NSS

NOT SOLD SEPARAT

O-RING housing

1шт.

31

NSS

NOT SOLD SEPARAT

RING felt

1шт.

32

NSS

NOT SOLD SEPARAT

SEAT seal, shaft

1шт.

33

A49674

BEARING COVER,36 mm ID x 62 mm OD x 1.2, 4.2 mm

COVER dust, bearing

1шт.

34

A49675

COVER

dust, clutch

1шт.
