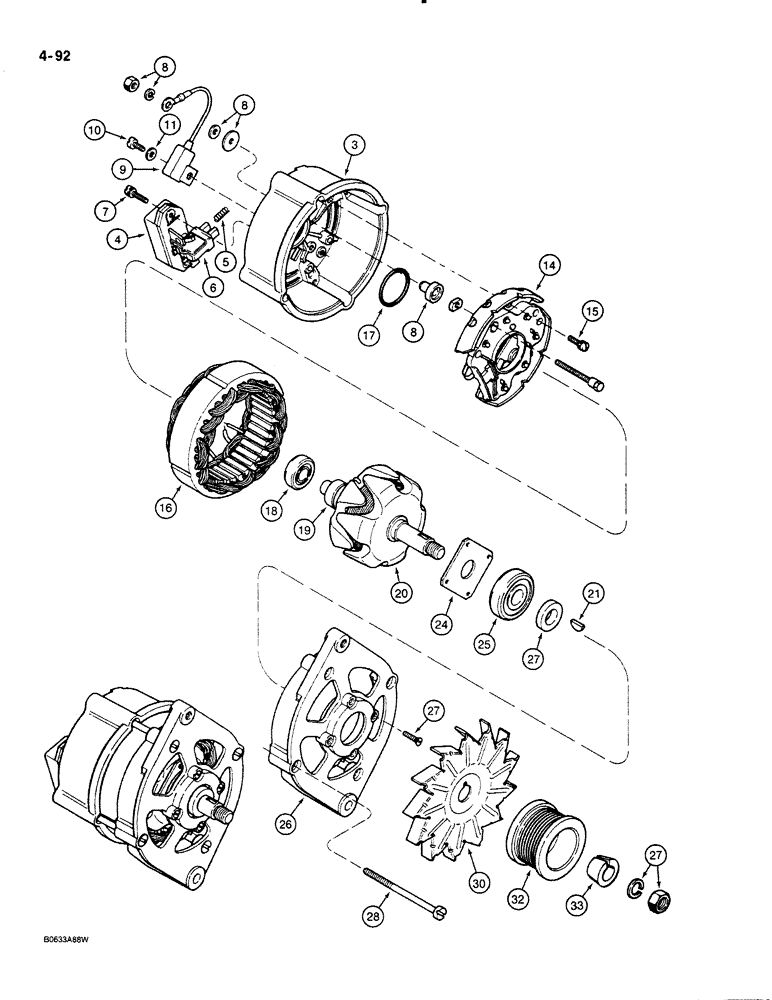

Запчасти Case 580K (04-092) - ALTERNATOR (04) - ELECTRICAL SYSTEMS

A186125

ALTERNATOR

ALTERNATOR ASSEMBLY, 65 ampere, Includes: Ref. 3 thru 28

1шт.

This is a 65 amperes K1 Bosch alternator, Bosch nbr. 0120489475

1шт.

AR186125GV

ALTERNATOR

Value

1шт.

AR186125

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

AC186125

CORE-ALTERNATOR

Return Number

1шт.

87297244

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

87297245

CORE-ALTERNATOR

Return Number

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

103799A1C

CORE-ALTERNATOR

Return Number

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 61 AMP ALTERNATOR

1шт.

103802A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

87297230

REMAN-ALTERNATOR

Remanufactured Bosch 12v 65a Alternator

1шт.

87297231

CORE-ALTERNATOR

Return Number, Bosch 12 v 65a Alternator

1шт.

3

A186187

HOUSING

HOUSING collector ring end

1шт.

4

A186189

REGULATOR

REGULATOR voltage, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING compression

2шт.

6

NSS

NOT SOLD SEPARAT

BRUSH ASSEMBLY alternator

1шт.

7

A186194

SCREW,M4 x 18mm

SCREW, , Regulator retaining, Assy Sltd Truss Hd, M4 x 18, w/LW

2шт.

8

3079135R1

TERMINAL CONNECTOR

KIT terminal

1шт.

9

A186195

CAPACITOR

CAPACITOR alternator

1шт.

10

625589C1

SCREW,Slot Cheese Hd, M5 x .8 x 10, 8.8

BOLT capacitor retaining

1шт.

11

A186196

WASHER

WASHER retaining bolt

1шт.

14

A186197

RECTIFIER

BRIDGE rectifier, alternator

1шт.

15

A186188

SCREW

BOLT ASSEMBLY rectifier bridge retaining, with washer

3шт.

16

A186192

STATOR

STATOR ASSEMBLY alternator

1шт.

17

3079386R1

O-RING

O-RING bearing

1шт.

18

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

BEARING ball

1шт.

19

A186185

RING

RING collector

1шт.

20

A186184

ROTOR

ROTOR ASSEMBLY alternator

1шт.

21

NSS

NOT SOLD SEPARAT

KEY rotor, order P/N 3078897R1 kit

1шт.

24

3078379R1

COVER

PLATE bearing retaining

1шт.

25

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

BEARING ball, drive end

1шт.

26

A186182

HOUSING

HOUSING drive end

1шт.

27

3078897R1

SET OF PARTS

KIT rotor retaining

1шт.

28

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

BOLT alternator retaining

4шт.

30

221425R1

FAN

FAN alternator

1шт.

32

J908560

PULLEY

PULLEY drive

1шт.

33

J908563

RETAINER

RETAINER pulley

1шт.
