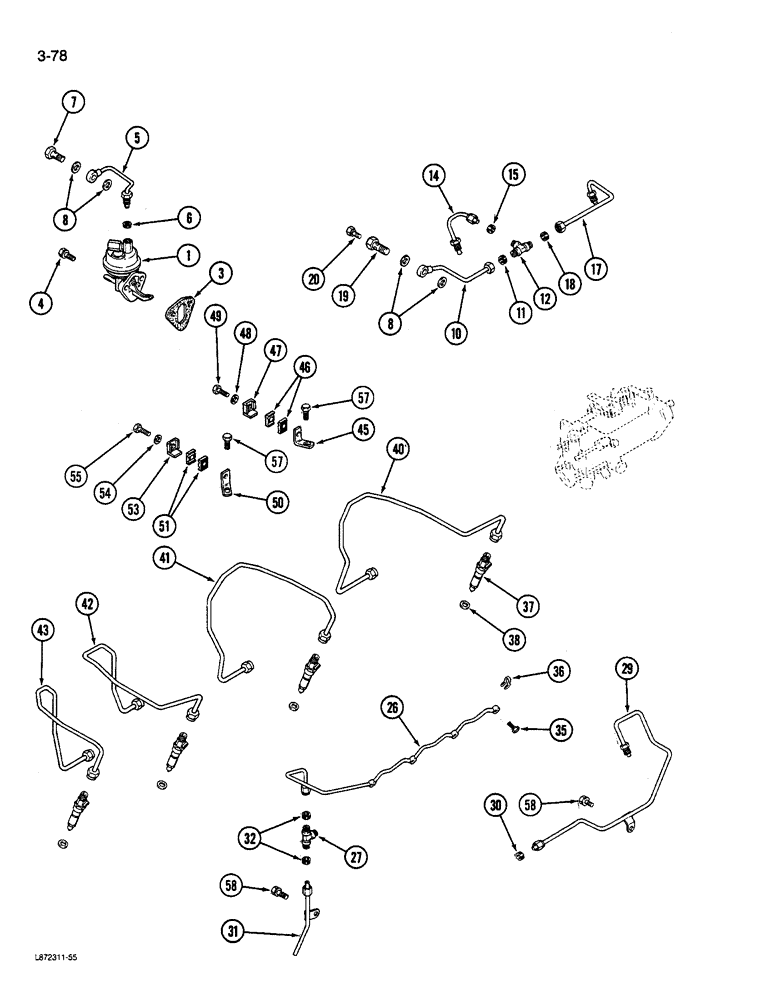

Запчасти Case 580K (03-078) - FUEL INJECTION SYSTEM, 4-390 ENGINE, 4T-390 ENGINE (03) - FUEL SYSTEM

1

J904374

PUMP

ASSEMBLY lift, fuel

1шт.

3

J914304

GASKET

fuel lift pump, Replaces: P/N J904044

1шт.

4

J900630

BOLT,Hex Flg, M8 x 20, 8.8, Full Thd

hex flange head, 8 mm-1.25 x 20 mm

2шт.

5

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

TUBE ASSEMBLY fuel, lift pump to filter, Includes: Ref. 6

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL tube

1шт.

7

J903035

BANJO BOLT

BOLT banjo hex, 12 mm-1.5 x 24 mm

1шт.

8

J903037

PACKING RING

WASHER sealing, 12 mm-1.5 x 24 mm

4шт.

10

J905364

FUEL TUBE

TUBE ASSEMBLY fuel supply, filler to tee, Includes: Ref. 11

1шт.

11

222-103

SLEEVE,5/16" Tube

1шт.

12

J905353

TEE

union, 9/16"-24 NF thread, Includes: P/N 222-663

1шт.

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT hex, 1/2"-24 thread, discard before assembly

3шт.

14

J905375

FUEL TUBE,8 mm OD x 137.6 mm L

TUBE ASSEMBLY fuel supply, tee to rear of injection pump, Includes: Ref. 15

1шт.

15

222-103

SLEEVE,5/16" Tube

1шт.

17

J905363

FUEL TUBE,8 mm OD x 256.8 mm L

TUBE ASSEMBLY fuel supply, tee to front of injection pump, Includes: Ref. 18

1шт.

18

222-103

SLEEVE,5/16" Tube

1шт.

J905860

BANJO BOLT

BOLT banjo hex, special, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

BOLT connector, banjo hex, special, order P/N J905860

1шт.

20

NSS

NOT SOLD SEPARAT

SCREW hex special, vent, order P/N J905860

1шт.

26

J909695

FUEL TUBE

MANIFOLD ASSEMBLY fuel return

1шт.

27

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing, Union, Includes P/N 222-661

1шт.

222-661

TUBE NUT,3/8"-24, 45 Degree Fl, Comp

Hex (Discard before assembly) 3/8"-24, 45º Fl, Comp

3шт.

29

J905703

FUEL TUBE,4.76 mm OD x 661 mm L

TUBE ASSEMBLY fuel return, tee to pump, Includes: Ref. 30

1шт.

30

222-103

SLEEVE,5/16" Tube

1шт.

31

J905692

FUEL TUBE

TUBE ASSEMBLY fuel return, tee to tank, Includes: Ref. 32

1шт.

32

222-101

SLEEVE,3/16" Tube

for 3/16" Tube

1шт.

35

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

4шт.

36

J903380

SEAL

connector

4шт.

37

REF

INSTRUCTION

INJECTOR ASSEMBLY fuel, see Figure 03-084

4шт.

38

J900808

SEAL

injector

4шт.

40

J903522

FUEL TUBE,2 mm ID x 6.4 mm OD x 643.1 mm L

TUBE ASSEMBLY fuel injector, No. 1 cylinder

1шт.

41

J903523

FUEL TUBE,2 mm ID x 6.4 mm OD x 645.3 mm L

TUBE ASSEMBLY fuel injector, No. 2 cylinder

1шт.

42

J903524

FUEL TUBE

TUBE ASSEMBLY fuel injector, No. 3 cylinder

1шт.

43

J903525

FUEL TUBE

TUBE ASSEMBLY fuel injector, No. 4 cylinder

1шт.

A77484

SUPPORT ASSY.

BRACKET ASSEMBLY injection supply tube, No. 1 and 2, Includes: Ref. 45 thru 49

1шт.

45

NSS

NOT SOLD SEPARAT

BRACKET fuel tube

1шт.

46

NSS

NOT SOLD SEPARAT

ISOLATOR fuel tube

2шт.

47

NSS

NOT SOLD SEPARAT

PLATE clamp, fuel tube

1шт.

48

NSS

NOT SOLD SEPARAT

WASHER lock, M5

1шт.

49

NSS

NOT SOLD SEPARAT

BOLT hex head

1шт.

A77485

SUPPORT ASSY.

BRACKET ASSEMBLY injection supply tube No. 3 and 4, Includes: Ref. 50 thru 55

1шт.

50

NSS

NOT SOLD SEPARAT

BRACKET fuel tube

1шт.

51

NSS

NOT SOLD SEPARAT

ISOLATOR fuel tube

2шт.

53

NSS

NOT SOLD SEPARAT

PLATE clamp, fuel tube

1шт.

54

NSS

NOT SOLD SEPARAT

WASHER lock, M5

1шт.

55

NSS

NOT SOLD SEPARAT

BOLT hex head

1шт.

57

J904341

BOLT,M6 x 1 x 35mm, Cl 8.8

hex, special

2шт.

58

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

2шт.
