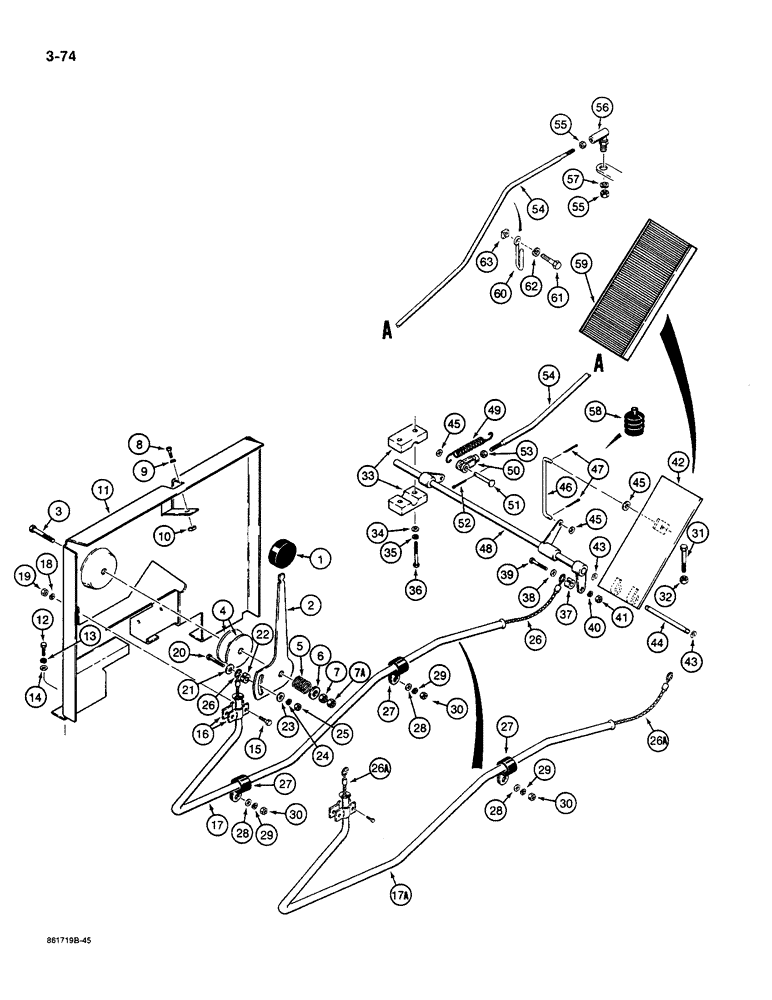

Запчасти Case 580K (03-074) - THROTTLE CONTROL LINKAGE (03) - FUEL SYSTEM

1

A177435

BALL KNOB

KNOB hand throttle

1шт.

2

D135409

LEVER

hand throttle

1шт.

3

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

hex head, 1/2"-13 NC x 2-3/4", plated

1шт.

4

D139323

FRICTION WASHER

DISC friction, throttle bracket

2шт.

5

A34113

SPRING

throttle control lever

1шт.

6

195-533

WASHER,1/2", SAE

flat, 1/2", plated

1шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

7a

131-70

NUT,1/2"-13, GB

NUT hex, self-locking, 1/2"-13 NC, plated

1шт.

8

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

10

25-225

SQUARE NUT,Sq, 5/16"-24

square, 5/16"-18 NC

1шт.

11

D138131

BRACKET

throttle control

1шт.

12

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

5шт.

14

195-521

WASHER,5/16", SAE

flat, 5/16", plated

5шт.

15

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

16

D127819

CLAMP

cable guide tube

2шт.

17

D131694

TUBE

cable guide, uses two P-clamps, Ref. 27, used with P/N D124958 cable, Ref. 26, if used

1шт.

17a

D142057

TUBE

cable guide, uses one P-clamp, Ref. 27, used with P/N D142938 cable, Ref. 26A, if used

1шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

19

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

20

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

21

195-103

WASHER,5/16"

flat, , plated 5/16"

1шт.

22

D124865

SPACER

cable to throttle control lever

1шт.

23

195-521

WASHER,5/16", SAE

flat, 5/16", plated

1шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

25

9635082

NUT,5/16" - 18, Gr 5

1шт.

26

D124958

CABLE

60-5/8" (1540 mm) long, hand throttle, used with P/N D131694 tube, Ref. 17, if used

1шт.

26a

D142938

CABLE

62-7/32" (1580 mm) long, hand throttle, used with P/N D142057 tube, Ref. 17A, if used

1шт.

27

49771

CLAMP

P-type, cable guide tube to floor plate

1-2шт.

28

195-2042

WASHER,.469" x 1 1/2" x .134"

flat, 15/32" ID x 1-1/2" OD x 1/8" thick

1-2шт.

29

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1-2шт.

30

9635082

NUT,5/16" - 18, Gr 5

1-2шт.

31

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

hex head, 3/8"-16 NC x 3-1/2", plated, floor plate

1шт.

32

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

33

D124857

CLAMP

BLOCK cross shaft

4шт.

34

195-521

WASHER,5/16", SAE

flat, 5/16", plated

4шт.

35

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

36

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

37

D124865

SPACER

cable to cross shaft

1шт.

38

195-103

WASHER,5/16"

flat, , plated 5/16"

1шт.

39

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

40

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

41

9635082

NUT,5/16" - 18, Gr 5

1шт.

42

D124863

PEDAL

accelerator

1шт.

43

D143414

CIRCLIP

RING retaining

2шт.

44

D143413

PIN,9.52mm OD x 106mm L

pedal base

1шт.

45

195-521

WASHER,5/16", SAE

flat, 5/16", plated

3шт.

46

D143428

STEM

ROD bent, accelerator pedal

1шт.

47

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

48

D124859

SHAFT

throttle

1шт.

49

D93823

SPRING

throttle return

1шт.

50

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS adjustable, NF 5/16"-24

1шт.

51

141-65

CLEVIS PIN,5/16" x 1 1/8"

PIN clevis, 5/16", plated, special length

1шт.

52

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

53

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NF

1шт.

54

D140041

ROD

throttle, to injection pump

1шт.

55

25-114

NUT,1/4"-28, G5

hex, 1/4"-28 NF

2шт.

56

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT ball, at injection pump

1шт.

57

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

58

D85869

BELLOWS

BOOT accelerator pedal rod, at floor plate

1шт.

59

D137499

COVER

PAD cover, accelerator pedal, optional deluxe interior

1шт.

60

D141387

GUIDE

SUPPORT throttle rod, if used

1шт.

61

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

If used Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

62

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , If used 3/8"

1шт.

63

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8" NC, if used

1шт.
