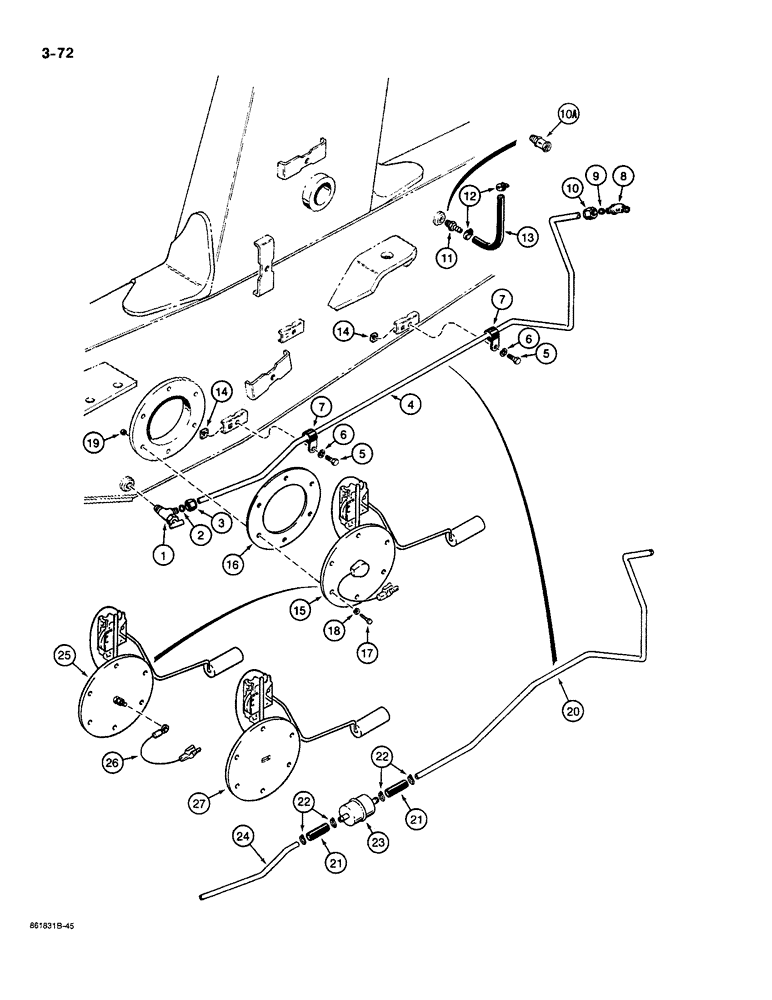

Запчасти Case 580K (03-072) - FUEL RESERVOIR LINES AND FUEL LEVEL SENDER (03) - FUEL SYSTEM

D74027

VALVE

ASSEMBLY shutoff, fuel tank outlet, Includes: Ref. 1 thru 3

1шт.

1

NSS

NOT SOLD SEPARAT

BODY shutoff valve

1шт.

2

222-654

FERRULE,3/8" Tube, Comp

compression fitting

1шт.

3

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

NUTcompression fitting

1шт.

4

D137295

TUBE

engine supply, 3/8" OD, no longer used, for service order P/N D139623 tube, (4) P/N 214-335 clamps, (2) P/N D139224 hose, P/N D139243 tube, and P/N D139225 filter, see Ref. 20 - 24

1шт.

5

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

49845

CLAMP

engine supply tube

2шт.

222-95

ELBOW,45 Degree, 5/8"-24 x 1/4" NPT

ASSEMBLY, 45 degree, compression fitting, to engine fuel pump, Includes: Ref. 8 thru 10

1шт.

8

NSS

NOT SOLD SEPARAT

BODY elbow

1шт.

9

222-104

SLEEVE,3/8" Tube

compression fitting, for 3/8" OD tube

1шт.

10

222-114

NUT,5/8"-24

NUT compression fitting, for 3/8" OD tube

1шт.

10a

A177556

CHECK VALVE,1/4" NPT x 1/4" NPT

VALVE check, anti-drain

1шт.

11

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

barb, straight

1шт.

12

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP engine injector return hose

2шт.

13

D141617

FUEL HOSE,6.35 mm ID x 241.00 mm, SAE J30, 30R6 or SAE 30R7

Replaces 12-1/2" (318 mm) Hose Used On Some Models, Cut From P/N A21561 Hose, Engine Injector Return Line, See Below 6.35 mm ID x 241.00 mm, SAE J30, 30R6 or SAE 30R7

1шт.

14

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8"-16 NC

1-2шт.

15

D137316

SENDER UNIT

SENDER fuel level, with wire lead, sender wire attaches to engine main harness and mounts on left-hand inner chassis channel, no longer used, for service order P/N D141357 sender and P/N D141358 wire, Ref. 25 and 26

1шт.

16

D129228

GASKET

fuel level sender

1шт.

17

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

19

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

6шт.

20

D139623

TUBE

engine supply

1шт.

21

D139224

FUEL HOSE

HOSE fuel line

2шт.

22

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP fuel line hose

4шт.

23

D139225

FILTER, FUEL

FILTER fuel, in-line

1шт.

24

D139243

TUBE

fuel line

1шт.

25

D141357

SENDER UNIT

SENDER fuel level, without wire lead, no longer available, order P/N D141953 sender, Ref. 27

1шт.

26

D141358

ELECTRICAL WIRE

WIRE fuel level sender, used with P/N D141357 sender on models with engine fuse block on harness, if used

1шт.

27

D141953

GAUGE

SENDER fuel level, without lead wire

1шт.

A21561

HOSE,0.25" ID x 25.00"

0.25" ID x 25.00' - Bulk, See Ref. 13

1шт.
