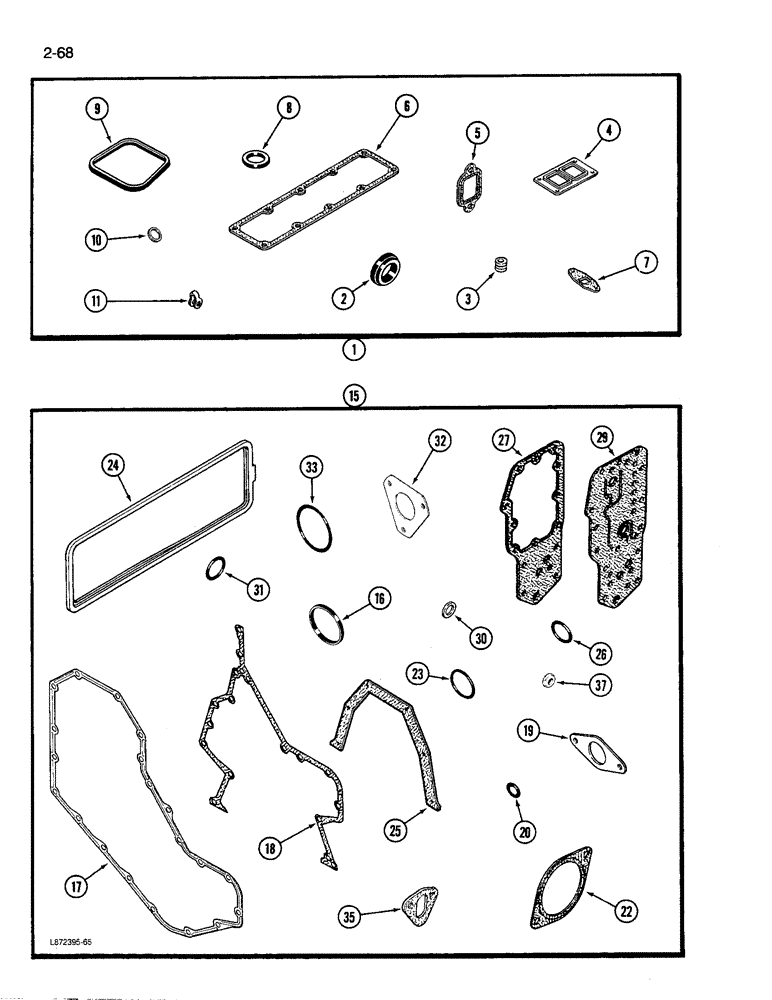

Запчасти Case 580K (02-068) - ENGINE GASKET KITS, 4-390 ENGINE, 4T-390 ENGINE, VALVE GRIND AND CYLINDER BLOCK (02) - ENGINE

1

A77481

KIT

gasket, valve grind, engine, Includes: Ref. 2 thru 11

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket, see Figure 02-046.

1шт.

2

J903301

GASKET

thermostat

1шт.

3

J901097

SEAL

valve

8шт.

4

J901356

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

5

J905443

MANIFOLD GASKET

exhaust manifold

4шт.

6

J914028

GASKET

intake manifold, Replaces: P/N J901999

1шт.

7

J914385

GASKET,1.02mm Thk

oil drain tube, Replaces: P/N J901805

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

oil fill cap

1шт.

9

J902666

GASKET

SEAL rocker cover

4шт.

10

J900808

SEAL

injector

4шт.

11

J903380

SEAL

connector

4шт.

15

A77640

GASKET KIT

KIT gasket, engine cylinder block, Replaces: P/N A77480, Includes: Ref. 16 thru 37

1шт.

For complete engine overhaul, order (1) cylinder block kit, (1) valve grind kit, (1) oil pan kit shown in Figure 02-044, front and rear crankshaft seal kit shown in Figure 02-060, and required cylinder head gasket shown in Figure 02-046.

1шт.

16

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

cover

1шт.

17

J914385

GASKET,1.02mm Thk

cover to housing, Replaces: P/N J910500

1шт.

18

J914384

GASKET

housing to cylinder block, Replaces: P/N J907836

1шт.

19

J905595

GASKET

pin housing

1шт.

20

J913994

O-RING

sealing, Replaces: P/N J903927

1шт.

22

J913192

GASKET

cover plate, Replaces: P/N A77441

1шт.

23

22290R1

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

sealing

1шт.

24

J904056

GASKET

tappet cover

1шт.

25

J914386

GASKET

seal retainer, Replaces: P/N J901019

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING sealing, 50 mm ID

1шт.

27

J914387

GASKET

cooler core, Replaces: P/N J904427

1шт.

29

J912532

GASKET

filter head, Replaces: P/N J912638

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

seal, plug

1шт.

31

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING sealing

1шт.

32

J914389

GASKET

fuel pump, Replaces: P/N J905685

1шт.

33

A157927

O-RING,0.21" Thk x 6.225" ID, -362, Cl 5, 75 Duro

flywheel housing

1шт.

35

J914304

GASKET

fuel lift pump, Replaces: P/N J904044

1шт.

37

J900267

SEAL

ASSEMBLY cover bolt

4шт.
