Запчасти Case 580K (02-066) - PISTONS, 4T-390 ENGINE (02) - ENGINE

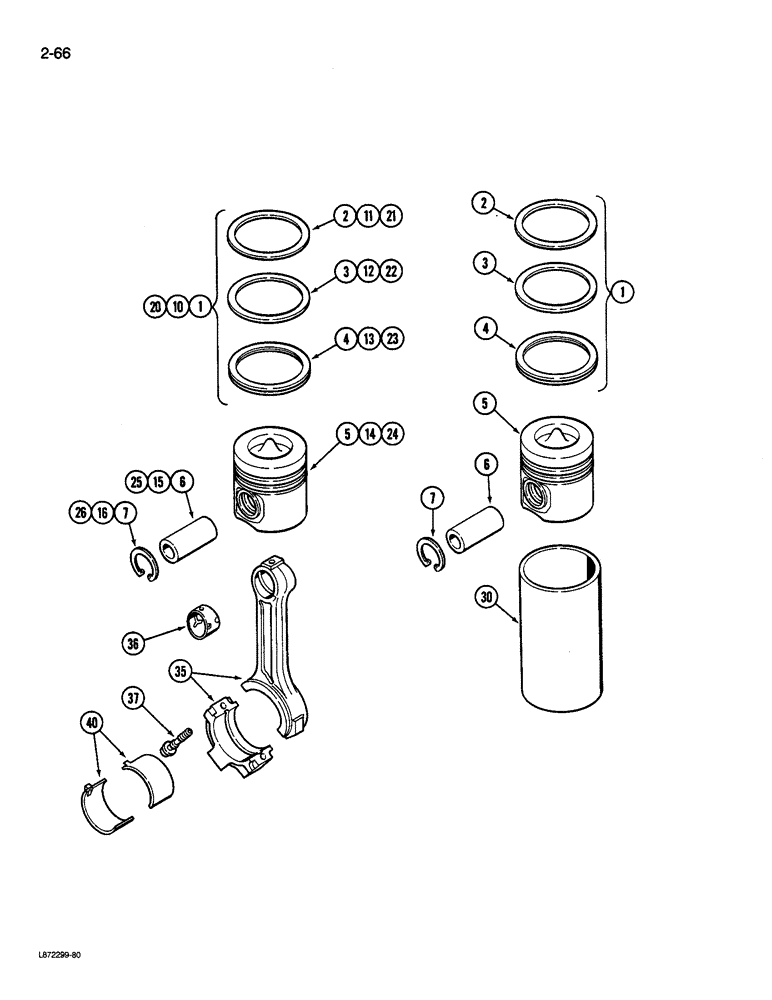

Схема запчастей Case 580K - (02-066) - PISTONS, 4T-390 ENGINE (02) - ENGINE
16
4
26
35
11
7
21
6
37
6
10
1
15
1
36
25
13
20
5
3
14
22
3
12
2
5
23
2
24
7
40
4
30

Артикул

Название

Примечание

Количество

A77419

PISTON

KIT piston, engine, standard, Includes: Ref. 1 thru 7

4шт.

1

A77500

PISTON RING SET

KIT ring, piston, standard, Includes: Ref. 2 thru 4

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, top, pistons

1шт.

3

NSS

NOT SOLD SEPARAT

RING compression, middle, pistons

1шт.

4

NSS

NOT SOLD SEPARAT

RING oil, bottom, pistons

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON engine, standard, stamped 7163

1шт.

6

J901793

PISTON PIN

PIN - piston

1шт.

7

J901706

RING

retainer, pin, pistons

2шт.

A77638

PISTON

KIT piston, engine, 0.5 mm oversize, Includes: Ref. 10 thru 16

4шт.

10

A77501

PISTON RING SET

KIT ring, engine, 0.5 mm oversize, Includes: Ref. 11 thru 13, pistons

1шт.

11

A77501

PISTON RING SET

RING compression, top, pistons

1шт.

12

NSS

NOT SOLD SEPARAT

RING compression, middle, pistons

1шт.

13

NSS

NOT SOLD SEPARAT

RING oil, bottom, pistons

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON engine, 0.5 mm oversize, stamped 8815

1шт.

15

J901793

PISTON PIN

PIN - piston

1шт.

16

J901706

RING

retainer, pin, pistons

2шт.

A77637

PISTON

KIT piston, engine, 1.0 mm oversize, Includes: Ref. 20 thru 26

4шт.

20

A77502

PISTON RING SET

KIT ring, engine, 1.0 mm oversize, Includes: Ref. 21 thru 23, pistons

1шт.

21

NSS

NOT SOLD SEPARAT

RING compression, top, pistons

1шт.

22

NSS

NOT SOLD SEPARAT

RING compression, middle, pistons

1шт.

23

NSS

NOT SOLD SEPARAT

RING oil, bottom, pistons

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON engine, 1.0 mm oversize, stamped 8816

1шт.

25

J901793

PISTON PIN

PIN - piston

1шт.

26

J901706

RING

retainer, pin, pistons

2шт.

30

J904166

SLEEVE

LINER piston, used only in engine block repair, when liner is installed, use only P/N A77419 piston kit

1шт.

35

J901569

ROD, CONNECTING

ROD ASSEMBLY connecting, new, Includes: Ref.36 and 37

4шт.

35

84145405R

REMAN-CONNECTING ROD

580K, Reman For New PN J901569

4шт.

35

84145405C

CORE-ROD CONNECTING

Return Number

4шт.

35

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

4шт.

35

JC901569

CORE-ROD CONNECTING

Return Number, use this part number to return connecting rod for credit

4шт.

36

NSS

NOT SOLD SEPARAT

BUSHING connecting rod to piston pin, order P/N J901569

1шт.

37

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT hex special, MJ11-1.25 x 59 mm, connecting rods

2шт.

40

A77465

BEARING SET

KIT bearing, connecting rod, set, upper and lower, standard

4шт.

40

A77466

BEARING SET

KIT bearing, connecting rod, set, upper and lower, 0.25 mm undersize

4шт.

40

A77467

BEARING LINER

KIT bearing, connecting rod, set, upper and lower, 0.5 mm undersize

4шт.

40

A77468

BEARING SET

KIT bearing, connecting rod, set, upper and lower, 0.76 mm undersize

4шт.

40

A77469

BEARING SET

KIT bearing, connecting rod, set, upper and lower, 1.0 mm undersize

4шт.

JR901569

ROD

ASSEMBLY connecting, remanufactured, North America only

1шт.

Выбрано товаров: 38
