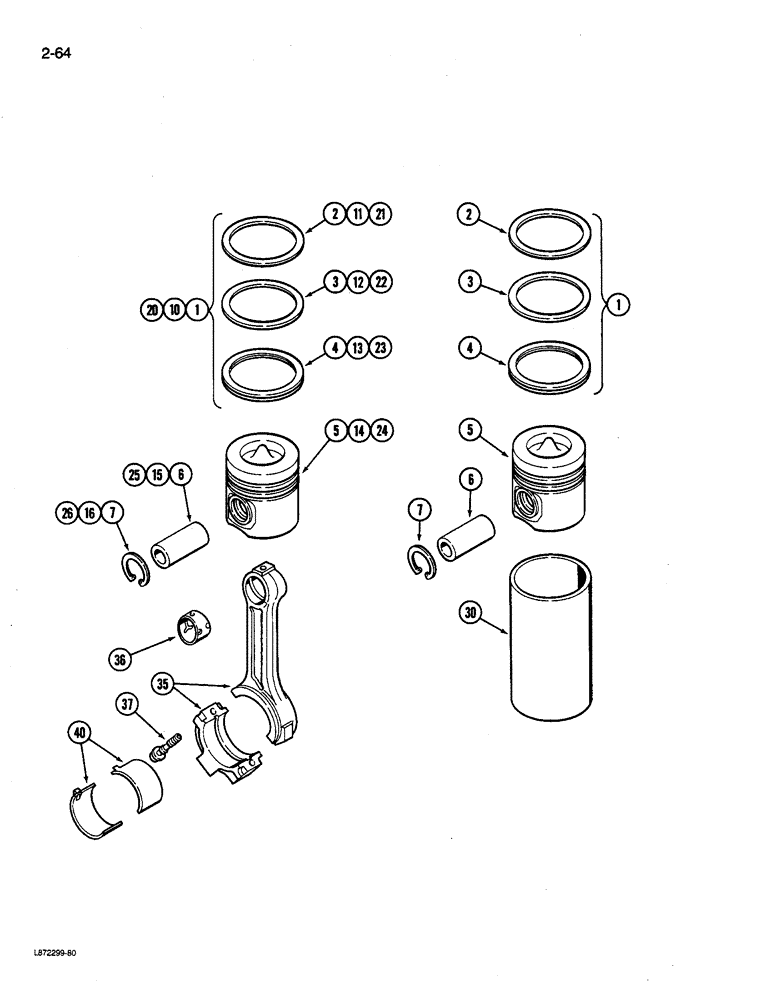

Запчасти Case 580K (02-064) - PISTONS, 4-390 ENGINE (02) - ENGINE

A77410

PISTON

KIT piston, engine, standard, Includes: Ref. 1 thru 5

4шт.

P/N A77410, A77411 and A77412 are short pin piston kits, stamped 6223, 6209, and 6208 on piston. P/N A77818, A77819 and A77820 are long pin piston kits, stamped 1880, 1882, 1881 on piston. Do not mix.

1шт.

1

A77401

PISTON RING SET

KIT ring, piston, standard, Includes: Ref. 2 thru 4

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, top, pistons

1шт.

3

NSS

NOT SOLD SEPARAT

RING compression, middle, pistons

1шт.

4

NSS

NOT SOLD SEPARAT

RING oil, bottom, pistons

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON engine, standard, stamped 6223

1шт.

6

J901793

PISTON PIN

PIN - piston

1шт.

7

J901706

RING

retainer, pin, pistons

2шт.

A77411

PISTON

KIT piston, engine, 0.5 mm oversize, Includes: Ref. 10 thru 13

4шт.

P/N A77410, A77411 and A77412 are short pin piston kits, stamped 6223, 6209, and 6208 on piston. P/N A77818, A77819 and A77820 are long pin piston kits, stamped 1880, 1882, 1881 on piston. Do not mix.

1шт.

10

A77463

PISTON RING SET

KIT ring, engine, 0.5 mm oversize, pistons

1шт.

11

NSS

NOT SOLD SEPARAT

RING compression, top, pistons

1шт.

12

NSS

NOT SOLD SEPARAT

RING compression, middle, pistons

1шт.

13

NSS

NOT SOLD SEPARAT

RING oil, bottom, pistons

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON engine, 0.5 mm oversize, stamped 6209

1шт.

15

J901793

PISTON PIN

PIN - piston

1шт.

16

J901706

RING

retainer, pin, pistons

2шт.

A77412

PISTON

KIT piston, engine, 1.0 mm oversize, Includes: Ref. 20 thru 26

4шт.

P/N A77410, A77411 and A77412 are short pin piston kits, stamped 6223, 6209, and 6208 on piston. P/N A77818, A77819 and A77820 are long pin piston kits, stamped 1880, 1882, 1881 on piston. Do not mix.

1шт.

20

A77464

PISTON RING SET

KIT ring, engine, 1.0 mm oversize, Includes: Ref. 21 thru 23, pistons

1шт.

21

NSS

NOT SOLD SEPARAT

RING compression, top, pistons

1шт.

22

NSS

NOT SOLD SEPARAT

RING compression, middle, pistons

1шт.

23

NSS

NOT SOLD SEPARAT

RING oil, bottom, pistons

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON engine, 1.0 mm oversize, stamped 6208

1шт.

25

J901793

PISTON PIN

PIN - piston

1шт.

26

J901706

RING

retainer, pin, pistons

2шт.

30

J904166

SLEEVE

LINER piston, used only in engine block repair, when liner is installed, use only P/N A77410 piston kit

1шт.

35

J901569

ROD, CONNECTING

ROD ASSEMBLY connecting, new, Includes: Ref. 36 and 37

4шт.

35

84145405R

REMAN-CONNECTING ROD

580K, Reman For New PN J901569

4шт.

35

84145405C

CORE-ROD CONNECTING

Return Number

4шт.

35

JR901569

ROD

Assembly connecting, remanufactured

4шт.

35

JC901569

CORE-ROD CONNECTING

Return Number, use this part number to return connecting rod for credit

4шт.

35

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

4шт.

35

JC942581

CORE-ROD CONNECTING

Return Number

4шт.

36

NSS

NOT SOLD SEPARAT

BUSHING rod to piston pin, order J901569, connecting rods

1шт.

37

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT hex special, MJ11-1.25 x 59 mm, connectiong rods

2шт.

40

A77465

BEARING SET

KIT bearing, connecting rod, set, upper and lower, standard

4шт.

40

A77467

BEARING LINER

KIT bearing, connecting rod, set, upper and lower, 0.25 mm undersize

4шт.

40

A77467

BEARING LINER

KIT bearing, connecting rod, set, upper and lower, 0.5 mm undersize

4шт.

40

A77468

BEARING SET

KIT bearing, connecting rod, set, upper and lower, 0.76 mm undersize

4шт.

40

A77469

BEARING SET

KIT bearing, connecting rod, set, upper and lower, 1.0 mm undersize

4шт.
