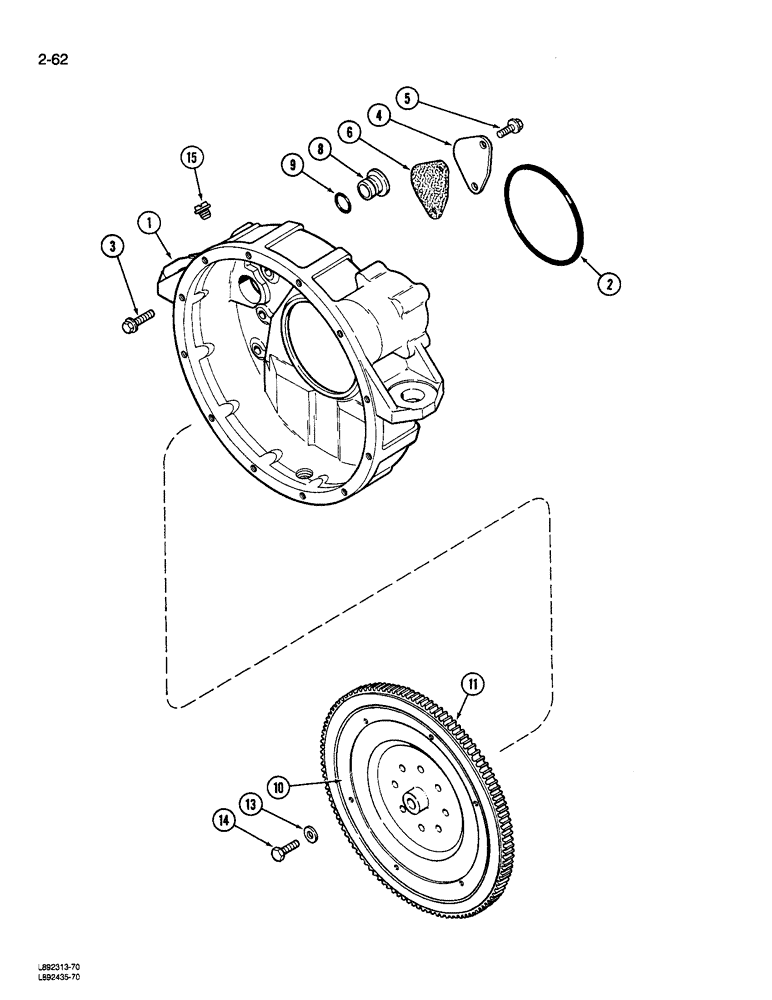

Запчасти Case 580K (02-062) - FLYWHEEL AND HOUSING, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

1

J903287

CASE

HOUSING flywheel

1шт.

Hole showing in drawing at bottom of this flywheel housing accepts a 3/4" plug P/N 221-845

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING housing to block, Replaces: P/N A157927

1шт.

3

J910540

FLANGE BOLT,Hex, M12 x 40mm, Cl 10.9

BOLT hex flange, 12 mm-1.75 x 40 mm, Replaces: P/N J901408

8шт.

4

J908095

PLATE

cover

1шт.

5

J902735

BOLT,M8 - 1.25 x 21 mm

hex, flange, 12 mm-1.75 x 40 mm, Replaces: P/N J901408

2шт.

6

J908096

GASKET

cover plate

1шт.

8

J910248

PLUG

housing, Replaces: P/N J908001

1шт.

9

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

plug, flywheel housing, Replaces: P/N J904469

1шт.

10

J910684

FLYWHEEL WITH GEAR

FLYWHEEL ASSEMBLY crankshaft, Includes: Ref. 11

1шт.

11

J901774

GEAR,Flywheel

GEAR flywheel

1шт.

13

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

flat, flywheel bolt

8шт.

14

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT hex head, 12 mm-1.25 x 32 mm

8шт.

15

353-225

PLUG,Sltd Hd, 3/4"-16

hex head, 3/4" NF

1шт.
