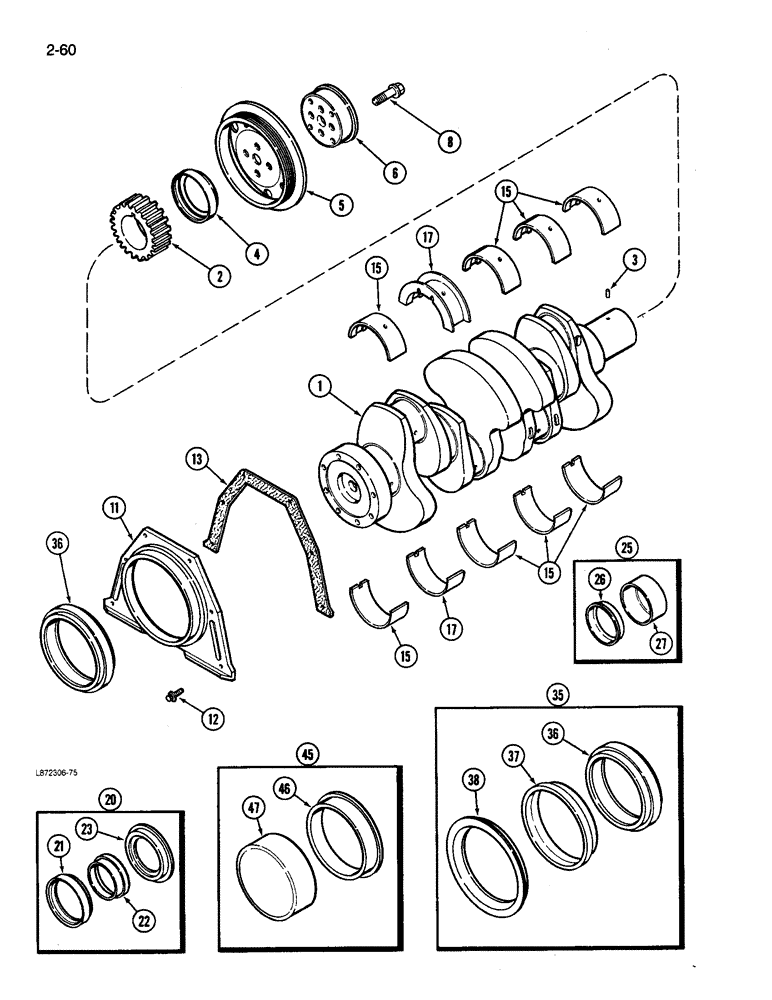

Запчасти Case 580K (02-060) - CRANKSHAFT, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

JR916190

CRANKCASE

CRANKSHAFT ASSEMBLY remanufactured, North America only

1шт.

J929036R

REMAN-CRANKSHAFT

580K, Reman for New P/N JR916190

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC908031

CORE-CRANKSHAFT

RETURN NUMBER use this part number to return crankshaft for credit

1шт.

1

J916190

CRANKSHAFT

ASSEMBLY engine, new, Replaces: P/N J908031, Includes: Ref. 2 and 3

1шт.

J929036R

REMAN-CRANKSHAFT

580K, Reman for New P/N J916190

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J901258

GEAR

crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft front, order P/N J904353 Ref. 20

1шт.

5

J914494

PULLEY,181.25mm OD

crankshaft dampener, Replaces: P/N J903858

1шт.

6

J905820

ADAPTER

FLANGE adapter, pulley

1шт.

8

J903857

BOLT,Hex, M12 x 1.25 x 36mm

hex flange head, 12 mm-1.75 x 36 mm

4шт.

11

J913447

SEAL RETAINER

RETAINER rear seal, Replaces: P/N J906526

1шт.

12

J913638

FLANGE BOLT,Hex, M6 x 15mm, Cl 8.8, Full Thd

BOLT, Hex Flg, M6 x 15, 8.8, Full Thd

6шт.

13

J914386

GASKET

seal retainer, Replaces: P/N J901019

1шт.

15

A77405

CRANKSHAFT BEARING

KIT bearing, main, set, upper and lower, standard

4шт.

15

A77472

BEARING SET

KIT bearing, main, set, upper and lower, 0.25 mm undersize

4шт.

15

A77474

BEARING SET

KIT bearing, main, set, upper and lower, 0.5 mm undersize

4шт.

15

A77476

BEARING SET

KIT bearing, main, set, upper and lower, 0.75 mm undersize

4шт.

15

A77478

BEARING SET

KIT bearing, main, set, upper and lower, 1.0 mm undersize

4шт.

17

A77406

CRANKSHAFT BEARING

KIT bearing, thrust, main, set, upper and lower, standard

1шт.

17

A77473

THRUST BEARING

KIT bearing, thrust, main, set, upper and lower, 0.25 mm undersize

1шт.

17

A77475

THRUST BEARING

KIT bearing, thrust, main, set, upper and lower 0.5 mm undersize

1шт.

17

A77477

THRUST BEARING

KIT bearing, thrust, main, set, upper and lower, 0.75 mm undersize

1шт.

17

A77479

THRUST BEARING

KIT bearing, thrust, main, set, upper and lower, 1.0 mm undersize

1шт.

20

J904353

GASKET KIT

KIT oil seal, crankshaft front, Includes: Ref. 21 thru 23

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

25

J906080

PACKAGE, REPAIR

KIT wear sleeve, crankshaft front, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

27

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

35

J909410

GASKET KIT

KIT oil seal, crankshaft rear, Includes: Ref. 36 thru 38

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.

37

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

38

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

45

J906081

SLEEVE

KIT wear sleeve, crankshaft rear, Includes: Ref. 46 and 47

1шт.

46

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

47

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.
