Запчасти Case 580K (02-056) - CYLINDER BLOCK, 4T-390 ENGINE (02) - ENGINE

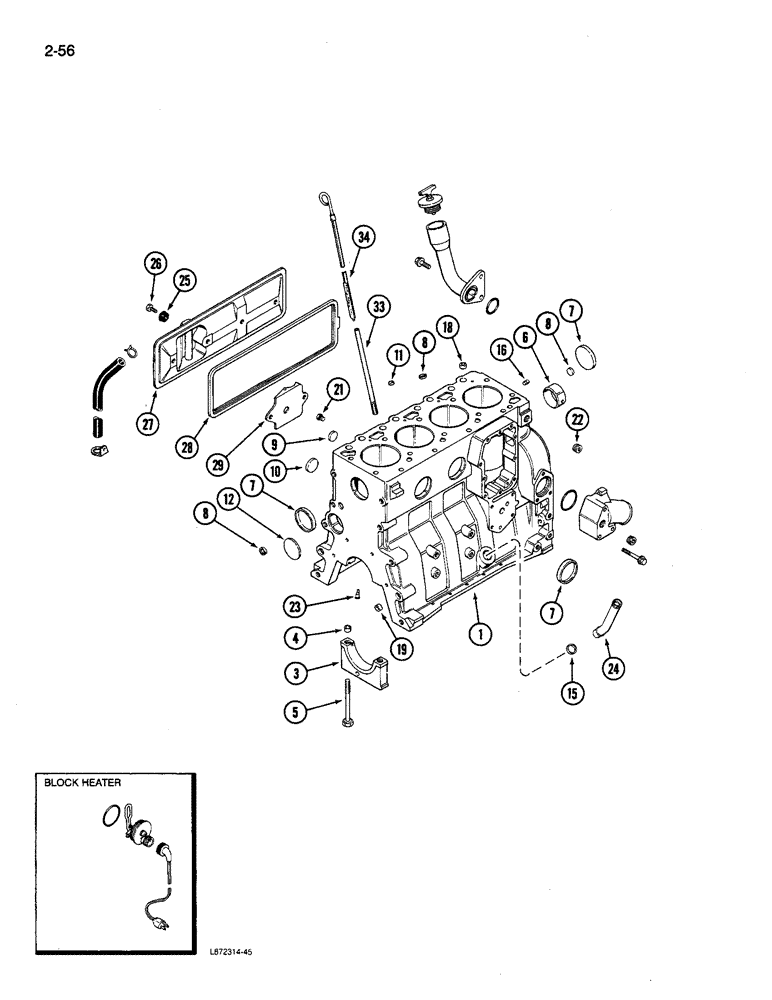

Схема запчастей Case 580K - (02-056) - CYLINDER BLOCK, 4T-390 ENGINE (02) - ENGINE
21
6
28
11
26
33
8
8
7
29
3
18
10
24
23
19
9
7
34
16
25
15
5
8
4
1
27
22
7
12

Артикул

Название

Примечание

Количество

A174234

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY, 4T-390 standard, complete, new, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe

1шт.

1989068C2R

REMAN-REPLACEMENT EN

1шт.

4T-390C

CORE-REPLACEMENT ENG

Return Part Number, Complete

1шт.

A174237

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY, 4T-390 optional, complete, new, with security module, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe

1шт.

1989092C3R

REMAN-BASIC ENGINE

1шт.

1989092C3C

CORE-BASIC ENGINE

Return Part Number

1шт.

J905378

SKELETON ENGINE

BLOCK ASSEMBLY short, engine, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, order short block and P/N J905813 kit

1шт.

JR905378

BLOCK

BLOCK ASSEMBLY short, engine, remanufactured, North American only

1шт.

JC905378

CORE-ENGINE

Return Part Number use this part number to return short block core for credit

1шт.

JR933236

REMAN-SHORT ENGINE

1шт.

JC933236

CORE-SHORT ENGINE

Return Part Number

1шт.

1

J905376

CRANKCASE

BLOCK ASSEMBLY stripped, engine, order block and P/N J905813 kit, Includes: Ref. 3 thru 9

1шт.

3

J900967

BEARING CAP

CAP main bearing

5шт.

4

J900068

BEARING WASHER

RING dowel, 18 mm OD

10шт.

5

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT bearing cap, special

10шт.

6

REF

INSTRUCTION

BUSHING camshaft front, see Figure 02-050

1шт.

7

J900965

PLUG

PLUG expansion, 58 mm OD

4шт.

8

J900956

PLUG

PLUG expansion, 18 mm OD

3шт.

9

A77539

PLUG

PLUG expansion, 26 mm

2шт.

J905813

PACKAGE, REPAIR

KIT block hardware, Includes: Ref. 10 thru 23

1шт.

10

J900958

PLUG

PLUG expansion, 32 mm OD

2шт.

11

J900955

PLUG

PLUG expansion, 10 mm OD

1шт.

12

J900687

PLUG

PLUG expansion, welch, 60 mm OD

1шт.

15

A77439

PLUG

PLUG expansion, 0.886 mm OD

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

PIN dowel, 16 mm long

2шт.

18

J900068

BEARING WASHER

RING dowel, 16 mm OD

2шт.

19

J900068

BEARING WASHER

RING dowel, 18 mm OD

2шт.

21

J906619

PLUG,1/8" - 27

PLUG hex socket pipe, 1/8"-27 PT

2шт.

22

A77429

PLUG

PLUG hex socket pipe, 1/4"-18 PT

1шт.

23

J901020

NOZZLE CAP

NOZZLE piston cooling

4шт.

24

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE drain, oil

1шт.

25

J900267

SEAL

SEAL ASSEMBLY cover bolt

4шт.

26

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

2шт.

27

J905023

COVER

COVER tappet

1шт.

28

J904056

GASKET

GASKET tappet cover

1шт.

29

J907586

BAFFLE

BAFFLE tappet cover

1шт.

33

J905779

TUBE,9.52 mm OD x 228 mm L

TUBE dipstick

1шт.

34

J905781

DIPSTICK

DIPSTICK oil level gauge

1шт.

Выбрано товаров: 38
