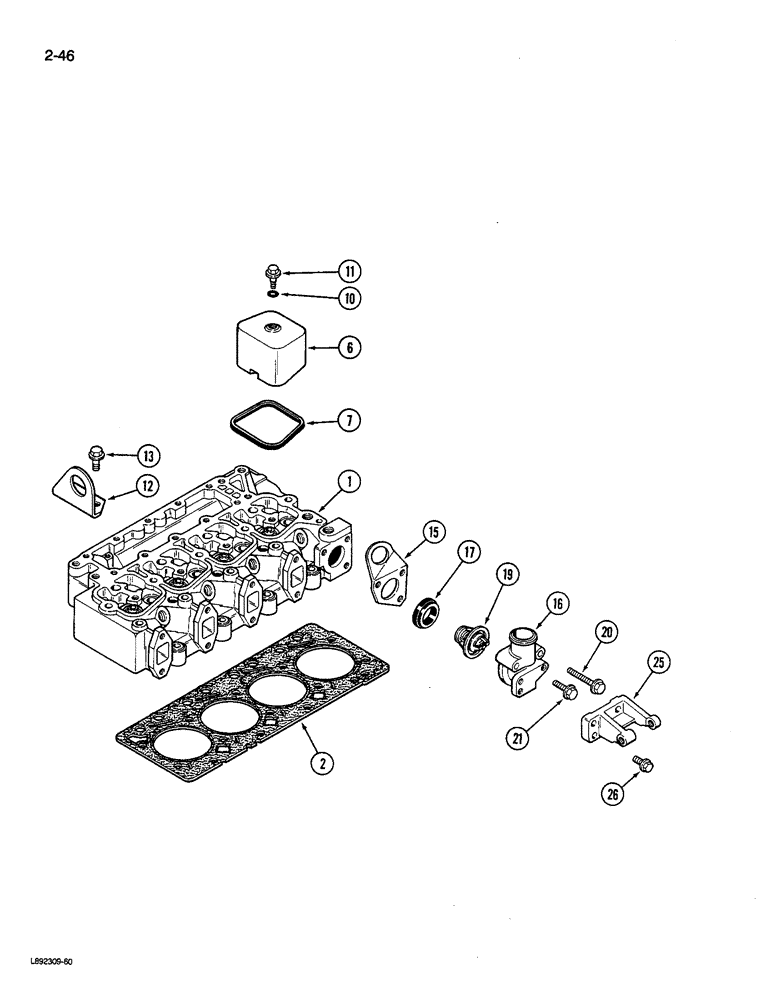

Запчасти Case 580K (02-046) - CYLINDER HEAD AND COVERS, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD cylinder, engine, see Figure 02-048, cylinder head and covers

1шт.

2

J915726

GASKET

cylinder head, standard, 1 notch, Replaces: P/N J907054, cylinder head and covers

1шт.

P/N J915726 subs to P/N J282999

1шт.

2

J915727

CYLINDER HEAD GASKET

cylinder head, 0.23 mm thicker, 2 notches, Replaces: P/N J907054, cylinder head and covers

1шт.

P/N J915727 subs to P/N J921395

1шт.

2

J915728

CYLINDER HEAD GASKET

cylinder head, 0.51mm thicker, 3 notches, Replaces: P/N J907056, cylinder head and covers

1шт.

P/N J915728 subs to P/N J921397

1шт.

6

J902604

COVER

rocker, cylinder head and covers

4шт.

7

J902666

GASKET

SEAL rocker cover, cylinder head and covers

4шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt, Replaces: P/N J901837, cylinder head and covers

4шт.

11

J907049

BOLT,Hex

special, 8 mm-1.25 x 21.25 mm, cylinder head and covers

4шт.

11

J902375

FLANGE BOLT,Hex

BOLT hex flange head, 8 mm-1.25 x 13.5 mm, if equipped, cylinder head and covers

4шт.

12

J908118

BRACKET

lifting, rear, cylinder head and covers

1шт.

13

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

hex flange head, 12 mm-1.74 x 25 mm, cylinder head and covers

2шт.

15

J903757

BRACKET

lifting, front, thermostat and housing

1шт.

16

J914409

HOUSING

thermostat, Replaces: P/N J903756

1шт.

17

J903301

GASKET

housing, thermostat

1шт.

19

J912587

THERMOSTAT

water, 95° C, housing

1шт.

20

J903096

FLANGE BOLT,Hex, M8 x 70mm, Cl 8.8

BOLT hex flange head, 8 mm-1.25 x 70 mm, thermostat and housing

2шт.

21

J900632

FLANGE BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

BOLT hex flange head, 8 mm-1.25 x 35 mm, thermostat and housing

1шт.

25

J910713

SUPPORT

alternator mounting, thermostat and housing

1шт.

26

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex flange head, 8 mm-1.25 x 25 mm, thermostat and housing

3шт.
