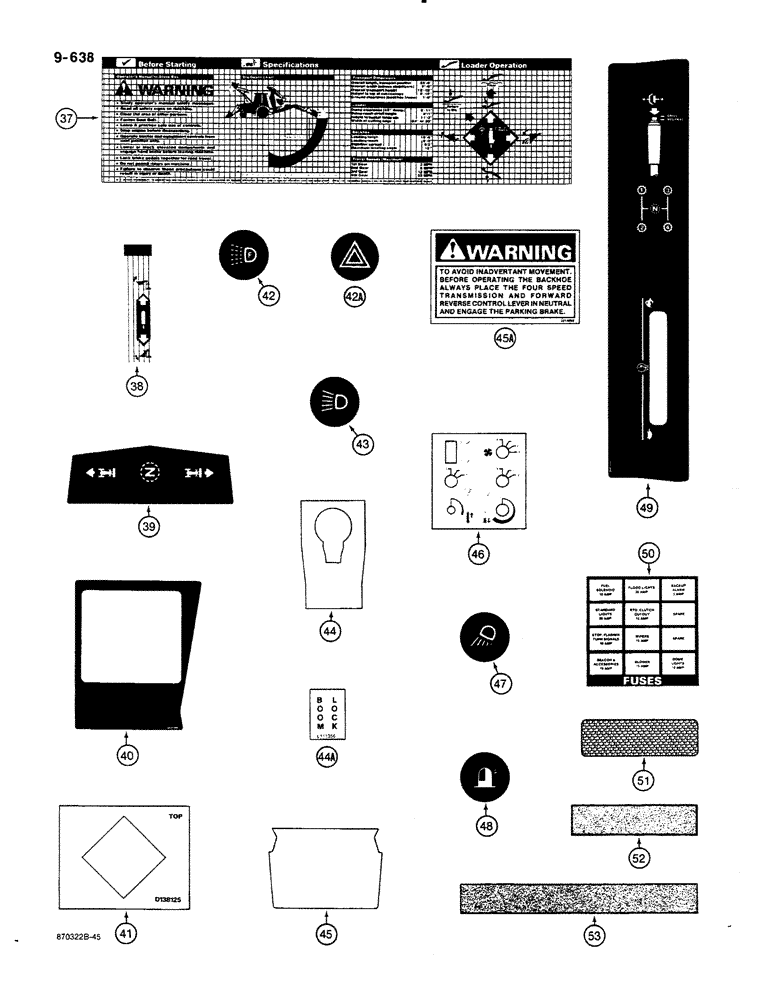

Запчасти Case 580K (09-638) - DECALS (09) - CHASSIS/ATTACHMENTS

D102875

DECAL

KIT decal, 580K, Includes: Ref. 37 through 53 in this figure and parts in Figures 09-634 and 09-636

1шт.

37

D138014

DECAL

Warning, before starting engine study operator's manual messages/dig depth specs/loader control pattern, front instrument panel, storage compartment

1шт.

38

D138704

DECAL

clam bucket control pattern, front instrument panel, storage compartment

1шт.

39

D137615

DECAL

shuttle shift lever control pattern, on steering column cover

1шт.

40

D137399

DECAL

at loader control lever boot, front console

1шт.

41

D138125

DECAL

transparent green, under turn signal arrow symbols

2шт.

42

D137274

DECAL

flasher lamp symbol, front console switch plate, no longer available, order D141643 flasher decal

1шт.

42a

D141643

DECAL

flasher lamp symbol, front console switch plate

1шт.

43

D137272

DECAL

driving lamp symbol, front console switch plate

1шт.

44

R53911

DECAL

left-hand cab console, upper, at cup holder

1шт.

44a

L111356

DECAL

boom lock

1шт.

45

R53912

DECAL

left-hand cab console, lower

1шт.

45a

321-6958

DECAL

Warning, to avoid inadvertant movement before operating the backhoe

1шт.

46

97300C1

DECAL

instrument symbols, heater, air conditioner, blower, wipers, and dome lamp, cab control panel, models with air conditioning, replaces R52439 decal

1шт.

46

97301C1

DECAL

instrument symbols, heater, blower, wipers, and dome lamp, cab control panel, models without air conditioning

1шт.

47

D137273

DECAL

optional work lamp symbol, right-hand console switch plate

1шт.

48

D137279

DECAL

rotating beacon symbol, right-hand console switch plate

1шт.

49

D137400

DECAL

hand throttle control pattern, right-hand side console

1шт.

50

D132958

DECAL

fuse location, fuse box cover

1шт.

51

D87870

DECAL

REFLECTOR red

2шт.

52

D55216

PAD,2" x 9"

STRIP anti-skid, steps

6шт.

53

D80270

ANTI-SKID STRIP,635mm / 25 Inch

STRIP, ANTI-SKID, Operators compartment

1шт.
