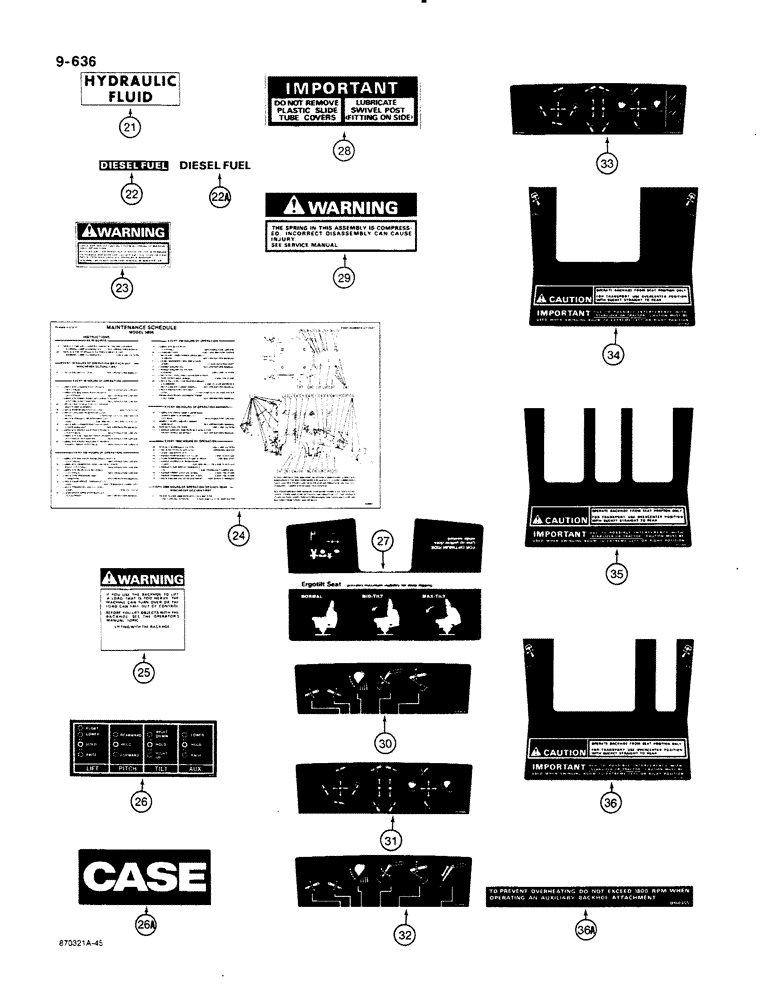

Запчасти Case 580K (09-636) - DECALS (09) - CHASSIS/ATTACHMENTS

D102875

DECAL

KIT decal, 580K, Includes: Ref. 21 through 36A in this figure and parts in Figures 09-634 and 09-638

1шт.

21

321-229

DECAL

Hydraulic Fluid

1шт.

22

321-2601

DECAL

Diesel Fuel, no longer used, order 321-230

1шт.

22a

321-230

DECAL

Diesel Fuel

1шт.

23

321-6672

DECAL

Warning, check and service cooling system

1шт.

24

D137607

DECAL

Maintenance Schedule, 580K

1шт.

25

321-6046

WARNING DECAL

DECAL, WARNING, Backhoe lifting load

1шт.

26

321-6059

DECAL

three-point hitch control pattern

1шт.

26a

D124115

DECAL

Case, three-point hitch frame

2шт.

27

N14315

DECAL

seat tilt adjustment, suspension seats only

1шт.

28

N14295

DECAL

Important, do not remove plastic slide tube covers

1шт.

29

321-6774

WARNING DECAL

DECAL, WARNING, The spring in this assembly is compressed, Replaces 321-3055 decal for service

1шт.

30

D137403

DECAL

standard backhoe control pattern, with foot swing, upper, for models with auxiliary hydraulics for optional rear hydraulic attachments order D137401

1шт.

See Figure 09-638 for upper and lower backhoe control pattern decals used on models with tilt backhoe controls.

1шт.

31

D137405

DECAL

standard backhoe control pattern, with hand swing, upper

1шт.

32

D137401

DECAL

extendahoe control pattern, with foot swing, upper or models with auxiliary hydraulics for optional rear hydraulic attachments

1шт.

See Figure 09-638 for upper and lower backhoe control pattern decals used on models with tilt backhoe controls.

1шт.

33

D137407

DECAL

extendahoe control pattern, with hand swing, upper or models with auxiliary hydraulics for optional rear hydraulic attachments

1шт.

34

D137404

DECAL

standard backhoe control pattern, with foot swing, lower, for models with auxiliary hydraulics for optional rear hydraulic attachments order D137402

1шт.

See Figure 09-638 for upper and lower backhoe control pattern decals used on models with tilt backhoe controls.

1шт.

35

D137406

DECAL

standard backhoe control pattern, with hand swing, lower

1шт.

36

D137402

DECAL

extendahoe control pattern, lower or models with auxiliary hydraulics for optional rear hydraulic attachments

1шт.

See Figure 09-638 for upper and lower backhoe control pattern decals used on models with tilt backhoe controls.

1шт.

36a

D140355

DECAL

to prevent overheating do not exceed 1800 rpm when operating an auxiliary backhoe attachment, used on models with auxiliary hydraulics for optional rear hydraulic attachments, on side console, not included in kit, purchase separately

1шт.
