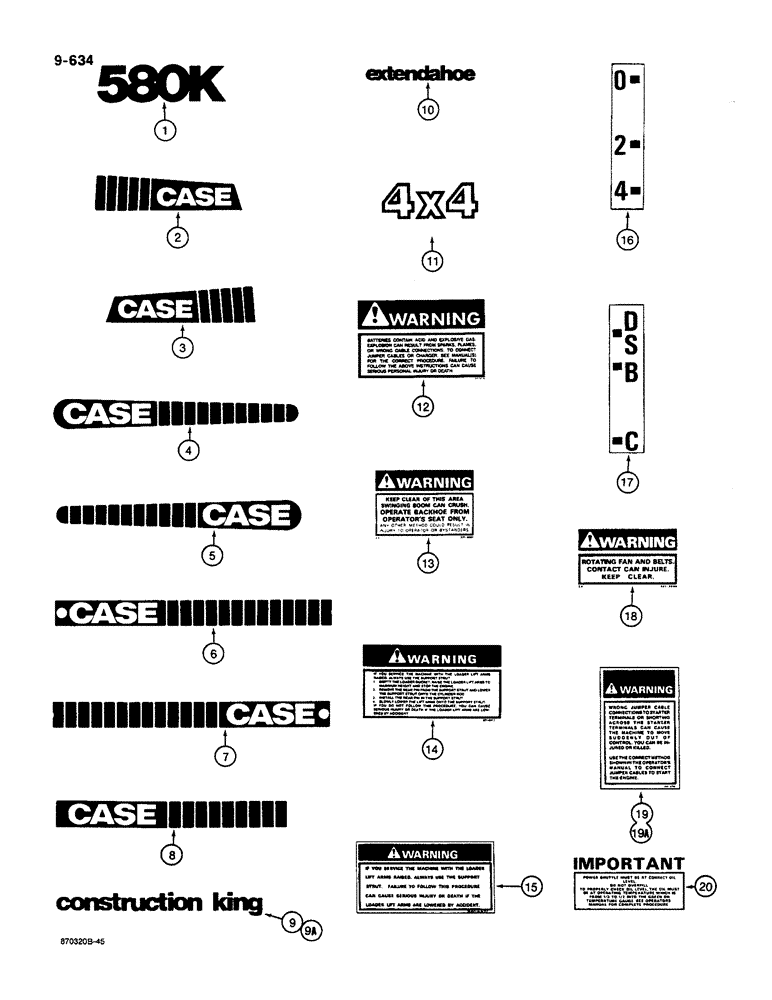

Запчасти Case 580K (09-634) - DECALS (09) - CHASSIS/ATTACHMENTS

D102875

DECAL

KIT decal, 580K, Includes: Ref. 1 through 20 in this figure and parts in Figures 09-636 and 09-638

1шт.

1

D136976

DECAL

580K

2шт.

1a

D140337

DECAL

580K, white color

2шт.

White decals for use on dark painted tractors are not illustrated and are not included in the decal kit. Order separately.

1шт.

2

D136977

DECAL

Case, with treads, right hand side of machine, side panel

1шт.

2a

D140338

DECAL

Case, with treads, right hand side of machine, side panel, white color

1шт.

White decals for use on dark painted tractors are not illustrated and are not included in the decal kit. Order separately.

1шт.

3

D136978

DECAL

Case, with treads, left hand side of machine, side panel

1шт.

3a

D140339

DECAL

Case, with treads, left hand side of machine, side panel, white color

1шт.

White decals for use on dark painted tractors are not illustrated and are not included in the decal kit. Order separately.

1шт.

4

D136980

DECAL

Case, with right hand treads, standard dipper

1шт.

4a

D140341

DECAL

Case, with right hand treads, standard dipper, white color

1шт.

White decals for use on dark painted tractors are not illustrated and are not included in the decal kit. Order separately.

1шт.

5

D136979

DECAL

Case, with left hand treads, standard dipper

1шт.

5a

D140340

DECAL

Case, with left hand treads, standard dipper, white color

1шт.

White decals for use on dark painted tractors are not illustrated and are not included in the decal kit. Order separately.

1шт.

6

D137086

DECAL

Case, with right hand treads, extendable dipper

1шт.

6a

D140344

DECAL

Case, with right hand treads, extendable dipper, white color

1шт.

White decals for use on dark painted tractors are not illustrated and are not included in the decal kit. Order separately.

1шт.

7

D137085

DECAL

Case, with left hand treads, extendable dipper

1шт.

7a

D140343

DECAL

Case, with left hand treads, extendable dipper, white color

1шт.

White decals for use on dark painted tractors are not illustrated and are not included in the decal kit. Order separately.

1шт.

8

D136981

DECAL

Case, with right hand treads, rear closure panel

1шт.

8a

D140342

DECAL

Case, with right hand treads, rear closure panel, white color

1шт.

White decals for use on dark painted tractors are not illustrated and are not included in the decal kit. Order separately.

1шт.

9

D123950

DECAL

construction king, brown, ROPS canopy or cab units with yellow fenders

2шт.

9a

D144674

DECAL

construction king, tan, ROPS cab units with brown fenders

2шт.

10

D123945

DECAL

extendahoe

2шт.

11

D124183

DECAL

4 x 4, four wheel drive models only

2шт.

11a

D140345

DECAL

4 x 4, four wheel drive models only, white color

2шт.

White decals for use on dark painted tractors are not illustrated and are not included in the decal kit. Order separately.

1шт.

12

321-6714

DECAL

Warning, batteries contain acid and explosive gas

1шт.

13

321-4481

DECAL

Warning, keep clear of this area swinging boom can crush

2шт.

14

321-6413

DECAL

Warning, left hand loader lift arm support strut usage

1шт.

15

321-6671

DECAL

Warning, right hand loader lift arm support strut usage

1шт.

16

321-1708

DECAL

0 - 2 - 4, clam bucket opening indicator

1шт.

17

321-1707

DECAL

clam bucket position

1шт.

18

321-3596

DECAL

Warning, rotating fan and belts

2шт.

19

321-6718

DECAL

Warning, wrong jumper cable connections to starter terminals, 4-5/16" high, no longer used, order 321-6872

1шт.

19a

321-6872

DECAL

Warning, wrong jumper cable connections to starter terminals, 3-3/16" high

1шт.

20

321-3882

DECAL

Important, power shuttle oil level

1шт.
