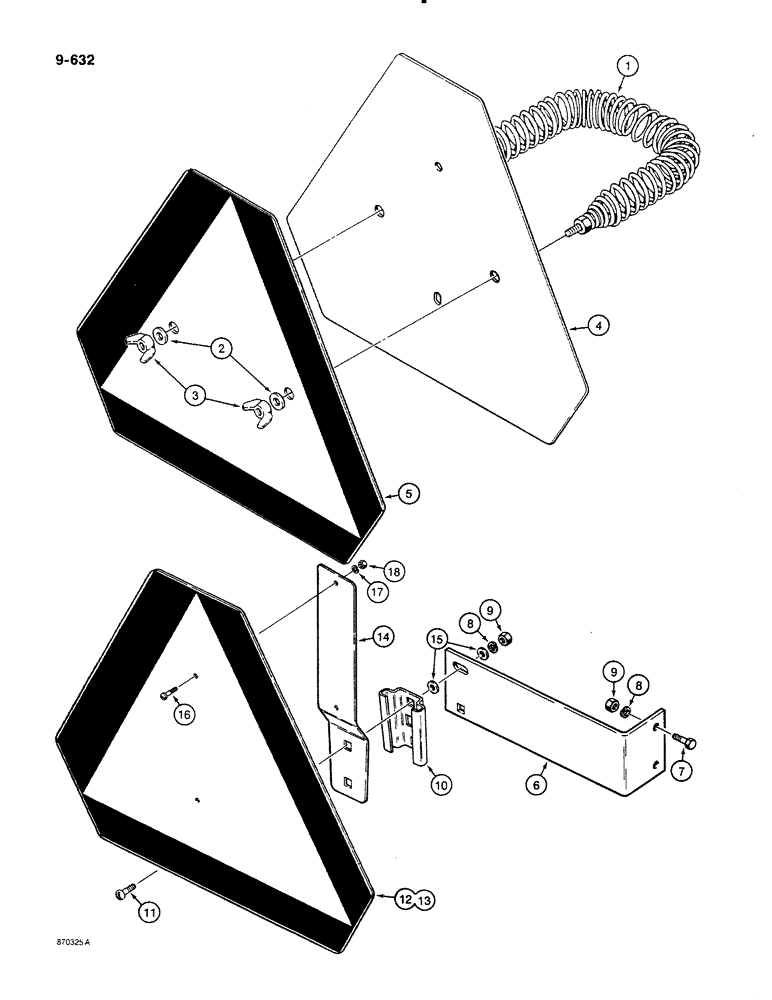

Запчасти Case 580K (09-632) - SLOW MOVING VEHICLE EMBLEM, USED ON MODELS WITH AND WITHOUT BACKHOE (09) - CHASSIS/ATTACHMENTS

1

D52564

SPRING

emblem retaining, used on models with backhoe

1шт.

2

195-518

WASHER,1/4", SAE

flat, 1/4", plated, used on models with backhoe

2шт.

3

129-409

WING NUT,1/4"-20

NUT, WING, , Used on models with backhoe 1/4"-20

2шт.

4

D123347

WARNING SIGN

EMBLEM plate and decal, slow moving vehicle, used on models with backhoe, Includes: Ref. 5

1шт.

5

321-4311

DECAL

slow moving vehicle emblem, used on models with backhoe

1шт.

6

D140308

BRACKET

slow moving vehicle emblem mounting, horizontal, used on models without backhoe

1шт.

7

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Used on models without backhoe

2шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Used on models without backhoe 5/16"

3шт.

9

9635082

NUT,5/16" - 18, Gr 5

Used on models without backhoe 5/16"-18, G5

3шт.

10

A59457

BRACKET

emblem mounting, short, used on models without backhoe

1шт.

11

111-215

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2, Full Thd

short neck, 5/16" - 18 NC x 3/4", plated, used on models without backhoe

2шт.

D123347

WARNING SIGN

EMBLEM ASSEMBLY plate and decal, used on models without backhoe, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

PLATE SMV emblem, used on models without backhoe

1шт.

13

321-4311

DECAL

slow moving vehicle emblem, used on models without backhoe

1шт.

14

A59451

BRACKET

emblem mounting, vertical, used on models without backhoe

1шт.

15

195-521

WASHER,5/16", SAE

flat, 5/16", plated, used on models without backhoe

2шт.

16

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE SCREW pan head slotted, No. 10 - 24 NC x 1/2", plated, used on models without backhoe

2шт.

17

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Used on models without backhoe #10

2шт.

18

129-17

NUT,Hex, #10 - 24

NUT hex, No. 10 - 24 NC, plated, used on models without backhoe

2шт.
