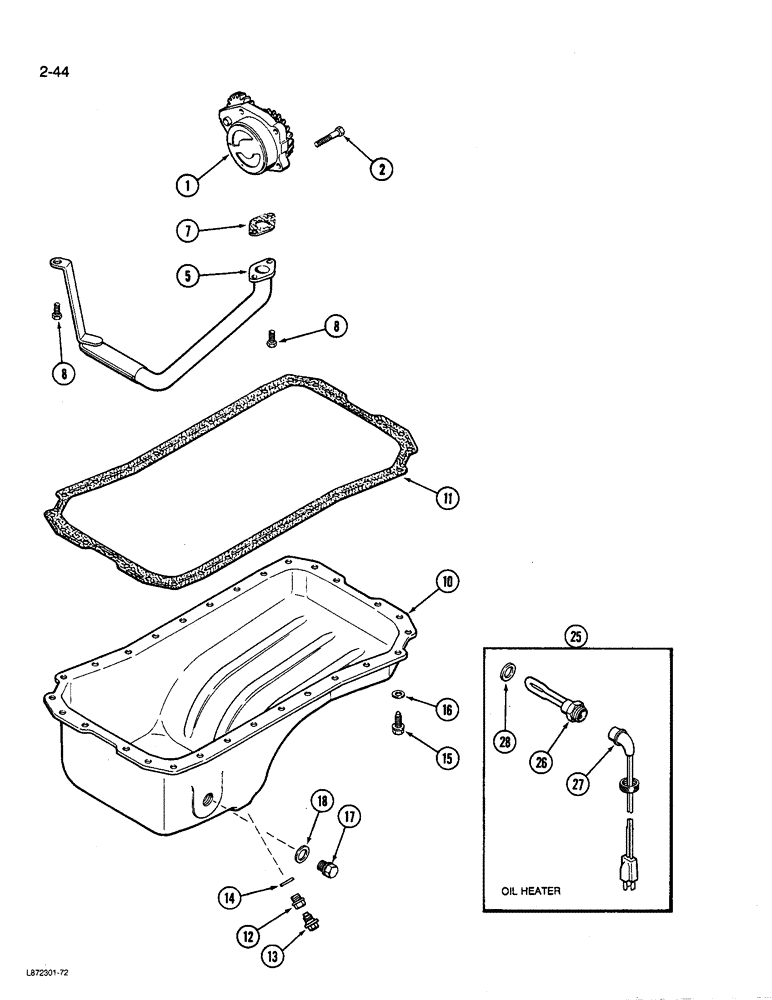

Запчасти Case 580K (02-044) - OIL PUMP AND OIL PAN, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

1

J914005

PUMP, ENGINE OIL

PUMP ASSEMBLY oil, engine, Replaces: P/N J906412

1шт.

JR914005

PUMP

PUMP oil, remanufactured, North America only

1шт.

JC914005

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER use this part number to return pump core for credit

1шт.

JR930336

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926202

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT hex, 8 mm-1.25 x 30 mm

4шт.

5

J905206

TUBE,1" OD

TUBE suction, oil

1шт.

7

J914383

GASKET

GASKET mounting, tube, Replaces: P/N J905468

1шт.

Part of Gasket Kit P/N A77482

1шт.

8

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

3шт.

10

J901049

PAN, ENGINE OIL

PAN, OIL PAN oil, engine

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET oil pan, order P/N A77482

1шт.

Part of Gasket Kit P/N A77482

1шт.

12

J900215

PLUG

PLUG drain, oil, alternate with P/N J911638 plug

1шт.

13

J911638

PLUG,M18 x 1.5

PLUG drain, oil magnetic, alternate with P/N J900215 plug

1шт.

14

J900216

PACKING RING

WASHER seal, drain plug

1шт.

Part of Gasket Kit P/N A77482

1шт.

15

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT - hex flange special, 8 mm - 1.25 x 25 mm

28шт.

16

J907537

SPRING WASHER

WASHER spring, pan bolt

28шт.

17

J904386

PLUG

PLUG pipe

1шт.

18

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER seal, plug

1шт.

A77482

KIT

KIT gasket, oil pan, Includes: Ref. 7, 11 and 14

1шт.

25

A77490

KIT

KIT heater, engine oil, Includes: Ref. 26 and 27

1шт.

When kit is ordered, Washer P/N J902425 must also be ordered. See Ref. 28.

1шт.

26

NSS

NOT SOLD SEPARAT

ELEMENT heater, 12 volt, order P/N A77490, engine oil

1шт.

27

J905113

CABLE

CABLE electric, heater, engine oil

1шт.

28

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER seal, engine oil heater

1шт.
