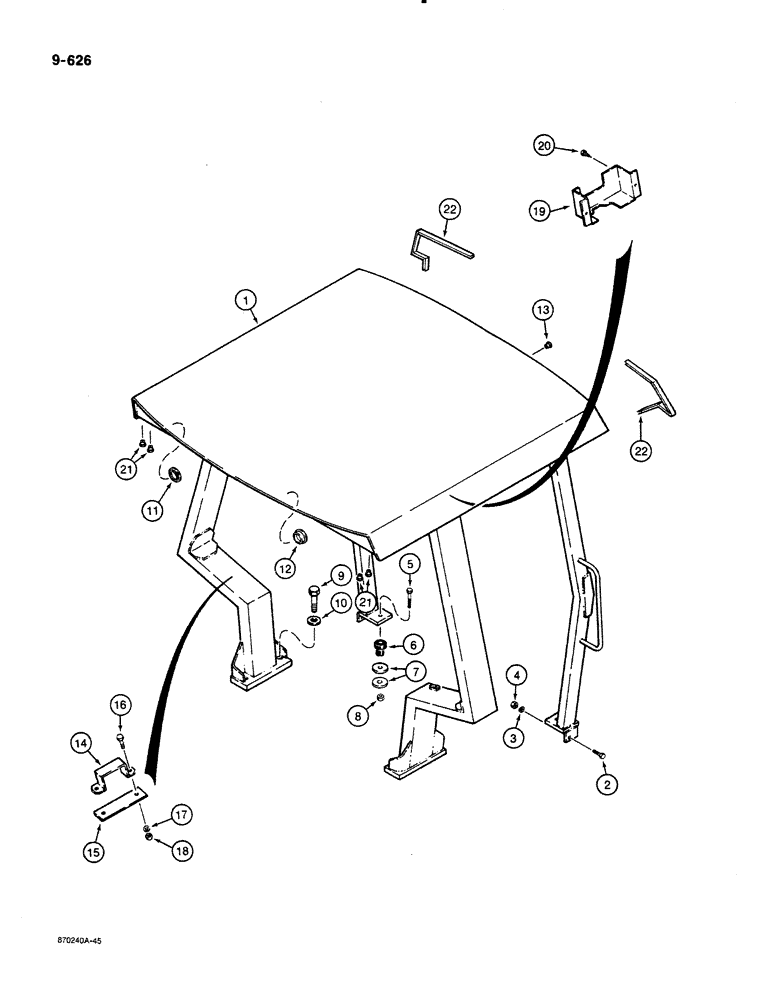

Запчасти Case 580K (09-626) - ROPS CANOPY (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

ROPS CANOPY machinery item, order from Machinery Price List

1шт.

ROPS CANOPY, this item is no longer available thru wholegoods. Order P/N D104591, which now subs to its primes. P/N D104591 replaces P/N D103145.

1шт.

2

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Attaches canopy to front corner of floor plate Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

5

23061R1

BOLT,Hex, 5/8" - 11 x 4", Gr 8

hex head, 5/8" - 11 NC x 4", plated, mounts canopy to floor plate

2шт.

6

D138565

SHOCK ABSORBER

INSULATOR frame mounting

4шт.

7

D89007

WASHER

flat, 5/8", hardened, special

2шт.

8

129-183

NUT,5/8"-11, G8

2шт.

9

26-1452

BOLT,Hex, 7/8" - 9 x 3-1/4", Gr 8

hex head, 7/8" - 9 NC x 3-1/4", grade 8, rear ROPS post mounting to fenders

4шт.

10

196-35

WASHER,15/16" x 1 3/4" x .134", HDN

flat, 7/8", hardened

4шт.

11

205-72

HOLE PLUG BUTTON,3"

PLUG button, , 76 mm, diameter, steel, if used 3"

4шт.

12

353-417

PLUG,Dome, 2.000" hole, Nylon

nylon, 2", 51 mm, diameter, if used

8шт.

13

353-405

PLUG,Dome, .562" hole, Nylon

nylon, 9/16", 14 mm, diameter, if used

4шт.

14

D136652

BRACKET

support, Serial Range: mounts-fenders

2шт.

15

D136653

PLATE

support bracket, mounts under fender

2шт.

16

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

19

D132337

COVER

wiring

1шт.

20

187-1090

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW hex washer head, self-tapping, No. 10 - 24 x 5/8", blunt point, plated

2шт.

21

353-405

PLUG,Dome, .562" hole, Nylon

nylon, 9/16", 14 mm, diameter

4шт.

22

D60180

STRIP

TRIM edge, 14-1/2" long

2шт.
