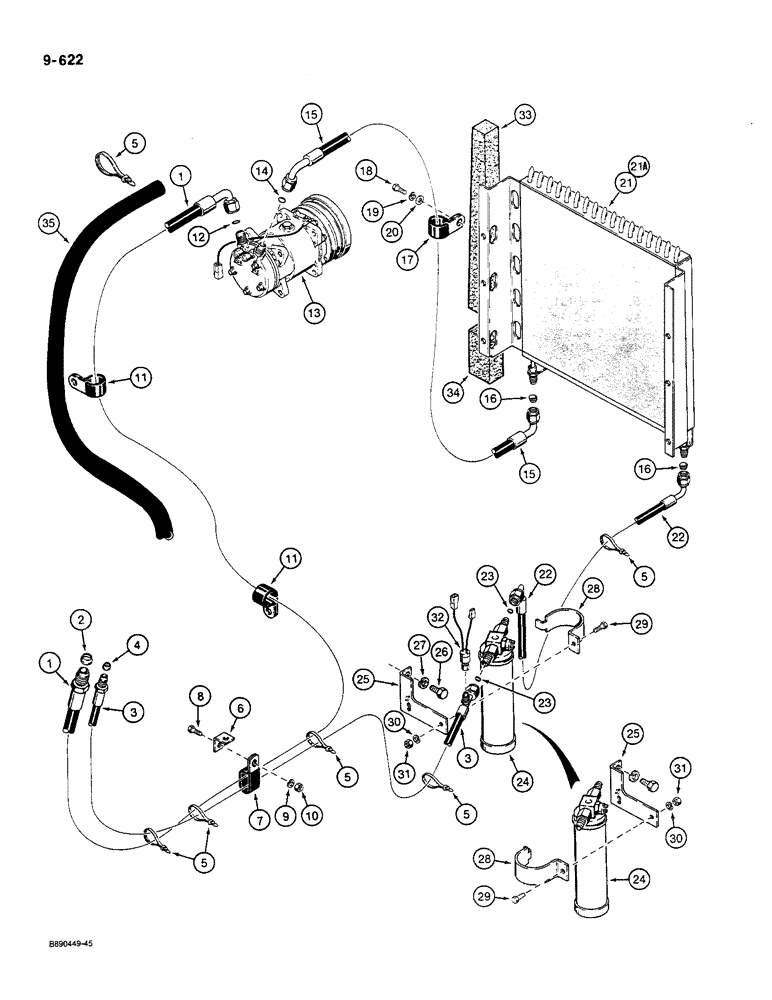

Запчасти Case 580K (09-622) - CONDENSER, RECEIVER-DRIER AND AIR CONDITIONER LINES (09) - CHASSIS/ATTACHMENTS

1

D131559

HOSE

135-7/8", 3450 mm, long, Serial Range: cab-compressor

1шт.

2

222-996

GASKET,3/4 Tube, Fl, Copper

copper, 3/4", 19 mm

1шт.

3

D131564

HOSE

104-3/8", 2650 mm, long, Serial Range: receiver-drier-cab

1шт.

4

222-993

GASKET,3/8 Tube, Fl, Copper

(9 mm) 3/8 Tube, Fl, Copper

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

5-6шт.

6

D126742

BRACKET

use existing loader lift tube mounting bracket bolt on chassis

1шт.

7

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

double tube

1шт.

8

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

10

9635082

NUT,5/16" - 18, Gr 5

1шт.

11

84183C1

CLAMP

hose, uses existing hardware on air cleaner mounting plate to uprigh and torque converter housing

1-2шт.

12

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

cab to compressor hose at compressor inlet

1шт.

13

A177068

AIRCOND. COMPRESSOR

ASSEMBLY air conditioning, see Figure 04-094, see Figure 04-098 for mounting parts

1шт.

A177068R

REMAN-A/C COMPRESSOR

580K

1шт.

A177068C

CORE-DISTRIB KIT-FUE

Return Number

1шт.

14

A8613

O-RING,0.426" ID x 0.566" OD

compressor to condenser hose at compressor outlet

1шт.

15

D131560

HOSE

51-3/16", 1300 mm, long, Serial Range: compressor-condenser

1шт.

16

222-993

GASKET,3/8 Tube, Fl, Copper

(9 mm) 3/8 Tube, Fl, Copper

2шт.

17

D41564

hose

1шт.

18

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

20

195-521

WASHER,5/16", SAE

flat, 5/16", plated

1шт.

21

A184213

CONDENSER

coil, refrigerant cooler, uses existing oil cooler to radiator hardware, no longer used, for service order A184971 condenser

1шт.

21a

A184971

RADIATOR

CONDENSER coil, refrigerant cooler, uses existing oil cooler to radiator hardware

1шт.

22

D131562

HOSE

33-1/2", 850 mm, long, Serial Range: condenser-receiver-drier

1шт.

23

A61198

O-RING,0.07" Thk x 0.301" ID, -11

hose, at reciever-drier

2шт.

24

A76312

RECEIVER-DRYER

RECEIVER-DRIER air conditioner

1шт.

25

D131563

BRACKET

receiver-drier mounting to engine, may be mounted on left-hand or right-hand side of receiver-drier

1шт.

26

814-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

hex head, 12 mm - 1.75 x 16 mm, 8.8, plated

2шт.

27

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

28

A61193

CLAMP

receiver-drier to mounting bracket, may be mounted on left-hand or right-hand side of receiver-drier

1шт.

29

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

30

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

31

9635082

NUT,5/16" - 18, Gr 5

1шт.

32

A65779

SWITCH

high pressure cutout, attaches to engine harness

1шт.

33

D140840

FOAM

BAFFLE base size is 2-3/16", 55 mm, x 17-3/4", 450 mm, high, cut from D92228 bulk pad, see below

2шт.

34

D140841

FOAM

BAFFLE base size is 2-3/8", 60 mm, x 3-15/16", 100 mm, high, cut from D92228 bulk pad, see below

2шт.

35

D134728

TUBE

SLEEVE hose guard, models with turbocharged engine

1шт.

D92228

BAFFLE

bulk pad, 35-1/2", 900 mm, x 55-1/8", 1400 mm, x 1-1/2", 38 mm, use to cut Ref. 33 and 34

1шт.

345-44

ADHESIVE

spray can, for attaching foam pads to metal surfaces

1шт.
